C51
Tea bag packaging

The C51 produces heatsealed, single-chamber bags without string and tag at speeds of up to 2000 bags/minute. Perfect for black tea and herbs, it ensures unrivalled reliability in the production of square, round or rectangular bags.

The C51 produces heatsealed, single-chamber bags without string and tag at speeds of up to 2000 bags/minute. Perfect for black tea and herbs, it ensures unrivalled reliability in the production of square, round or rectangular bags.

The machine that never stops.

The C51 is a high-performance packaging solution for naked, single-chamber, heatsealed, round, square and rectangular bags, reaching speeds of up to 2000 bags/minute. Despite exceptionally high processing speeds, teabag seams are perfectly sealed and free from any product residue.

The C51 produces joined pairs of teabags separated with perforations or ready-to-use single bags. Also available are family-size teabags with a capacity of up to approx. 28 g.

Integration with different final packaging solutions includes an automatic carton attachment using flat blanks, a horizontal flow-pack packaging unit, as well as a conveyor exit for hand removal and further packaging into cartons, polythene bags or other options.

Specific product control devices monitor production constantly and intervene directly to remove faulty packages without stopping the machine.

nature_people

Sustainability

The C51 allows the use of sustainable packaging materials for a complete eco-friendly package.

IMA Tea & Herbs
settings_applications Production Plant
IMA Tea & Herbs

C51 Highlights

1.
Highest performance and maximum efficiency at speeds of up to 2000 bags/minute.
2.
Flexibility both in terms of teabag shape/size and carton style/size.
3.
Free to choose the desired final packaging solution between cartons, flow-packs and bulk bags.
4.
Flow-packs are practical, fully waterproof and provide exceptional versatility in terms of size and material (cellophane, polypropylene, laminate and cold-sealable), and represent an economical alternative to cartons.
5.
Packaging material automatic splicing: no processing speed reduction, greater efficiency, one operator can manage more than one machine.
6.
Automatic weight control and adjustment to optimise product feeding and dosing. Ensures removal of faulty packages.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C51
Machine speed (bags/minute) Up to 2,000
Bag capacity Up to aproximately 28.4 grams black tea
Power required Total installed power 12.3 kW
N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air (without outer envelope)

DUTY pressure: 6 bar

Consumption: 75 Nl/min.

Air supply connection: Ø 3/8 gas

Lubrification The machine is provided with an automatic and centralized lubrication system
Machine net weight Max 4,200 Kg

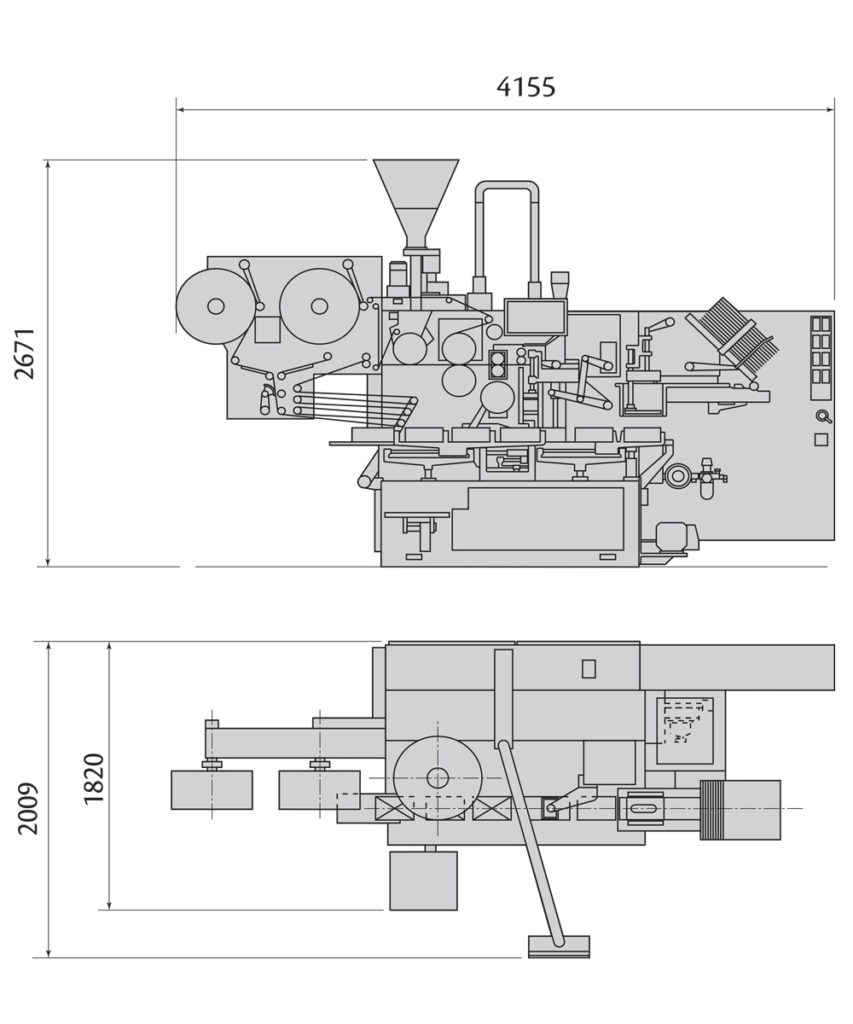

C51 Layout

C51 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Still life tea bag packaging
search
Filter paper automatic splicing
search
Round bag cut and detaching
