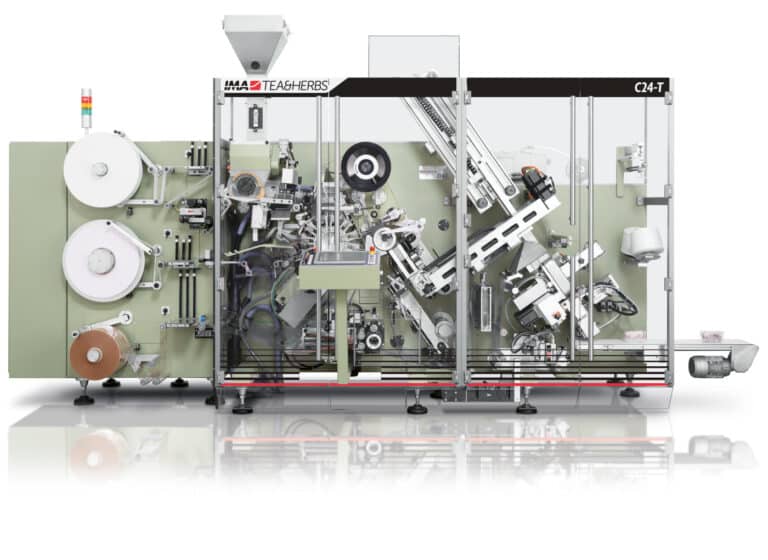

C24-T
Tea bag packaging

A cost-effective, highly reliable solution with a compact footprint, ensuring excellent productivity, the C24-T is a high-speed option for naked bags only, free-flowing products or black tea.

A cost-effective, highly reliable solution with a compact footprint, ensuring excellent productivity, the C24-T is a high-speed option for naked bags only, free-flowing products or black tea.

Simply incomparable

The technology behind the C24-T derives directly from the sophisticated C24-E version, providing a highly efficient, cost-effective solution exclusively for knotted naked tea bags and free-flowing products.

Easily integrated into existing lines where end-of-line packaging is taken care of separately, the C24-T reaches speeds of up to 400 bags/minute and works in conjunction with a simplified automatic cartoning attachment for pre-erected cartons. Carton closing can be processed according to needs and availability.

Mechanical single bag rejection and conformity control via a video camera to check correct knotting ensure constant product quality without unwanted interruptions to the packaging process. The equipment can be set up to accept an external weight control and adjustment device if required.

An on-board PC constantly monitors the process and keeps production efficiency at unrivalled levels for what is a cost-effective, high-speed machine.

nature_people

Sustainability

Absence of an aluminium staple and use of natural cotton fibre and chemical-free filter paper.

IMA Tea & Herbs
settings_applications Production Plant
IMA Tea & Herbs

C24-T Highlights

1.
High production speed: up to 400 bags/minute.
2.
Knot technology: environmentally friendly thanks to absence of metal staple.
3.
Mechanical single bag rejection: less compressed air consumption, less tea dust on machine.
4.
Easy integration into existing production lines.
5.
Can be equipped with an automatic cartoning attachment for pre-erected cartons in 1 to 4 rows.
6.
Easy connection to downstream units for end-of-line packaging.
7.
Knot conformity constantly controlled via video camera with dedicated display.
8.
PC-controlled, motor-driven safety guards: fast opening/closing to required height.
Can be fitted with a versatile automatic cartoning attachment for a wide variety of pre-erected cartons in 1 to 4 rows. These include tuck-in, Kurzlaschen, caddy style and tear strip cartons, as well as open trays. Additional groups such as a cardboard ***
  • Technical Data
  • Machine Layout
TECHNICAL DATA C24 T
Machine speed (Bags/minute) Up to 400 naked bags
Tea bag capacity up to aproximately 3.0 grams
Filter bag maximum volume 9.5 cubic centimeters
Power required

Total installed power: 17 kW
Average power consumption: 2.8 kW
Maximum power consumption: 3 kW

N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air

Exercise pressure: 6 bar
Consumption: up to max 370 Nl/min.

Machine net weight Max. 3,200 Kg for machine with cartoning attachment
C24-T Layout

C24-T Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Tea bag packaging
search
Carton
search
Mechanical single bag rejection
search
Camera for filter bag conformity control
search
Simplified dosing unit for black tea and free-flowing products
