C24-IQ
Tea bag packaging

Born to be the fastest teabag packaging machine for the production of the IMA iconic knotted teabag, the new C24-IQ offers the very latest technologies achieving top efficiency performance.

Born to be the fastest teabag packaging machine for the production of the IMA iconic knotted teabag, the new C24-IQ offers the very latest technologies achieving top efficiency performance.

INTELLIGENCE TALKS

Reaching up to 450 bags per minute, in any configuration, it encompasses an outstanding compact and clean design guaranteeing a substantial reduction of overhanging parts and therefore a consequent extraordinary decrease in cleaning operations. The new C24-IQ encompasses the most innovative technological and digital features with the precise aim to improve accessibility for daily operations and cut replacement and adjustment time losses. Based on an intelligent and predictive maintenance management platform, the new C24 IQ is aimed to “talk” to the operator by monitoring and anticipating functionality troubles or required operations, thus enhancing a prompt and effective intervention.
• Naked bags , crimped or sealed outer envelope
• Newly conceived , compact and flexible cartoning attachment from 1 to 4 rows pre erected and flat blanks cartons

nature_people

Sustainability

The C24-IQ allows the use of sustainable packaging materials for a complete eco-friendly package.

IMA Tea & Herbs
settings_applications Production Plant
IMA Tea & Herbs

C24-IQ Highlights

1.
Top speed up to 450 bags/minute in a compact design
2.
Maximum packaging style flexibility
3.
Easy cleaning operations
4.
Ruduced machanical moving parts
5.
Outstanding accessibility for daily operations
6.
Advanced single bag rejection system
7.
Easy part replacement, no adjustment required
8.
Optimized latest generation H.M.I.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C24-IQ
Machine speed (Bags/minute) 450
Tea bag capacity Up to aproximately 3.0 grams
Filter bag maximum volume Max. 9.5 cubic centimetres
Power required

Total installed power 25 kW
Maximum power consumption: 15 kW

N.b. Power consumption depends on the thermic groups fitted in the machine
Compressed air

Exercise pressure: 6 bar
Consumption: up to max 350 Nl/min.

Machine net weight Max. 3600 Kg for crimped/heatsealeds outer envelope with cartoning unit

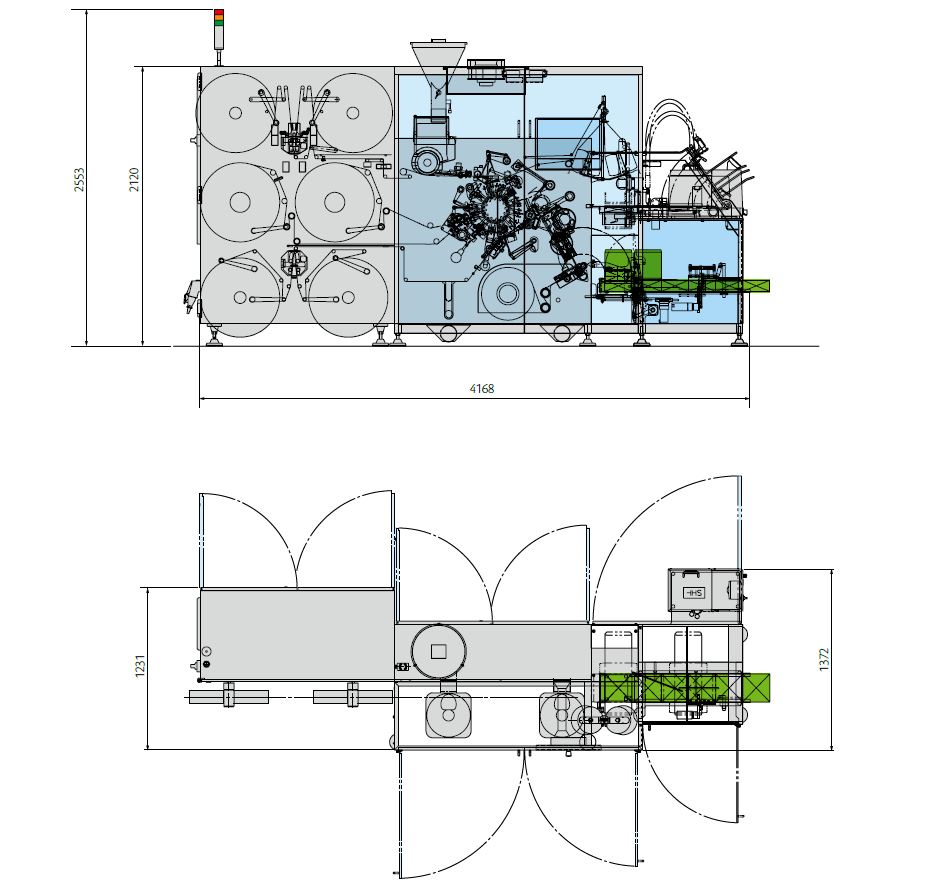

C24-IQ Layout

C24-IQ Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product dosing
search
Filter bag erection
search
Filter bag top folding
search
Cotton thread positioning around filter bag
search
Knotting group
search
Outer envelope head sealing
search
Knot conformity control through camera
search
Bag counting and stacking
search
Carton forming
search
Carton filling
search
Carton gluing and closing
