3701 / 3711
Over wrapping machine

3701 / 3711 equipment is the ideal solution for complete over wrapping of parallelepiped products such as cosmetic and toiletry items, with cellophane, PVC, PP and all reel-fed, heat-sealable film types, even extremely thin.

3701 / 3711 equipment is the ideal solution for complete over wrapping of parallelepiped products such as cosmetic and toiletry items, with cellophane, PVC, PP and all reel-fed, heat-sealable film types, even extremely thin.

High quality individual or multiple over wrapping for regular product.

Complete with a device to lift the film-driving rollers during product elevation, these machines enable the use of extremely thin films and avoid the film sliding around the product, thus obtaining the perfect over wrapping finish.

Designed to facilitate cleaning procedures, the equipment uses standard Siemens electrical componentry and a Siemens PLC. The steel frame is oil-tight and lubrication is by means of oil bath.

Production for the 3701 stands at 130 cycles/min, while the 3711 reaches 110 cycles/min handling somewhat larger sized products.  Changeover procedures are fast and easy, so as to avoid unwanted downtime.

IMA BFB
settings_applications Production Plant
IMA BFB

3701 / 3711 Highlights

1.
Film print unit available.
2.
Additional reel holder available.
3.
Tear tape unit available.
4.
Wheel available to facilitate machine displacement.
5.
Film unwinding by driven drums to move film under guillotine knife.
6.
Several different sealing unit available.
  • Technical Data
  • Machine Layout
TECHNICAL DATA 3701 / 3711
Wrapping film CELLOPHANE, PVC, PP, PE, KRAFT
Product dimensions  A B C
3701 Min. 40 23 60
Max. 125 90 220
Max. speed 130
3711 Min. 40 23 60
Max. 175 90 270
Max. speed 110

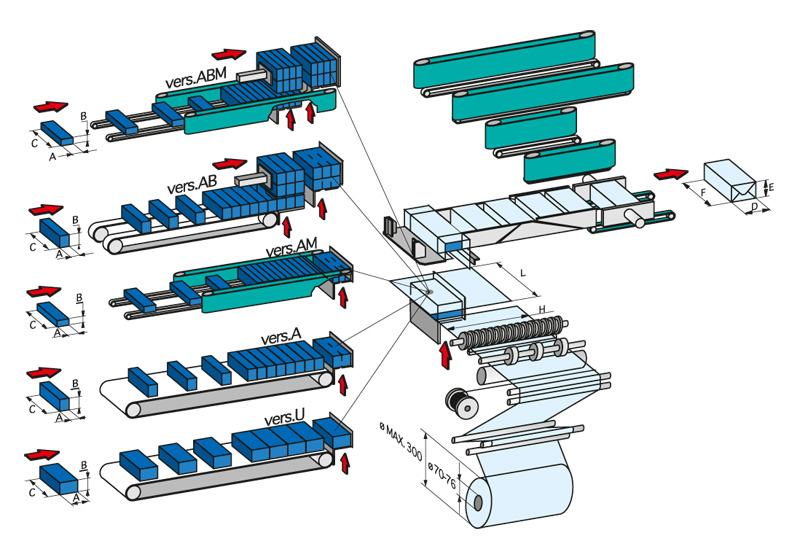

3701 / 3711 Layout 3701 / 3711 Layout
