ZANASI and ZANASI PLUS
Capsule fillers

Designed in the 1970s, ZANASI and ZANASI PLUS are IMA’s first automatic capsule fillers to have made history. Still sought-after for their simple configuration, they offer maximum versatility in terms of combined dosing within the same capsule.

Designed in the 1970s, ZANASI and ZANASI PLUS are IMA’s first automatic capsule fillers to have made history. Still sought-after for their simple configuration, they offer maximum versatility in terms of combined dosing within the same capsule.

The capsule fillers that made history.

ZANASI and ZANASI PLUS are able to dose powder, pellets, tablets, microtablets and liquids into hard gelatine capsules, depending on machine configuration and installed dosing units. And the hallmark of these machines is their user-friendliness appreciated by operators.

IMA Active
settings_applications Production Plant
IMA Active

ZANASI and ZANASI PLUS Highlights

1.
Combined dosing of various products with excellent results in terms of dosing accuracy and speed.
2.
Easy access to the working area.
3.
Ergonomic interface: skilled operators are not required to run this machine.
4.
Low size changeover and cleaning times.
  • Technical Data
  • Machine Layout
TECHNICAL DATA ZANASI
Model ZANASI 6 ZANASI 12 ZANASI 25 ZANASI 40
Maximum output (capsules/hour) 6,000 12,000 25,000 40,000
Number of capsules per cycle 1 2 4 6
Capsule size 000-5, supro A-E, DB, DBAA
Maximum installed power (kW) 10
Aspiration 3,850 litres/minute – 2,500 mm H₂O
Compressed air 30 dm³/min – 6 bar 50 dm³/min – 6 bar 100 dm³/min – 6 bar
Vacuum 40 m³/h – 3 mbar 100 m³/h – 3 mbar
Standard voltage 230/400 V (±10%) – 50/60 Hz
Weight (kg) 1,000



TECHNICAL DATA ZANASI PLUS
Model ZANASI PLUS 16 ZANASI PLUS 48 ZANASI PLUS 70
Maximum output (capsules/hour) 16,000 48,000 70,000
Number of capsules per cycle 2 6 9
Capsule size  000-5, supro A-E, DB, DBAA   00-5, supro A-E, DB, DBAA
Maximum installed power (kW) 8 14
Aspiration  3,200 litres/minute – 2,400 mm H₂O  4,600 litres/minute – 3,100 mm  H₂O
Compressed air 100 dm³/min – 6 bar
Vacuum 100 m³/h – 3 mbar
Standard voltage 230/400 V (±10%) – 50/60 Hz
Weight (kg) 1,000 1,100 1,200

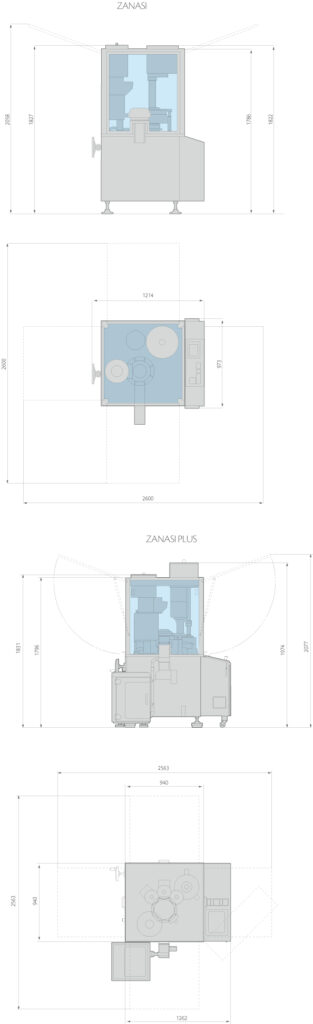

ZANASI and ZANASI PLUS Layout

ZANASI and ZANASI PLUS Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Capsule orientation
search
Capsule presence control
search
Powder dosing
search
Working area
search
Capsule exit and bushing cleaning
search
Vacuum bowl
