XTREMA
High Speed Filling & Stoppering Machine
The main concern of the pharmaceutical packaging market has always been the integrity of the drug, and, in the case of parenteral dosage forms, its sterility. XTREMA indeed embodies the latest technological breakthrough in aseptic filling.
The main concern of the pharmaceutical packaging market has always been the integrity of the drug, and, in the case of parenteral dosage forms, its sterility. XTREMA indeed embodies the latest technological breakthrough in aseptic filling.
eXperience the eXtreme
During the aseptic filling of dose containers with a drug, essential is preventing its contamination, thus minimising its exposure to environment, equipment, manipulation from operators, etc., until its sealing.
XTREMA fundamental characteristics respond to the industry’s stringent technical requirements of vial filling, and with its flexible and ergonomic design it assures the most complete possibility to integrate modular equipment, and, why not, even to install multiple filling systems (liquids & powders) to be used alternatively within the same machine frame.
settings_applications
Production Plant
IMA Life
XTREMA Highlights
1.
Ergonomic displacement of operating groups
2.
Geometry facilitating the unidirectional air flow (UAF)
3.
Ideal to be exposed to VPHP (Hydrogen Peroxide in Vapour Phase)
4.
Machine completely sealed and no tools required for size change over
5.
Output up to 600 vpm
6.
Machine with continuous/intermittent motion selectable from HMI
7.
100% check-weighing system at 600 vpm and anthropomorphic robotized nozzle carrier
8.
New liquid dispensing pumps with revolutionary assembly technique
XTREMA is your filler for product loss minimisation at high speed -100% IPC (check-weighing sampling)- up to 600 vpm. And, with the “Quick Fit” feature of the filling pumps -CIP/SIP ready-, no tools are needed nor to get in touch with product contact parts.
- Technical Data
- Machine Layout
| TECHNICAL DATA XTREMA | ||
| Min. | Max. | |
| Vial diameter | 14 mm | 54 mm |
| Vial height | 30 mm | 110 mm |
| Stopper diameter | 13 mm | 33 mm |
| Filling dosing unit | up to 15 | |
| Filling volume | 0.10 – 100 mL | |
| Output | Up to 600 vpm | |
| Output with 100% IPC | Max. 600 vpm | |
| Transport system |
Intermittent motion Continuous motion Intermittent/Continuous motion |
|
XTREMA Gallery
keyboard_arrow_left
keyboard_arrow_right
search

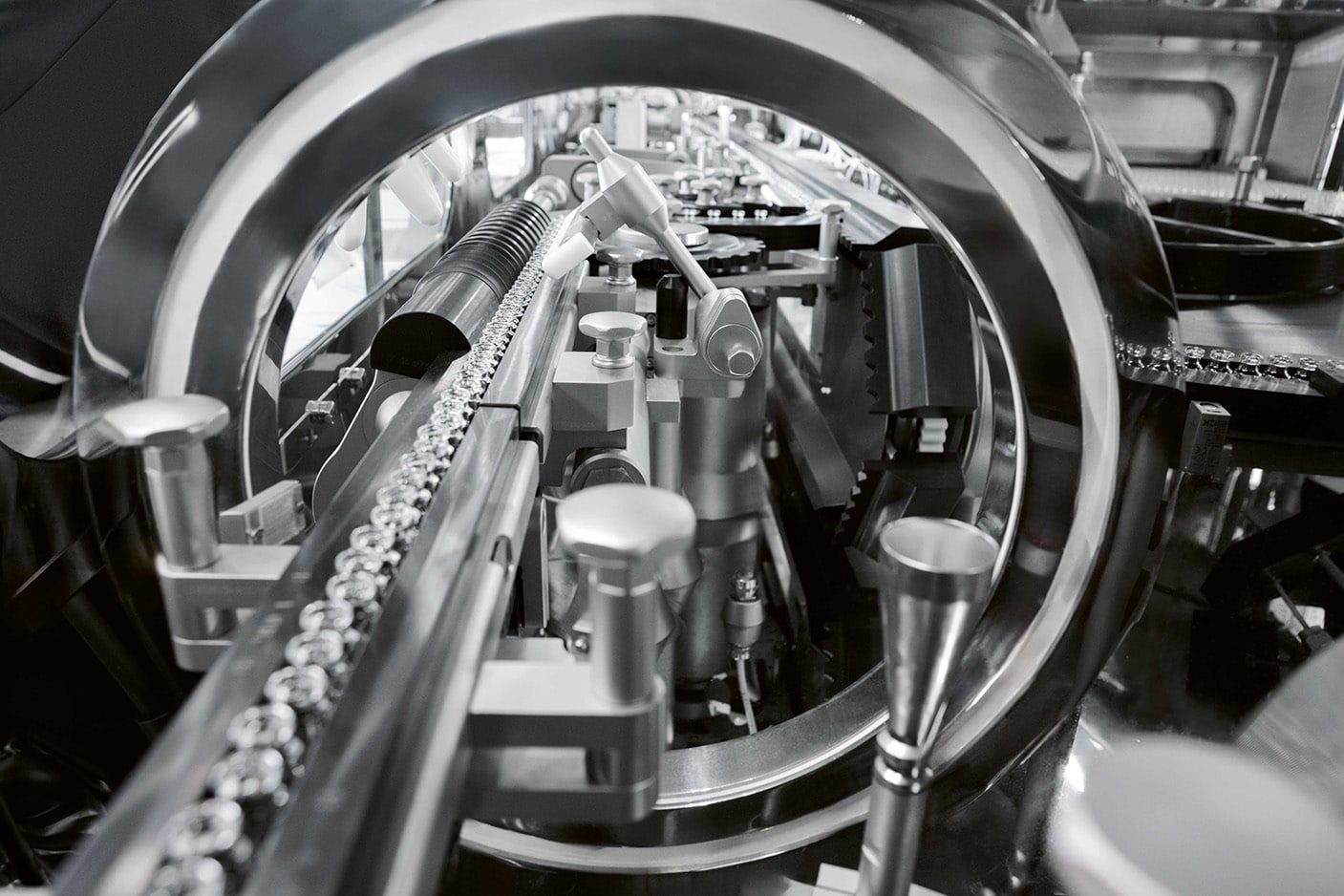

Infeed sector starwheel
search
Differential pumps overview
search
Differential pumps side view
search
Filling up to 15 peristaltic pumps
search
100% IPC, net weighing
search
Statistical gross weighing
search
Stoppering overview
search
Outfeed and rejection
search
Filling with peristaltic pumps
search

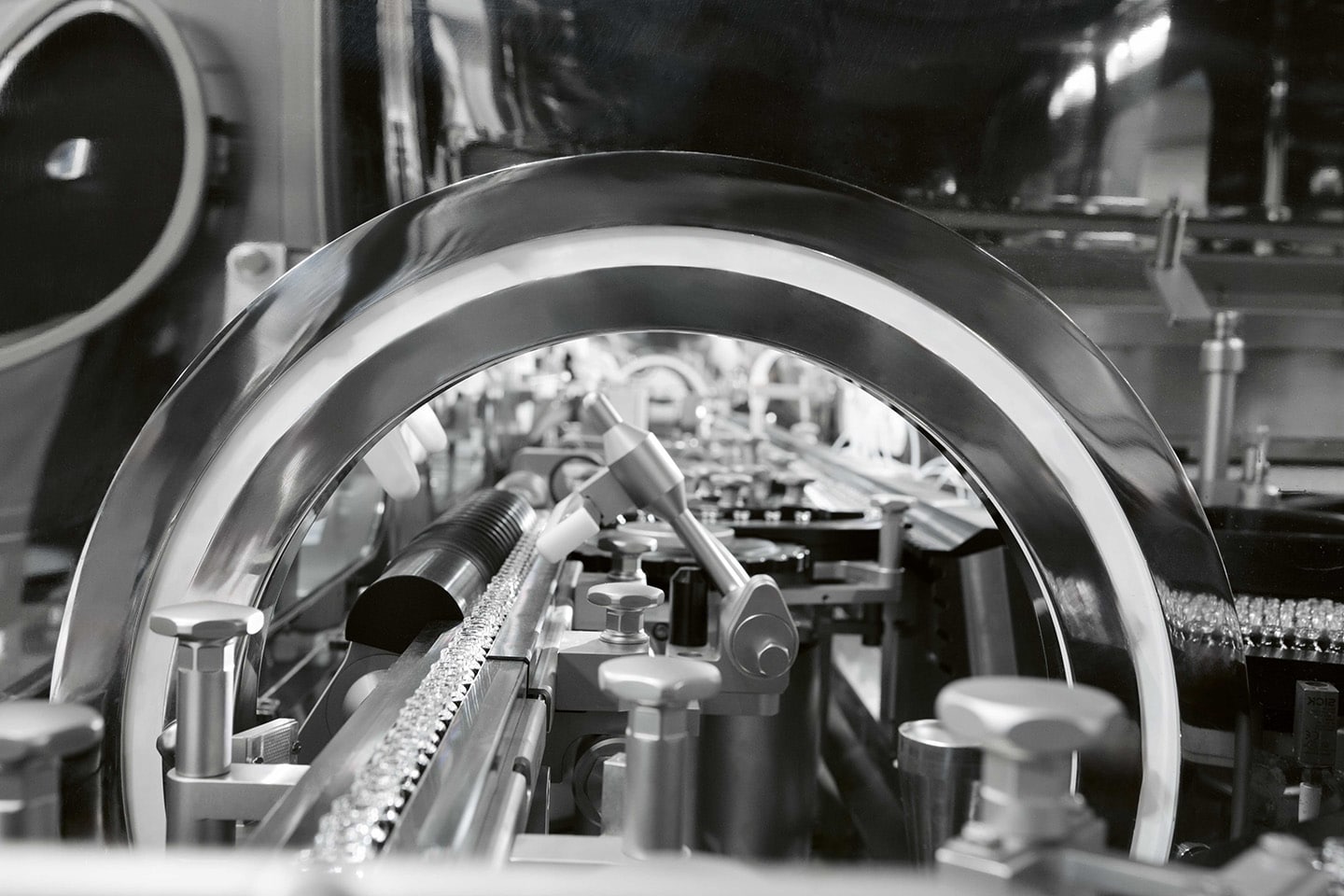

Isolated line with Xtrema-internal view
search
Anthropomorphic arm overview
