FIXED AND FLEXIBLE LOADING SYSTEMS
Automatic Vial Loading & Unloading Systems

The aim of advanced aseptic processing is the elimination and absolute control of all sources of human contamination.
IMA Life’s fully automated vial fixed and flexible loading systems are the right technologies to advance this initiative further.

The aim of advanced aseptic processing is the elimination and absolute control of all sources of human contamination.
IMA Life’s fully automated vial fixed and flexible loading systems are the right technologies to advance this initiative further.

Tailored Solutions for Tomorrow’s Needs

IMA Life loading systems, with their compact footprint, are extremely flexible to meet most demanding integration and interface requirements with freeze dryers, upstream and downstream machines.

The freeze-dryer is loaded or unloaded one shelf, one row or several rows at a time with vials at a constant level. All systems are frameless and can be fixed (CLU and MINILOADER), flexible (TCAR, LAT, LUAT and UAT) or mixed (combination of fixed and flexible solutions). The fixed vial loading/unloading systems consist of a conveyor integrated with the outfeed of the filling line, which transports vials to a loading/unloading station installed opposite the freeze dryer during the loading phase. The flexible vial loading/unloading systems use “transporters” to serve multiple freeze dryers.

IMA Life is one of the few suppliers in the world that designs, manufactures and tests a full range of proven systems for fully automatic loading and unloading of vials into industrial freeze-dryers.

IMA Life
settings_applications Production Plant
IMA Life

FIXED AND FLEXIBLE LOADING SYSTEMS Highlights

1.
Loading speed up to 600 vials/min.
2.
Quality sanitary design: VPHP (Vaporized Hydrogen Peroxide) compliant.
3.
Full Modular Design Technology (MDT) approach.
4.
Pre-arranged for cRABS and isolator applications.
5.
Excellent integration with freeze dryers, upstream and downstream machines.
6.
Fixed, flexible and mixed configurations available.
7.
Operational costs and process time considerably reduced.
IMA Life loading systems, with their compact footprint, are designed to be extremely flexible to meet most demanding integration and interface requirements, even supporting non-IMA Life freeze-dryers.
  • Technical Data
  • Machine Layout

tbd

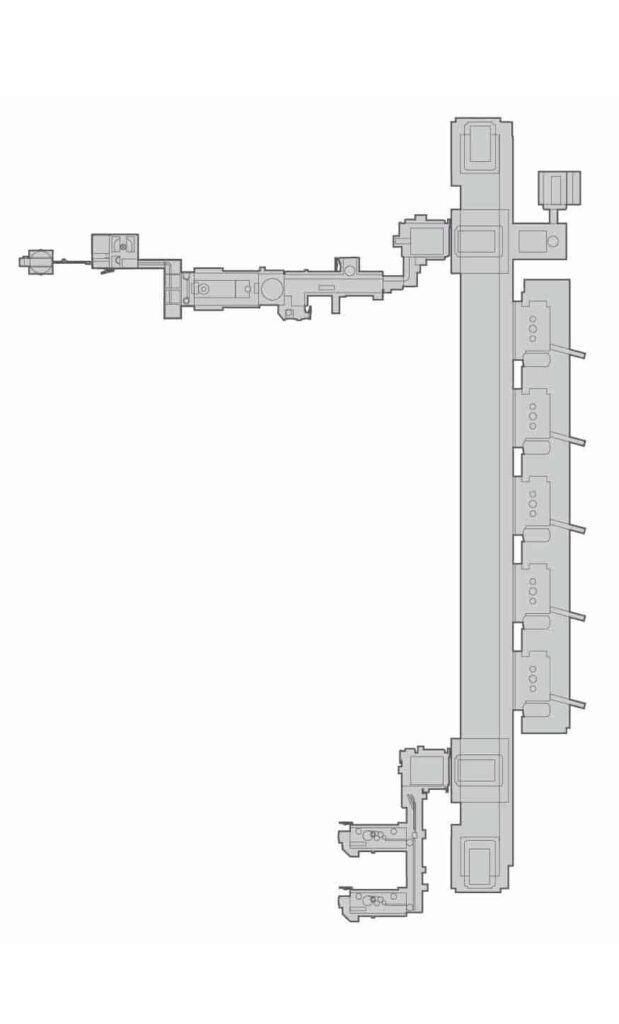

FIXED AND FLEXIBLE LOADING SYSTEMS Layout

FIXED AND FLEXIBLE LOADING SYSTEMS Gallery

keyboard_arrow_left
keyboard_arrow_right
search

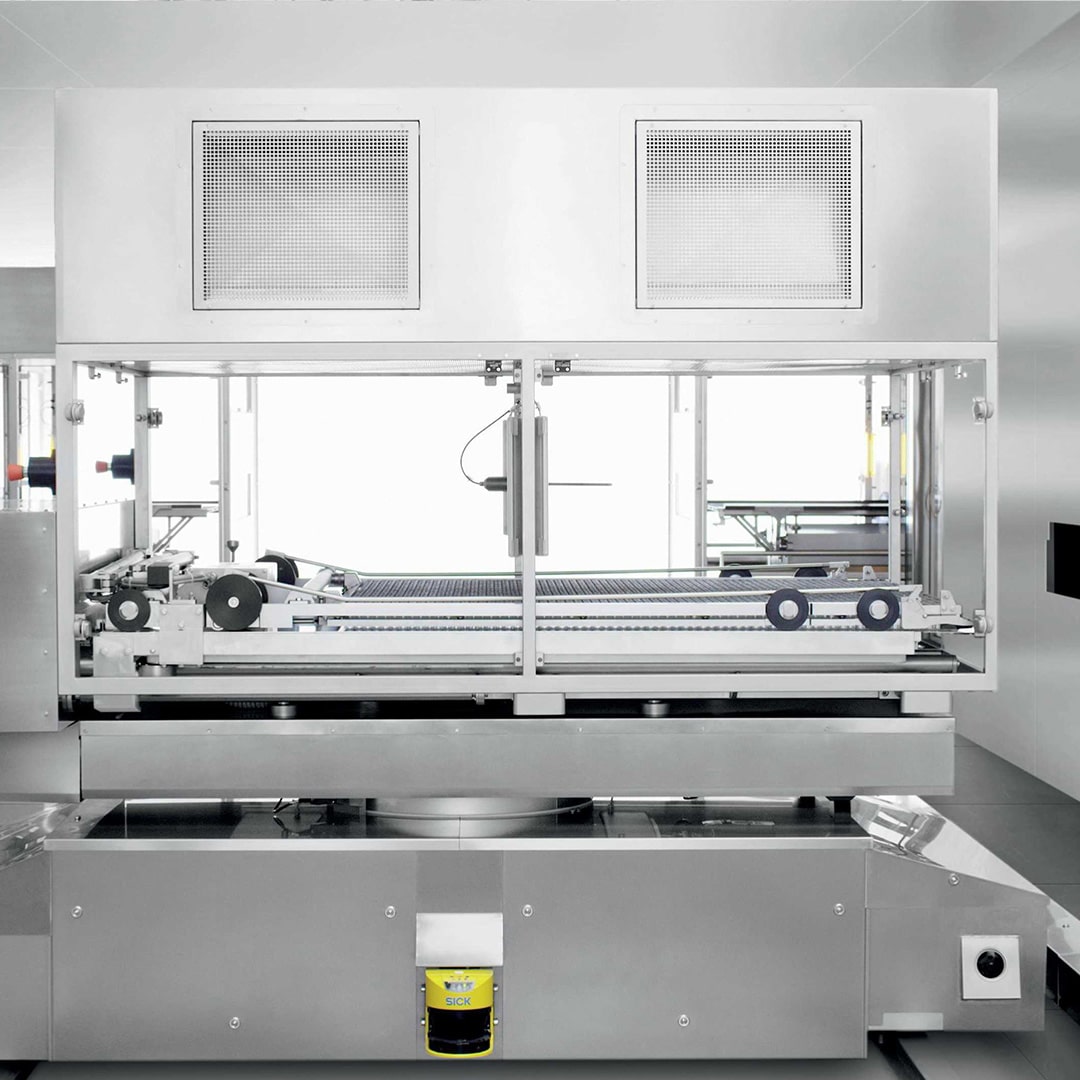

Fixed vial loading & unloading system overview
search

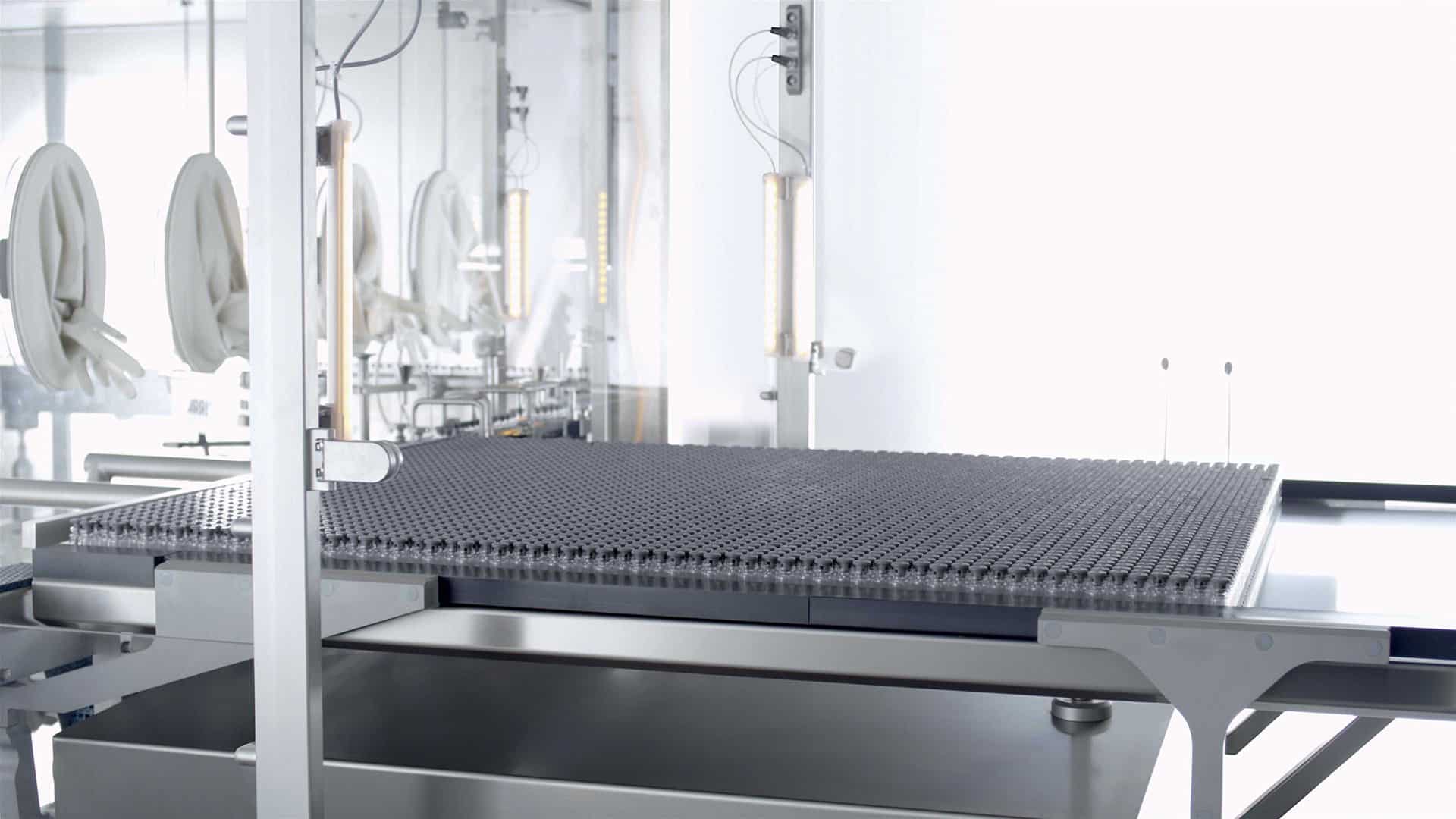

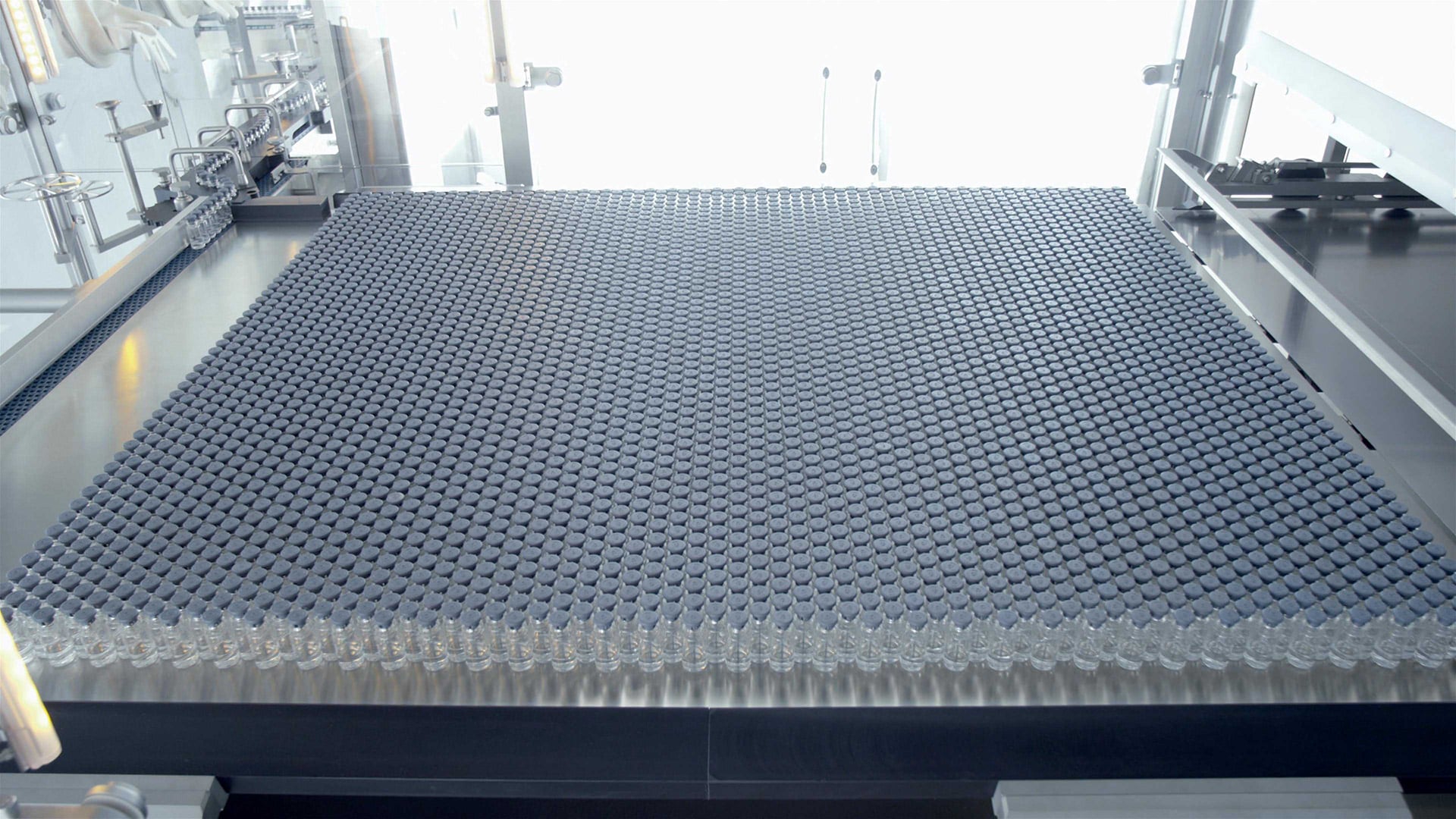

Vial loading detail
search
Bridge plate disconnection
search
Crossing section_right loading
search
Vial diverter, vial flow to left conveyor
search
Vial diverter, top view
search
Vial outfeed
search

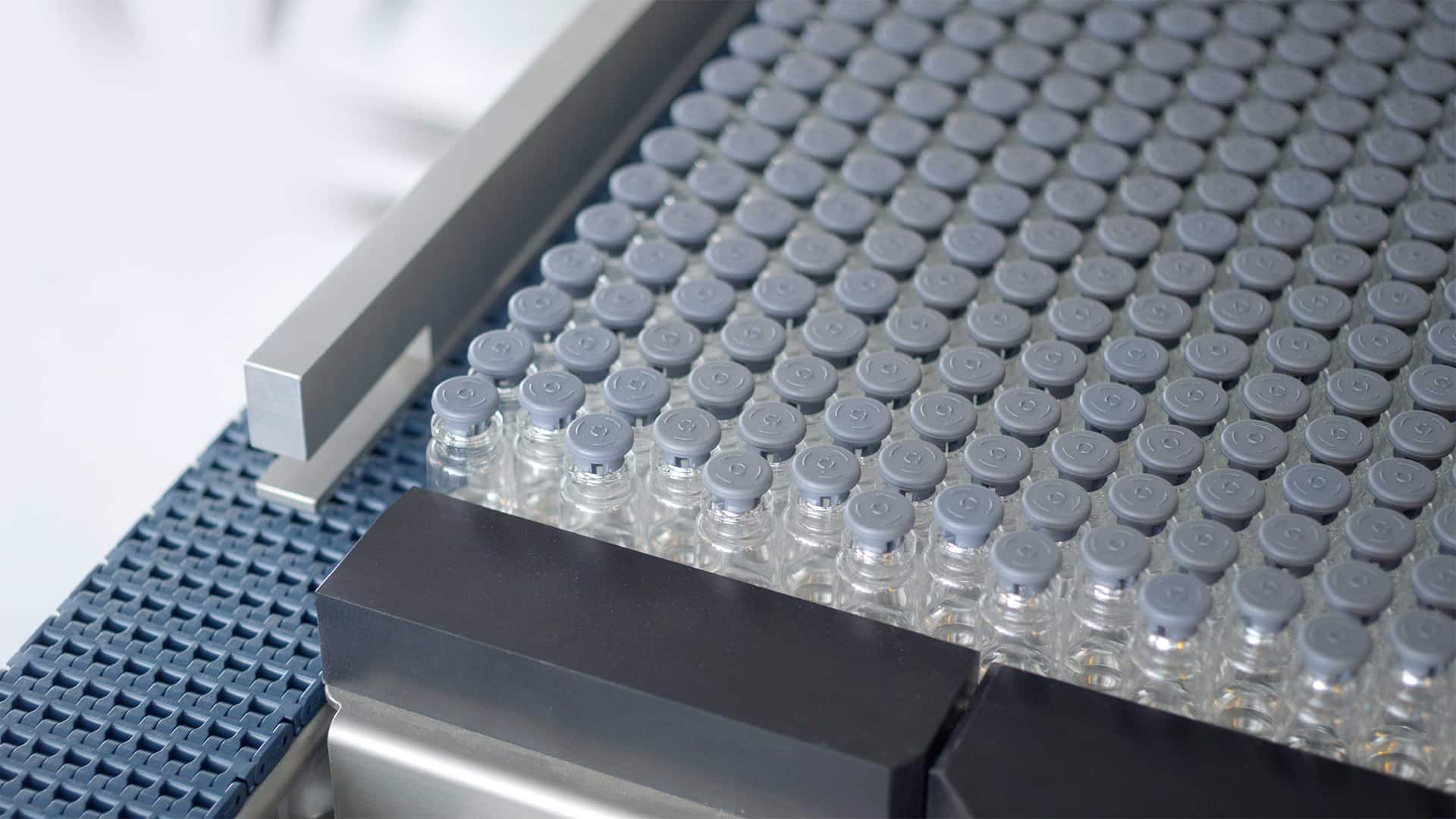

Compact single liner top view
search

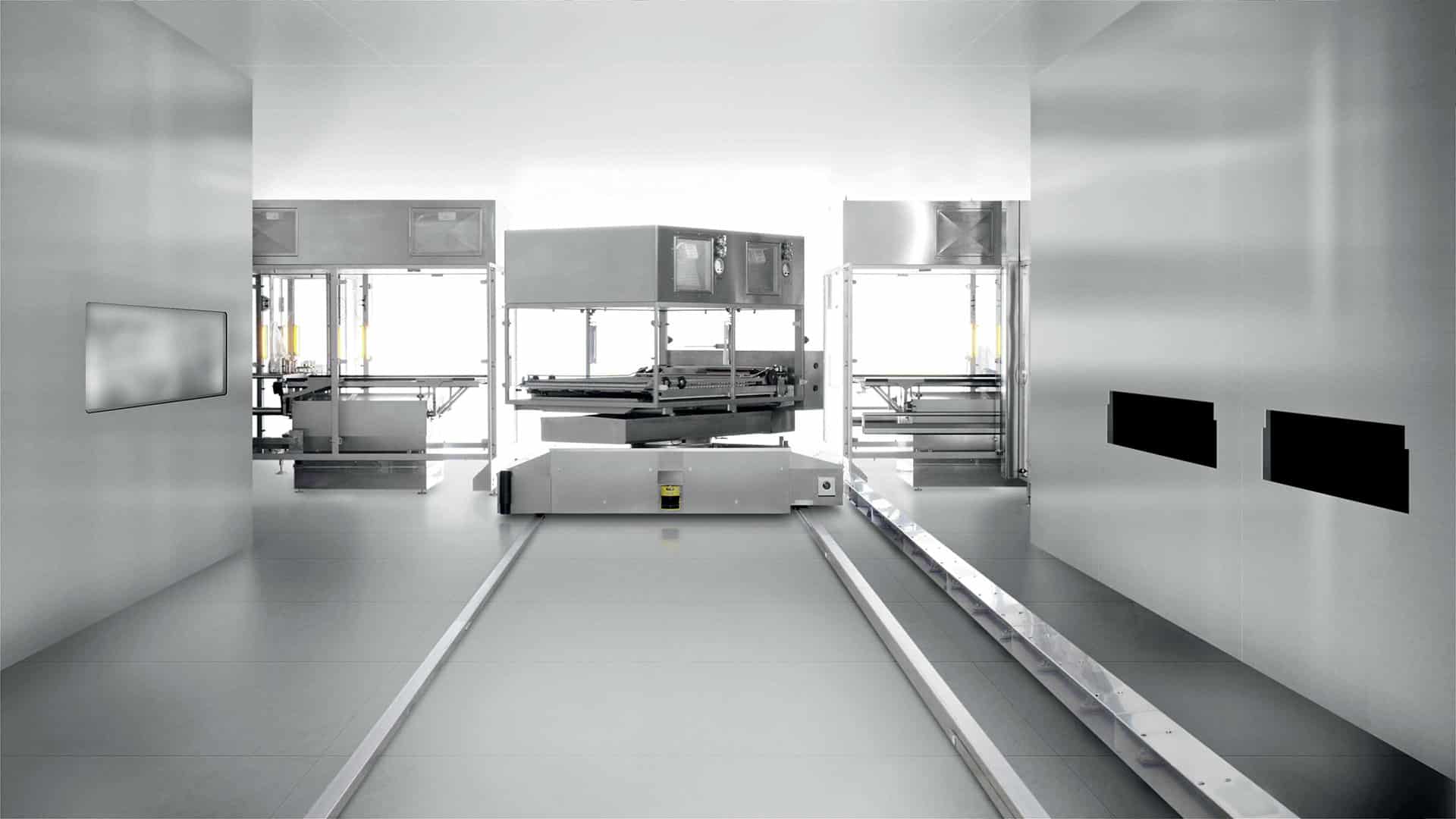

TCAR and Loading/Unloading Accumulation Tables overview
search
Vial loading, internal view from an isolated filling line
