VERTICARE P
Vertical Cartoner

Designed to pack the widest range of products, VERTICARE P, allows for an extremely gentle handling of all components of the package through the entire packaging process. The 360° accessibility of the machine simplifies the cleaning and format changeover.

Designed to pack the widest range of products, VERTICARE P, allows for an extremely gentle handling of all components of the package through the entire packaging process. The 360° accessibility of the machine simplifies the cleaning and format changeover.

Fast, simple and exceptionally gentle to take care of your packaging.

VERTICARE P is able to package products such as vials, syringes, ampoules, medical devices and bottles having irregular shapes as well. This modular machine can integrate multiple feeders for different products, booklets and any other accessory.

It can run either with intermittent or continuous motion, depending on the product to be handled.

Highly ergonomic for the operator, it combines an eye-level material workflow along with a complete accessibility from front (operator’s side) and rear of the machine.

Product can be handled with or without pucks.
The robotized product infeed system with double heads, grippers or vacuum, is able to adjust product orientation inside the carton.

nature_people

Sustainability

This system allows the use of recycled cardboards.

IMA Safe
settings_applications Production Plant
IMA Safe

VERTICARE P Highlights

1.
Able to feed the widest range of products. Modular design: it can integrate multiple feeders for any accessories.
2.
360° accessibility.
3.
Small footprint.
4.
Extra careful handling of all the package components.
5.
Extended and ergonomic carton magazine; easy cartons loading.
6.
Perfect integration into a line: it can run in a bypass mode.
7.
Modular construction for a future retrofitting of additional infeed group.
8.
Fast and tool-free changeover, supported by PC panel recipe.
High level of automation in the handling of products and accessories. The robotic feeding system has been designed to handle a wide range of products with different shapes, dimensions and stability; different product and accessory orientations inside the carton; cartons with pregueld separator.
  • Technical Data
  • Machine Layout

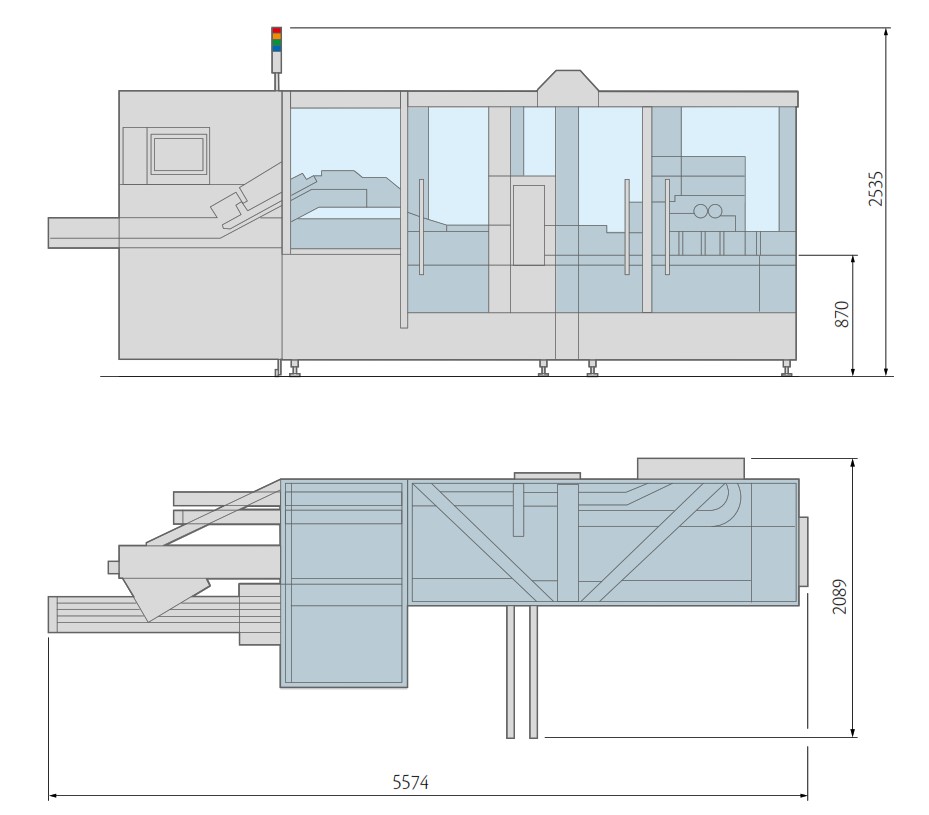

VERTICARE P Layout

VERTICARE P Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Robotized product infeed system - single product
search
Robotized product infeed system - multiple product
search
Robotized product infeed system - multiple product
search
Carton withdrawal and transport
search
Puck recycling
search
Easy-access to coding station
search
Complete accessibility - Machine rear view
search
Example of presentation
search
Example of presentation
search
Example of presentation
search
Example of presentation
search
Booklet size range
