VEGA SERIES
Rotary Vial Washers

Containers coming in contact with parenteral preparations must be rendered sterile and non-pyrogenic, process resulting particularly successful with the VEGA Series, where the easy configurable washing sequence enhances the efficiency of the cleaning procedure

Containers coming in contact with parenteral preparations must be rendered sterile and non-pyrogenic, process resulting particularly successful with the VEGA Series, where the easy configurable washing sequence enhances the efficiency of the cleaning procedure

Small Volume Injectable’s star

Being the majority of SVIs aseptically processed (i.e. end containers not sterilized), essential becomes to rigorously adhere to cGMP standards as far as sterility assurance is concerned – FDA and EMA guidelines.

VEGA washing flow follows said directions in terms of structural design, connections, and adaptability of the decontamination process.

IMA Life
settings_applications Production Plant
IMA Life

VEGA Series Highlights

1.
Low maintenance impact
2.
Ultrasonic pre-wash connection with de-packing machines or turntables
3.
Completely drainable washing circuit
4.
Steaming in place of washing circuit
5.
Easy and full access to the machine from both sides, no hidden areas
6.
Washing process completely validatable
7.
Possibility to handle a wide range of containers (ampoules, vials, cartridges)
8.
Compact version for low speed production lines, with upstream integrated rotary table
The decontamination cycle varies with the condition of the containers to be cleaned, therefore, besides the integration of additional media, the VEGA washer is suitable to include siliconizing stations and SIP process.
  • Technical Data
  • Machine Layout
TECHNICAL DATA VEGA SERIES
Model  VEGA 2 VEGA 4 VEGA 6 VEGA 8
Version with 12/24 gripper units with 4/6 pincers
Gripper units

12 gripper units with 4 pincers

(total 48 pincers)

12 Gripper units with 4 pincers (total 48 pincers)  12 Gripper units with 6 pincers (total 72 pincers) 24 Gripper units with 4 pincers (total 96 pincers)
Ampoules diameter (mm)

 Min. 10.75

Max. 22.50

Min. 10.75

Max. 17.75

Min. 10.75

Max. 17.75

Cartridges  All sizes All sizes  All sizes
Vials max. external diameter (mm) 32 42.5  32  32
Vials max. height (mm) 58  75 60  60
Production max. pcs/hour 9,000  12,000 18,000  24,000
Version with 12/24 gripper units with 2/3 pincers
Gripper units 12 Gripper units with 2 pincers (total 24 pincers)  12 Gripper units with 2 pincers (total 24 pincers) 12 Gripper units with 3 pincers (tatal 36 pincers)  24 Gripper units with 2 pincers (tatal 48 pincers)
Ampoules diameter (mm)

 Min. 10.75

Max. 22.50

Min. 10.75

Max. 22.50

 Min. 10.75

Max. 22.50

Cartridges  All sizes All sizes   All sizes
Vials max. external diameter (mm) 52 52 52 52
Vials max. height (mm) 105  95 95  95
Output up to (pcs/hour) 4,500  6,000 9,000  12,000

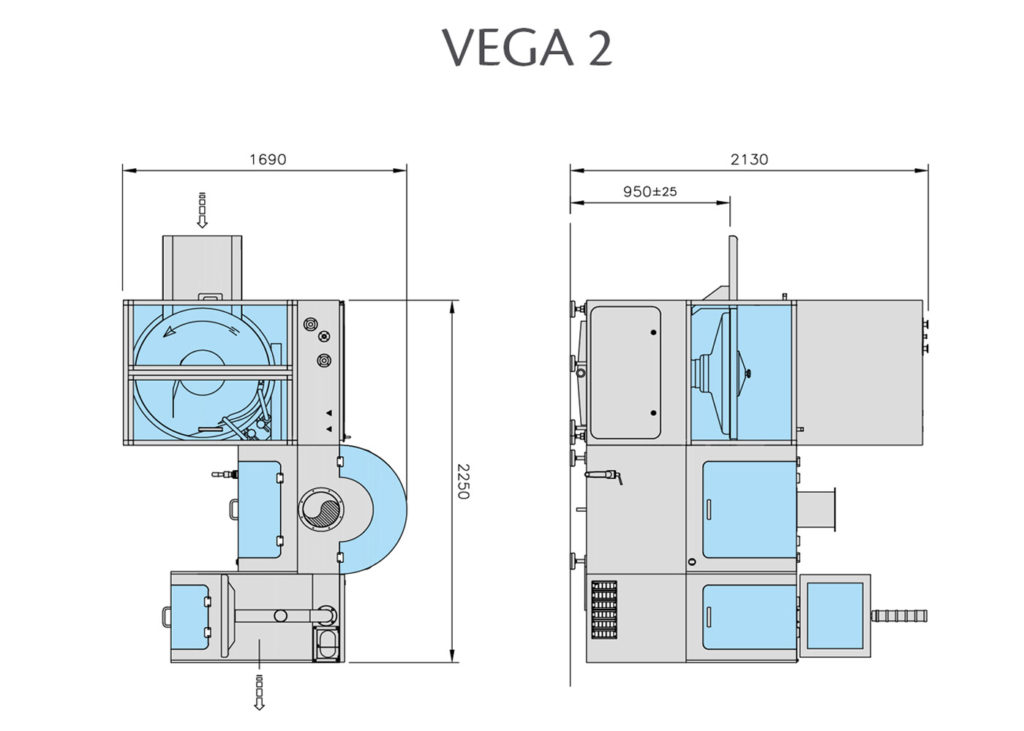

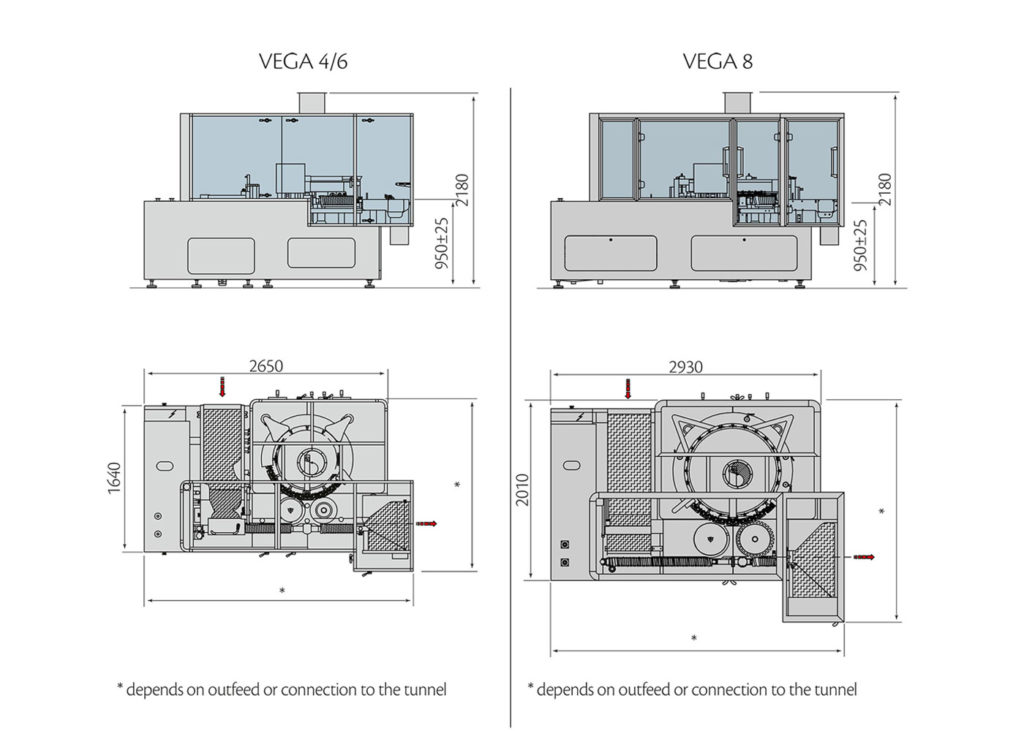

VEGA Series Layout VEGA Series Layout

VEGA Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Vial/ampoule inlet
search
Carrousel view
search
Washing area overview
search
Vial rotation to washing station
search
Nozzle splashing
search
Internal washing detail
search
Drying station
search
Ampoule pincer detail
