V-VL Series
Tray loaders

To complete the panorama of production lines for aseptic products, where minimum operator intervention is essential, IMA Life manufactures a wide range of tray loaders for the automation of traditional manual operations.

To complete the panorama of production lines for aseptic products, where minimum operator intervention is essential, IMA Life manufactures a wide range of tray loaders for the automation of traditional manual operations.

Loaded with versatility and without intervention

The automatic tray loaders of the V and VL series are the ideal solution
for loading vials onto plastic, metal or paperboard trays, including lyophiliser trays.

Many different models are available to suit each customer’s request: from single
to double station, compact version, in-line and with up to four tray loaders.

IMA Life
settings_applications Production Plant
IMA Life

V-VL Series Highlights

1.
No mechanical parts in contact with vial mouth or cap to avoid any damage or contamination.
2.
High performance with both SVP (small volume) and LVP (large volume) vials at high speed.
3.
Suitable for clean room environments: stainless steel finishing combined with components compatible with sterilising agents.
4.
User-friendly HMI to set output rate, select format and number of rows on each tray.
5.
High flexibility and simple changeover by means of calibrated mechanical adjustments.
  • Technical Data
  • Machine Layout
V-VL SERIES Technical Data
Model V300 M V300 V600 VL200 VL400 VL600
Output 19 or 27 strokes/minute* 200 pieces/minute 400 pieces/minute 600 pieces/minute
Standard voltage 400 V – 50Hz 400 V- 50Hz
Installed power (KW) 1 15 1
Bottle size

Ø 14 to 52 mm
Maximum height 120 mm

Ø 16 to 52 mm
Maximum height 180 mm
Ø 16 to 36 mm**
Maximum height 130 mm
Ø 16 to 52 mm
Maximum height 130 mm
Tray dimension (mm) n.1 standard 350×500 n.2 standard 350×500 n. 4 standard 350×500 n.1 -350×500 n.2 -350×500

*Depending on vial diameter and tray size – 27 only for brushless version
**Up to 52 mm single tray

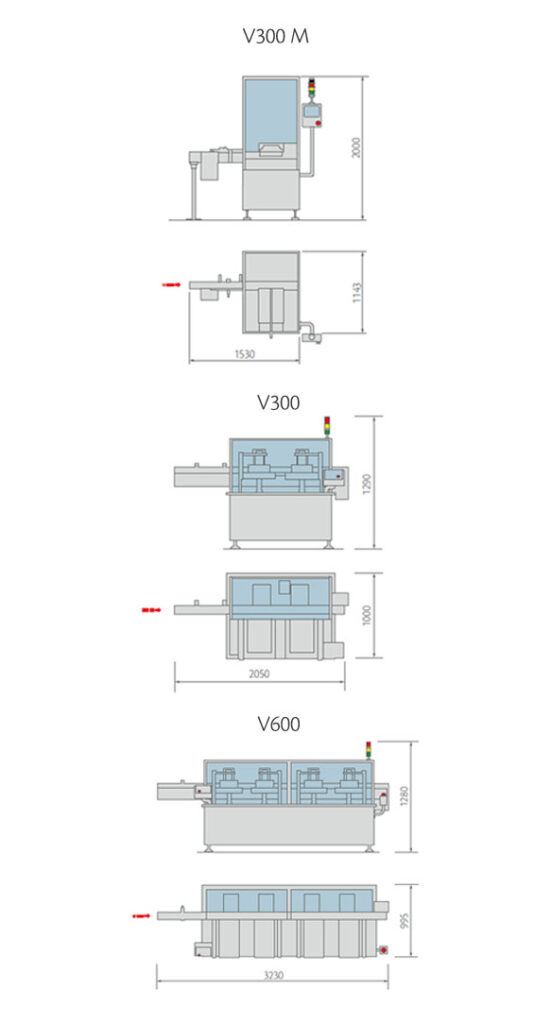

V-VL Series Layout V-VL Series Layout

V-VL Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Minimum vial loading sensor
search
Vial infeed and check before tray loading
search
Tray loading
search
Work area – rear side
search
Work area detail
search
Machine HMI
