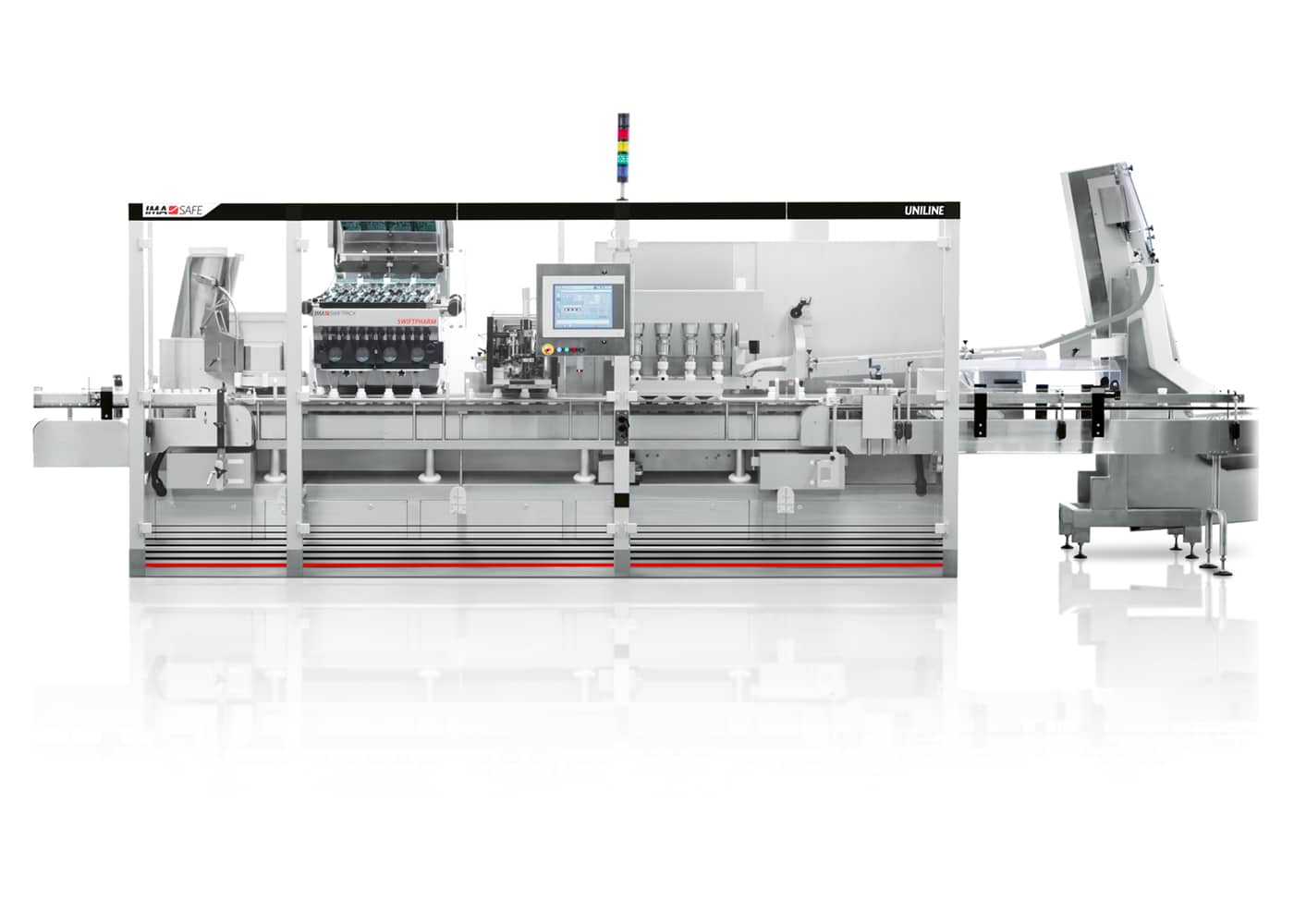

UNILINE
Integrated counting system

UNILINE is a conveying, filling and capping system that flexibly integrates the functions required to form a complete counting line: container loading, desiccant insertion, counting and filling, cotton insertion, capping, rejection.

UNILINE is a conveying, filling and capping system that flexibly integrates the functions required to form a complete counting line: container loading, desiccant insertion, counting and filling, cotton insertion, capping, rejection.

UNILINE, fast track your counting system

Designed for maximum flexibility with no product or bottle change parts, UNILINE can be changed over very quickly and start up immediately at production speed for high OEE even when running small batches. The balcony design provides easy cleanability and visibility with no hidden entrapment points. Compact design fits in a friction of the space of traditional equipment.

With UNILINE the highest level of count accuracy is granted by different counting technologies solutions available (Optical sensor and E.F.S. – Electronical field sensor) which are able to work also in difficult conditions.

IMA Safe IMA Safe Nova
settings_applications Production Plant
IMA North America

UNILINE Highlights

1.
The bottle is positively held and controlled throughout the entire process.
2.
No oil over the bottle transport.
3.
No size parts required for bottle dimensions.
4.
Automatic bottle size changeover with the touch of a button.
5.
Simple machine layout enables simple and fast cleaning.
6.
Bottle transport system can handle round, rectangular, oval and square bottles.
7.
Counter does NOT require additional space at the rear of the machine.
8.
All machines are made and supported by IMA.
The counting accuracy depends on many factors such as counter design, product flow control, gating system and, last but not least sensors. Over the years Swiftpack has developed new solutions in order to improve quality and efficiency.
  • Technical Data
  • Machine Layout
TECHNICAL DATA UNILINE
Bottle Output Up to 150 bpm
Product Output 12,000 tablets/min.
Bottle range   Min. Max.
   Length Width  Height  Length Width Height
Round, rectangular*, square, oval* 30 mm (1.18″) 30 mm (1.18″) 55 mm (2.17″) 90 mm (3.50″), 104 mm (4.00″)* 90 mm (3.50″) 180 mm (7.00″)
Cap range CRC, Screw Top, Flip Top, Press on      10 mm (0.44″) 70 mm Dia. (2.75″)
Desiccant 1,2 and 3 gram – 1 to 3 canisters per bottle
Cotton Cotton, Rayon, Polyester 50 mm    180 mm
UNILINE Layout

UNILINE Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Bottle handling
search
Desiccant
search
Tablet/capsule counting
search
Cottoner
search
Capping
search
Good containers positively extracted
