TLS
Top Loading System
TLS is a robotic system able to load/unload products from/to trays. This machine has been devised to enhance production line performance with great flexibility of functions, product handling and layout.
TLS is a robotic system able to load/unload products from/to trays. This machine has been devised to enhance production line performance with great flexibility of functions, product handling and layout.
High speed loading system

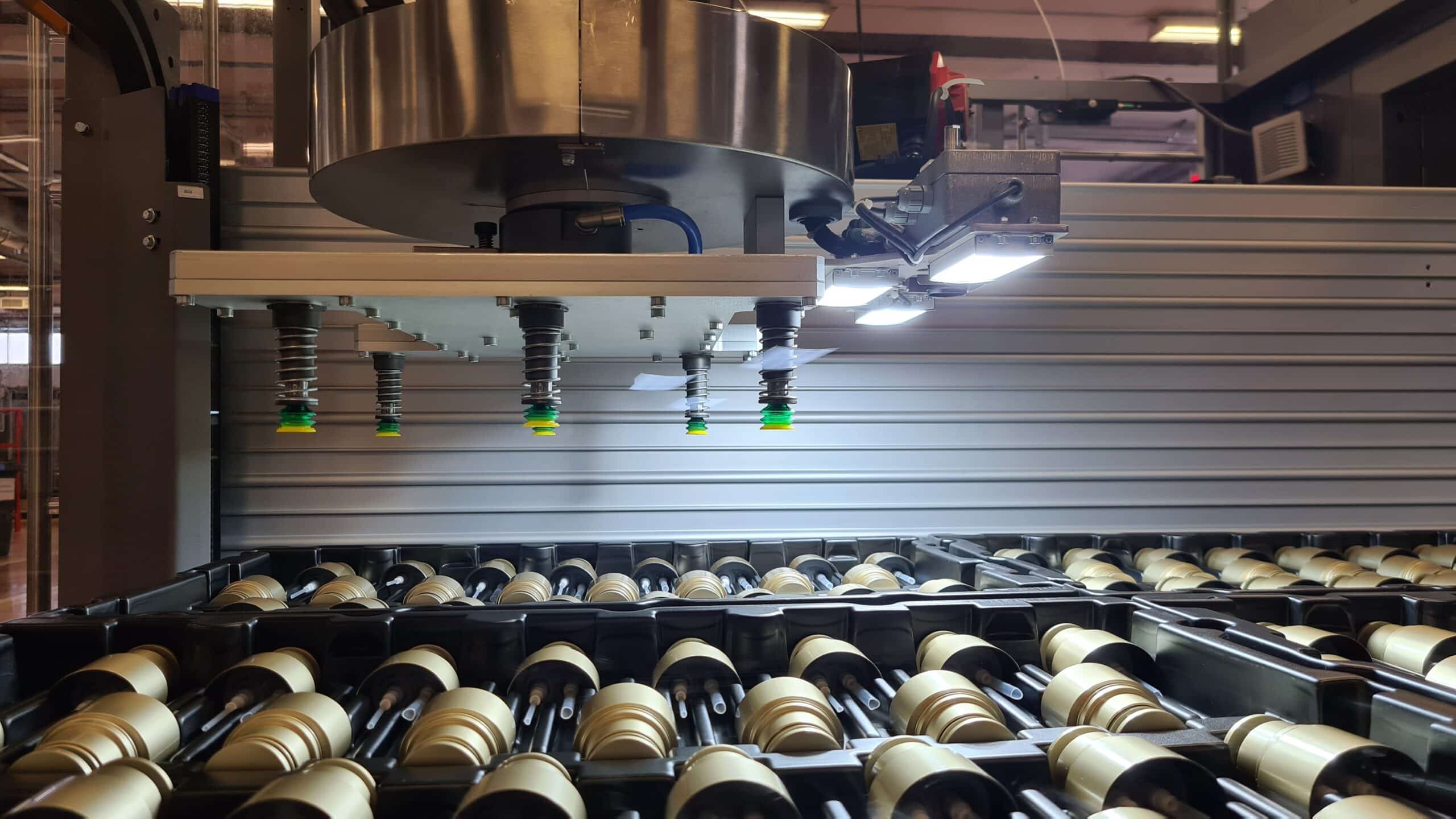

The TLS is a robotic system designed to unload and/or load devices like strips, inhalers, pens or auto-injectors from or into trays.
This automated system ensures the best production line performance and great flexibility of functions. This solution perfectly responds to high demands in terms of productivity and throughput when the whole production process has to be operated automatically and in a
highly dynamic way.
Robotic technology is at the heart of this system and allows flexible product handling at the beginning, in the middle or at the end of the line.
Multi function system:
• PRODUCTION LINE INFEED: robotized tray unloading system placing containers into the line.
• PRODUCTION LINE OUTFEED: robotized tray loading system taking containers from the line.
• BUFFER FUNCTION: products store buffering on trays during line stops.
settings_applications
Production Plant
IMA BFB
TLS Highlights
1.
Smooth handling of trays that can be thermoformed or plastic injection trays and can be
nested, de-nested and oriented according to the request.
2.
Products of different shapes and sizes can be fed from or placed into pucks, worm-screws, bucket chain belts.
3.
Tailor-made grippers designed according to the objects they need to handle and carefully selected to avoid any damage to the device.
4.
Tray magazines can be designed according to customer’s requirements of high or medium capacity.
5.
This system can be supplied as a stand alone machine or integrated with de-palletizing systems for greater autonomy.
TLS & RD Series (Robot Depalletizing modules) integrated versions
TLS can be integrated with RD Series (Robot Depalletizers) giving more production autonomy to the whole line.
- TLS: stand alone version
- TLS-RD2: 2 pallet stations
- TLS-RD6: 6 pallet stations
The increasing number of pallet stations allows for a larger production autonomy. Operator’s intervention is reduced to the minimum.
- Technical Data

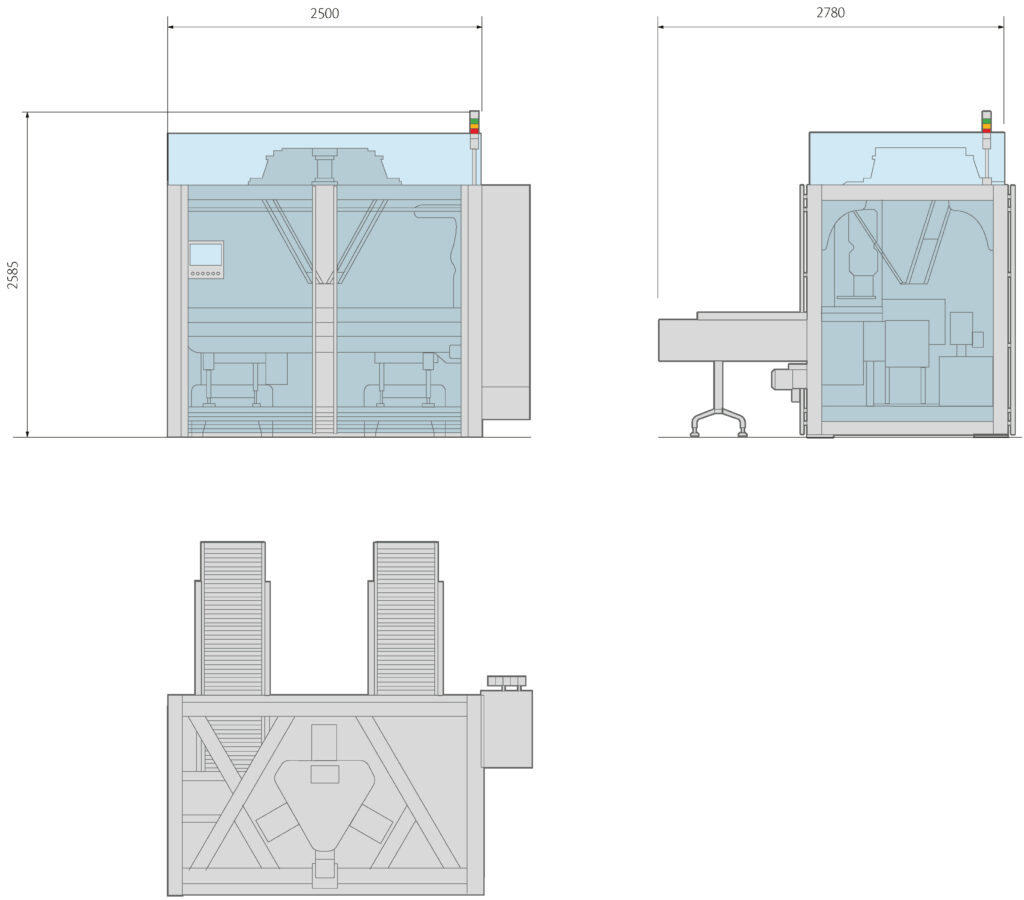

- Machine Layout
| TECHNICAL DATA | ||
| TRAY DIMENSIONS | 600 mm | 400 mm |
