SWIFTPHARM 2
Electronic tablet counters

SWIFTPHARM 2 is a versatile counting/filling system to pack a variety of products accurately at high speed, and requires few or no change parts to allow maximum productivity.

SWIFTPHARM 2 is a versatile counting/filling system to pack a variety of products accurately at high speed, and requires few or no change parts to allow maximum productivity.

Taking electronic tablet counting to the next level

SWIFTPHARM 2 Series is a pharmaceutical grade electronic tablet counter, with a positive transport of the bottles, available in two configurations according to the speed needed: SWIFTPHARM 2-4 with one counting head and SWIFTPHARM 2-8 with two counting heads.

With this Series the highest level of count accuracy is granted by different counting technologies solutions available (Optical sensor and E.F.S. – Electronical field sensor) which are able to work also in difficult conditions. Moreover, SWIFTPHARM 2 is extremely easy to clean and its integrated guards design allows a perfect integration of containment solution if needed.

IMA Safe
settings_applications Production Plant
IMA Swiftpack

SWIFTPHARM 2 Highlights

1.
No additional space is required at the back of the counter for cleaning procedure.
2.
The simpler layout allows a simpler cleaning procedure and reduce the down time.
3.
Integrated guard design lending towards higher levels for product isolation.
4.
The container is positively held and controlled throughout the whole process.
5.
A single HMI for the counter and the bottle transport.
6.
Highest level of count accuracy of any electronic counter.
7.
Less product contact parts and less bottle format parts compared to the direct competitor.
8.
No oil over the bottle transport.
The counting accuracy depends on many factors such as counter design, product flow control, gating system and, last but not least sensors. Over the years Swiftpack has developed new solutions in order to improve quality and efficiency.

Versions

The SWIFTPHARM 2 Series includes the following configurations:

  • SWIFTPHARM 2-4 machine, one counting head mounted on a single base
  • SWIFTPHARM 2-8 machine, two counting heads mounted on a single base

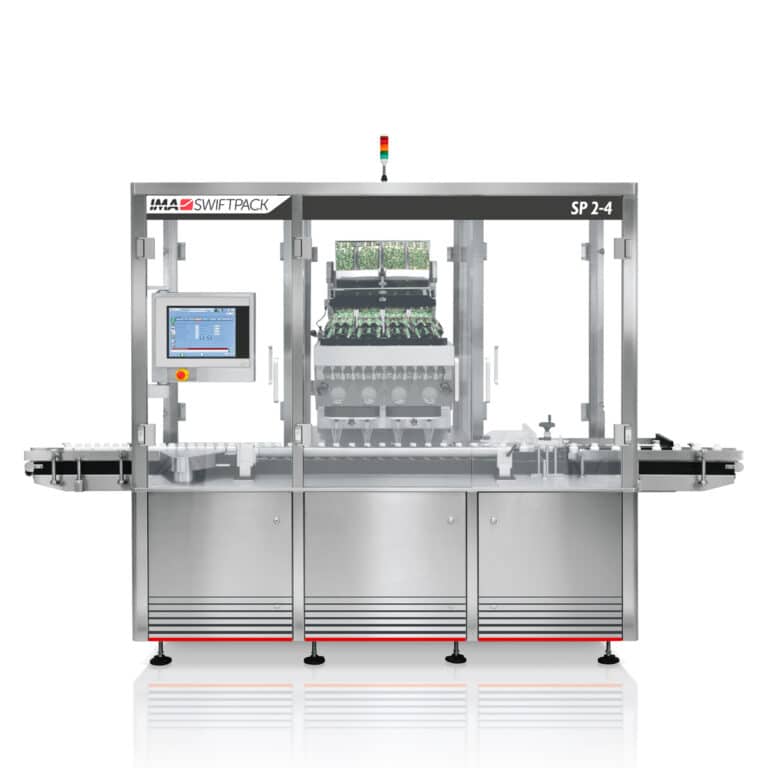

SWIFTPHARM 2 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA SWIFTPHARM 2
Model SWIFTPHARM (2-4)   SWIFTPHARM (2-8)
Production output Up to 120 bottles/min. or 12,000 tablets/min.*   Up to 240 bottles/min. or 24,000 tablets/min.*
Container diameter range 25 mm – 100 mm 25 mm – 100 mm
Container height range 40 mm – 200 mm 40 mm – 200 mm

*Depending on product and bottle shape and size

SWIFTPHARM 2 Layout

SWIFTPHARM 2 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Bottle transport
search
Vibrating trays
search
Counting area
search
Outfeed
