STERIFILL
Ampoule filling and sealing machine

Offering cost and time-efficient, high-capacity filling, STERIFILL satisfies the increasing demand for ampoule fillers. Filled with a measured quantity of liquid, ampoules are considered ready-to-inject solutions with the advantage of being 100% tamper proof.

Offering cost and time-efficient, high-capacity filling, STERIFILL satisfies the increasing demand for ampoule fillers. Filled with a measured quantity of liquid, ampoules are considered ready-to-inject solutions with the advantage of being 100% tamper proof.

Fast forward to the future of filling.

Sterifill is a linear ampoule filling and sealing machine for both opened (type B and C) and closed (type D) ampoules. Compact and with superb ergonomic features, its geometry facilitates unidirectional air flow and cleanability.

Depending on the model, the machine can be fitted with up to 10 dosing pumps to satisfy medium/high production speeds.

Fully driven by brushless motors for high precision and gentle movements, Sterifill is suitable for complete wall installation and is available as a stand-alone unit or integrated in complete processing lines. Integration with LAF hoods system, RABS of isolator enclosures is also possible.

IMA Life
settings_applications Production Plant
IMA Life Pharmasiena

STERIFILL Highlights

1.
No ampoule – no fill system.
2.
Positive transport system.
3.
Can be equipped with CIP/SIP systems allowing programmable automatic cycles with no need to remove machine components.
4.
Gas/oxygen safety valves, exhaust fume aspiration, reinforced PTFE hoses and special fastenings for gas/oxygen circuit available as standard.
5.
User-friendly HMI with Siemens touch screen.
6.
Excellent accessibility for direct maintenance and cleaning.
7.
Quick and easy tool-free size changeover.
Featuring the same design construction and technical characteristics, Sterifill is also available in the COMBI version to process ampoules and vials alternately with a quick and easy changeover.
  • Technical Data
  • Machine Layout
TECHNICAL DATA STERIFILL
Model STERIFILL B4 STERIFILL B4 COMBI STERIFILL B6 STERIFILL B6 COMBI STERIFILL B8 STERIFILL B8 COMBI STERIFILL B10 STERIFILL B10 COMBI
Output – ampoules (pieces/minute) 200 300 400 500

Output – vials (pieces/minute)

150 225 300 375

Filling pumps

4 6 8 10
Filling range (ml) 0.5 – 20 0.5 – 50 0.5 – 20 0.5 – 50 0.5 – 20 0.5 – 50 0.5 – 20 0.5 – 50
Ampoule diameter (mm) 10.75 – 22.5
Vial diameter (mm) 16 – 42.5 16 – 42.5 16 – 42.5 16 – 42.5
Standard voltage 400 V – 50 Hz
Installed power (kW) 18 20 18 20 18 20 18 20
Weight (kg) 1800 2000 1900 2100 2000 2200 2100 2300
Machine dimensions (mm)

A – 3300

B – 1150

C – 2020

A – 3600

B – 1700

C – 2020

A – 3300

B – 1150

C – 2020

A – 3600

B – 1700

C – 2020

A – 3300

B – 1150

C – 2020

A – 3600

B – 1700

C – 2020

A – 3650

B – 1150

C – 2020

A – 3950

B – 1700

C – 2020

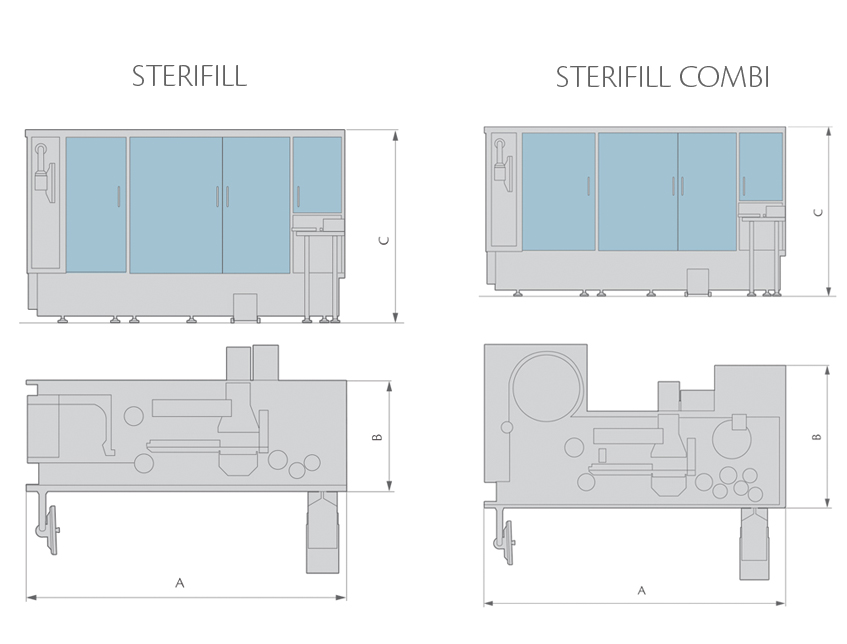

STERIFILL Layout

STERIFILL Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Ampoule infeed
search
Ampoule filling
search
Vial filling – Combi version
search
Ampoule sealing
search
Vial stoppering – Combi version
search
Weighing system
search
Ampoule outfeed
