STERICAP
Capping machine

Conceived to provide high capping precision, STERICAP ensures the most remarkable performance. Compact and with a simple and essential design, it is a competitive solution in terms of speed, flexibility and ease of use.

Conceived to provide high capping precision, STERICAP ensures the most remarkable performance. Compact and with a simple and essential design, it is a competitive solution in terms of speed, flexibility and ease of use.

Capping essentials

STERICAP is a rotary capping machine for low-medium speed requirements and is particularly suited to sealing aseptic products. Its compact design ensures air turbulence minimisation and offers the best conditions for H2O2 exposure and barrier system operations.

Available as one model, STERICAP can be fitted with 3 or 6 capping heads depending on customer requirements and features a broad range of application capabilities: from traditional aluminium caps, with or without flip-off, to the most sophisticated caps such as add-vantage, bio-set and monovial closures.

IMA Life
settings_applications Production Plant
IMA Life

STERICAP Highlights

1.
Very low particle generation system to avoid product contamination.
2.
Pneumatic circuit to keep constant applied vertical force.
3.
100% measurement and control of vertical compression force.
4.
Various types of controls available to check crimp quality and flip-off cap colour.
5.
Coding unit and camera vision system for data reading and check.
6.
Low size changeover and set-up time.
7.
Little maintenance required.
8.
Equipped with Siemens PLC and with a user-friendly control panel.
Crimping is performed by rotating the vial against a single idle blade fitted at the centre of the carrousel. This system guarantees maximum sealing precision and minimises particle generation on the vial mouth.
  • Technical Data
  • Machine Layout
TECHNICAL DATA STERICAP
Capping heads 3 6
Output (vials/minute) 125 300
Standard voltage 400 V – 50 Hz
Installed power (kW) 6
Weight (kg) 1500
Vial diameter (mm)* 14-52
Vial height (mm) 35-110
* 85 mm in case of large volume configuration

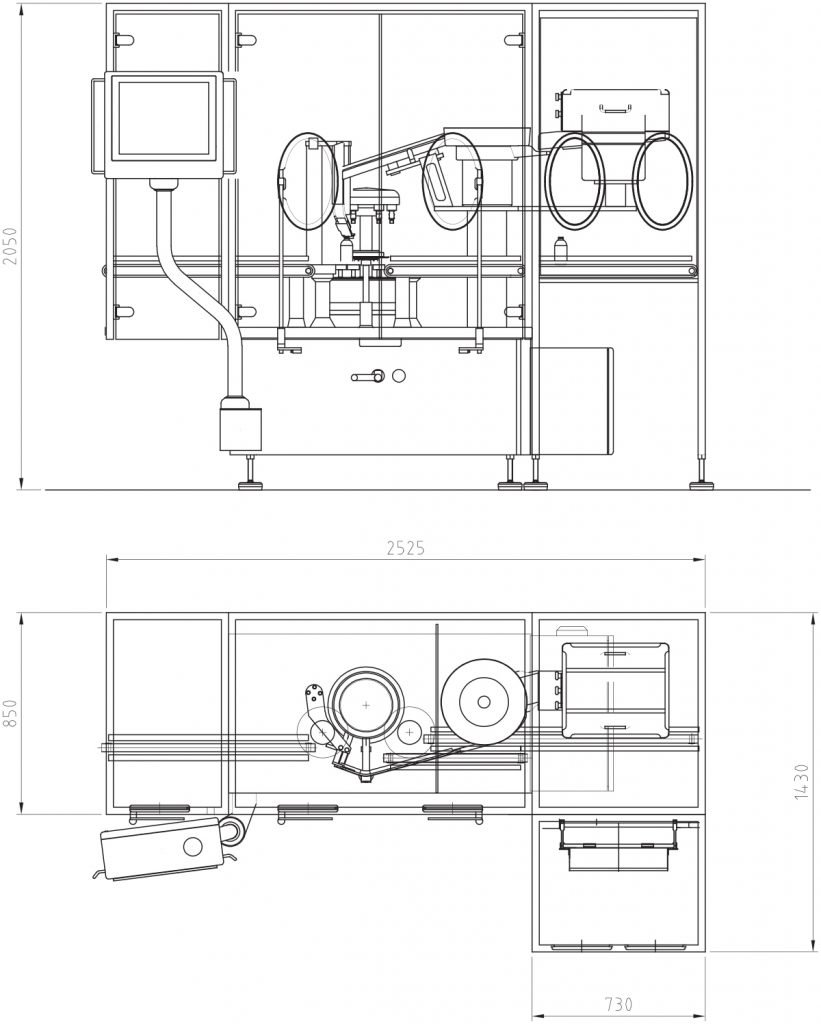

STERICAP Layout

STERICAP Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Alu-cap pre-feeding hopper
search
Vibrating bowl for alu-cap feeding
search
Alu-cap feeding unit
search
Alu-cap release
search
Capping unit
search
Vial rejection
