SL-39
Slat counter

The Nova SL-39 is a slat counter designed to meet the demand for quick and easy cleaning. In addition, this counter is available with an optional innovative replacement filling head to drastically reduce the changeover time of the machine.

The Nova SL-39 is a slat counter designed to meet the demand for quick and easy cleaning. In addition, this counter is available with an optional innovative replacement filling head to drastically reduce the changeover time of the machine.

More than a counting system

SL-39 also features a servo driven main drive for precise slat positioning, powered elevation and slope adjust. All drives are located in the base for easy access.

Other design enhancements include the slat fill area and slat vibrators, as well as a low voltage static elimination system and improved product control and slat cleaning brushes.

The SL-39 is also available with the TruCount® electronic count verification system to ensure 100% count accuracy.

IMA Safe IMA Safe Nova
settings_applications Production Plant
IMA North America

SL-39 Highlights

1.
All drive and mechanical components fully enclosed in base and side panels for improved safety and elimination of product entrapment points.
2.
Static elimination system assists with removal of static charge from product and slats.
3.
Integral bulk tablet hopper with sifti-feed feeders to remove dust and chips.
4.
Main slat servo drive for precise positioning of slats.
5.
Tablet ejection vibrator eliminates the need for pin bars, thumper or blade ejection.
6.
Tool-free changeover.
7.
Servo feedscrew bottle indexing for precise positioning of bottle.

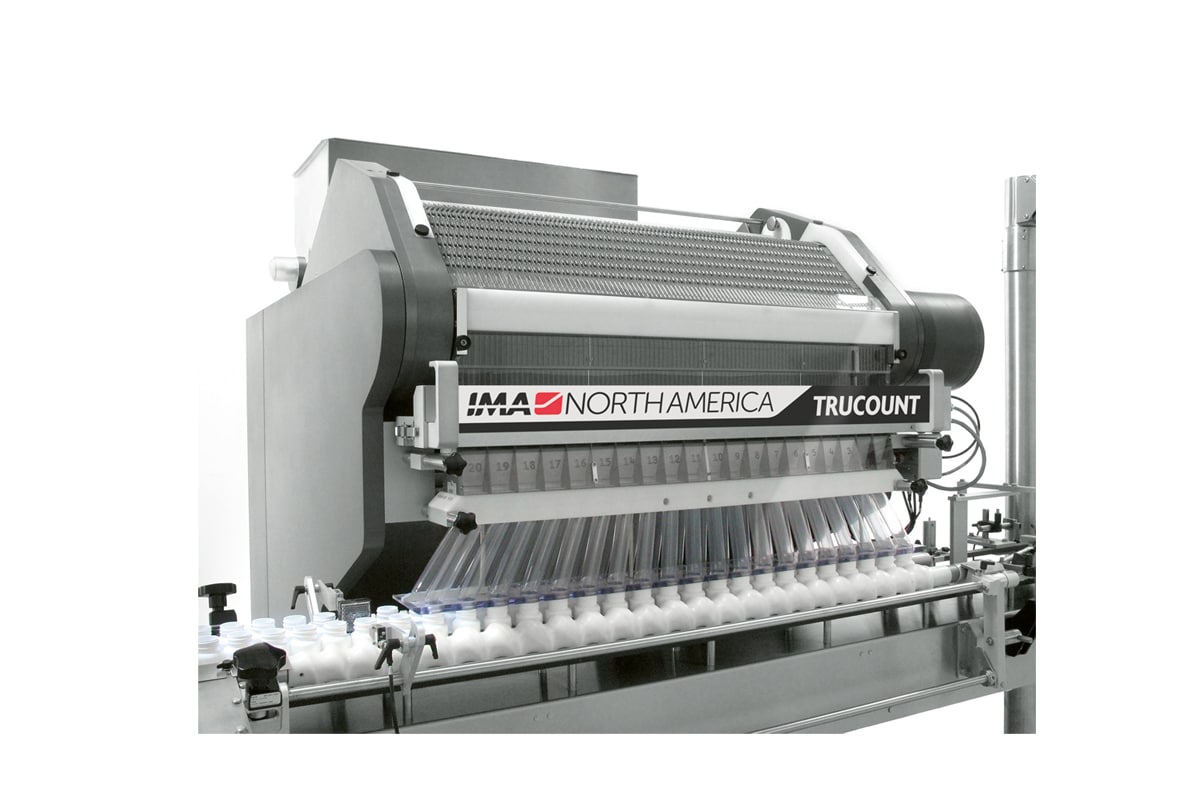

The revolutionary TruCount® high speed tablet scanning system scans, evaluates and counts the product before it enters the bottle and ensures 100% count accuracy.
  • Technical Data
  • Machine Layout
TECHNICAL DATA SL-39
Production output Up to 400 bottles/min. or 40.000 tablets/min.*
Container diameter range Up to 90 mm diameter (3-1/2″) (for dual lane conveyor)
Container height range 65 mm to 230 mm (2-5/8″ to 9″)

*Depending on product and bottle shape and size.

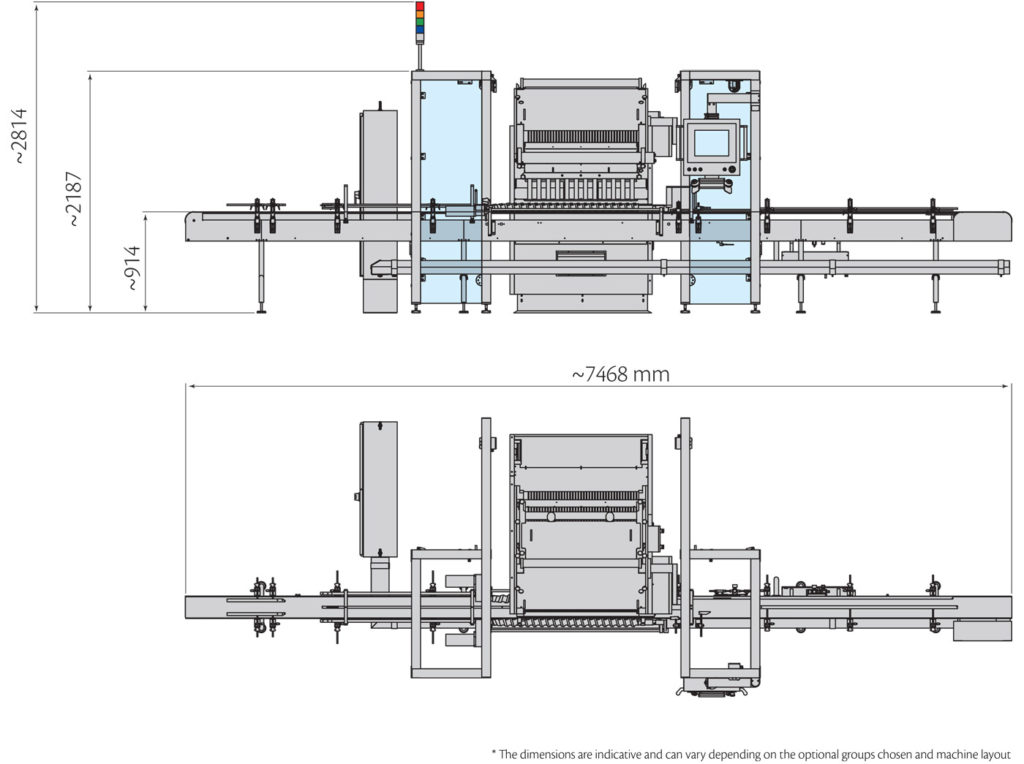

SL-39 Layout
