SENSITIVE ROTO
Labelling machine for vials and bottles

Where great performance and high-speed labelling of vials and bottles are required, Sensitive Roto comes into play. Versatile and reliable, it ensures an extremely precise application of labels providing information related to the content of the containers.

Where great performance and high-speed labelling of vials and bottles are required, Sensitive Roto comes into play. Versatile and reliable, it ensures an extremely precise application of labels providing information related to the content of the containers.

Perfection is all-around.

The Sensitive Roto includes four machine models suitable for applying self-adhesive labels to both sides of oval, square or rectangular bottles, vials and cylindrical containers with unusual shapes.

The modular design and range of groups that can be installed on these machines make them the most flexible solution for high-speed labelling.

The machine can be equipped with up to four labelling heads and can also apply outserts, booklets and hanging labels. Additionally it boasts brushless motors which move each holding platform to ensure precise container positioning during the labelling phase.

IMA Life
settings_applications Production Plant
IMA Life

SENSITIVE ROTO Highlights

1.
Compact and ergonomic design with stainless steel finish.
2.
Can be supplied in stand-alone version or integrated in complete processing and packaging lines.
3.
Positive transport of the containers for precise label application
4.
Full servomotor technology for maximum precision during the labelling process.
5.
Rejection unit for containers with missing labels and/or incorrectly printed data which are driven onto a parallel belt or collected in a box.
6.
Easy installation of overprinting devices and camera vision systems to read and check data.
7.
Straightforward access over the entire labelling process, quick clearance and cleaning.
Continuous infeed of new label reels without machine interruption is possible thanks to a double Easy Splice reel carrier which can be easily moved and positioned parallel to or perpendicular to the conveyor belt.
  • Technical Data
  • Machine Layout
SENSITIVE ROTO Technical data
Model Sensitive Roto 400 Sensitive Roto 540 Sensitive Roto 720 Sensitive Roto 960
Maximum output (pieces/minute)  400 600 600 600
Installed power (kW) 3
Standard voltage 400 V – 50 Hz
Bottle maximum height (mm) 220
Bottle diameter (mm) 16-86
Label height (mm) 10-100
Label length (mm) 15-250
Label reel diameter (mm) 400
Label accuracy (mm) ±1

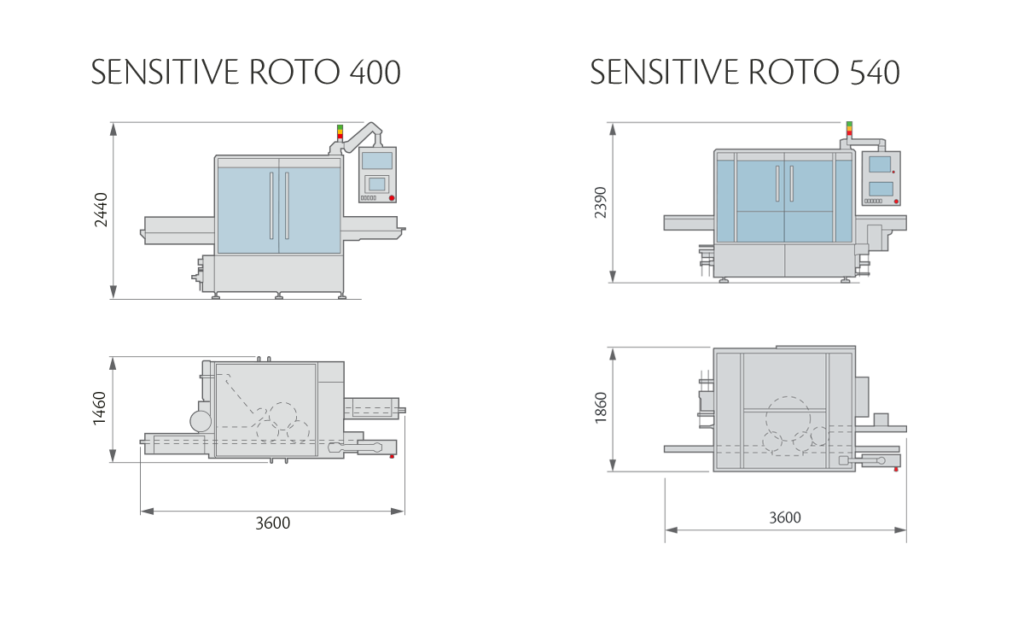

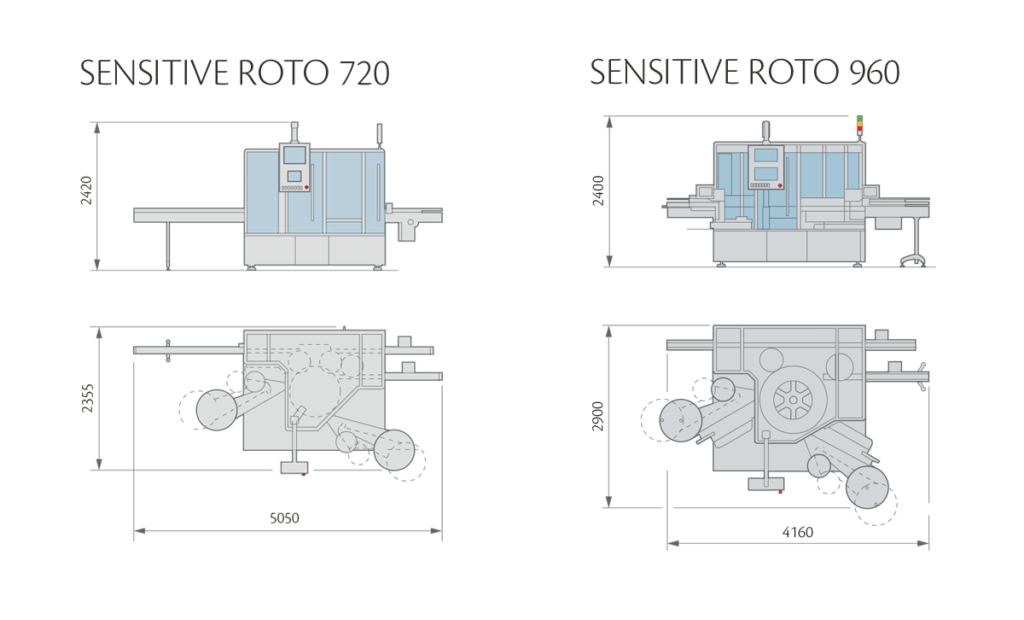

SENSITIVE ROTO Layout SENSITIVE ROTO Layout

SENSITIVE ROTO Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Vial infeed
search
Label application
search
Label check with camera
search
Vial outfeed
search
Bottle outfeed
