SENSITIVE AV
Labelling machine for ampoules and vials

However well an ampoule is labelled, the clinical outcome of any injection depends on the correct drug being administered and the only certain way of achieving this is for the label to be appropriately applied and clearly red.

However well an ampoule is labelled, the clinical outcome of any injection depends on the correct drug being administered and the only certain way of achieving this is for the label to be appropriately applied and clearly red.

Graduate with honours in labelling

The Sensitive AV labeller has been specifically designed to allow excellent reliability and assure precise label application even when handling small, unstable containers such as ampoules, cartridges and vials.
Being the ideal solution for SVP applications, the machine can be equipped with any printing and vision system devices to comply with mass serialization and track & trace provisions.
Despite its compact overall design, the machine responds to pharmaceutical guidelines for ergonomic criteria and to the latest GMP standards.

IMA Life
settings_applications Production Plant
IMA Life

SENSITIVE AV Highlights

1.
Positive container infeed system.
2.
Label presence check.
3.
Label quality control system to automatically detect possible printing errors.
4.
Incorrect label recovery device to avoid application of wrong labels on the containers.
5.
Collection of the unlabelled containers through a separate recovery box for re-use.
6.
Overprint and bar code or data matrix (DM) control systems.
7.
Automatic rejection unit designed according to latest GMP regulations granting maximum visibility of the entire labelling process.
8.
Quick and easy format size change over.
A label quality control system automatically detects possible printing errors and collects the incorrect labels by a recovery unit. Containers without labels are collected in a separate recovery box, ready to be re-used.
  • Technical Data
  • Machine Layout
                                                                                                              SENSITIVE AV
Output Up to 500 pcs/min.
Installed power 5 kW
Standard voltage 400 V – 50 Hz – 3 PH + N+ G
Length 1940 mm
Width 2320 mm
Height 1930 mm
Product Dimensions
Container size 8,5 to 32 mm  Max. height 120 mm
Label size

Length 10 to 100 mm

Height 10 to 48 mm
Label reel Max 400 mm
Labelling accuracy ± 1 mm

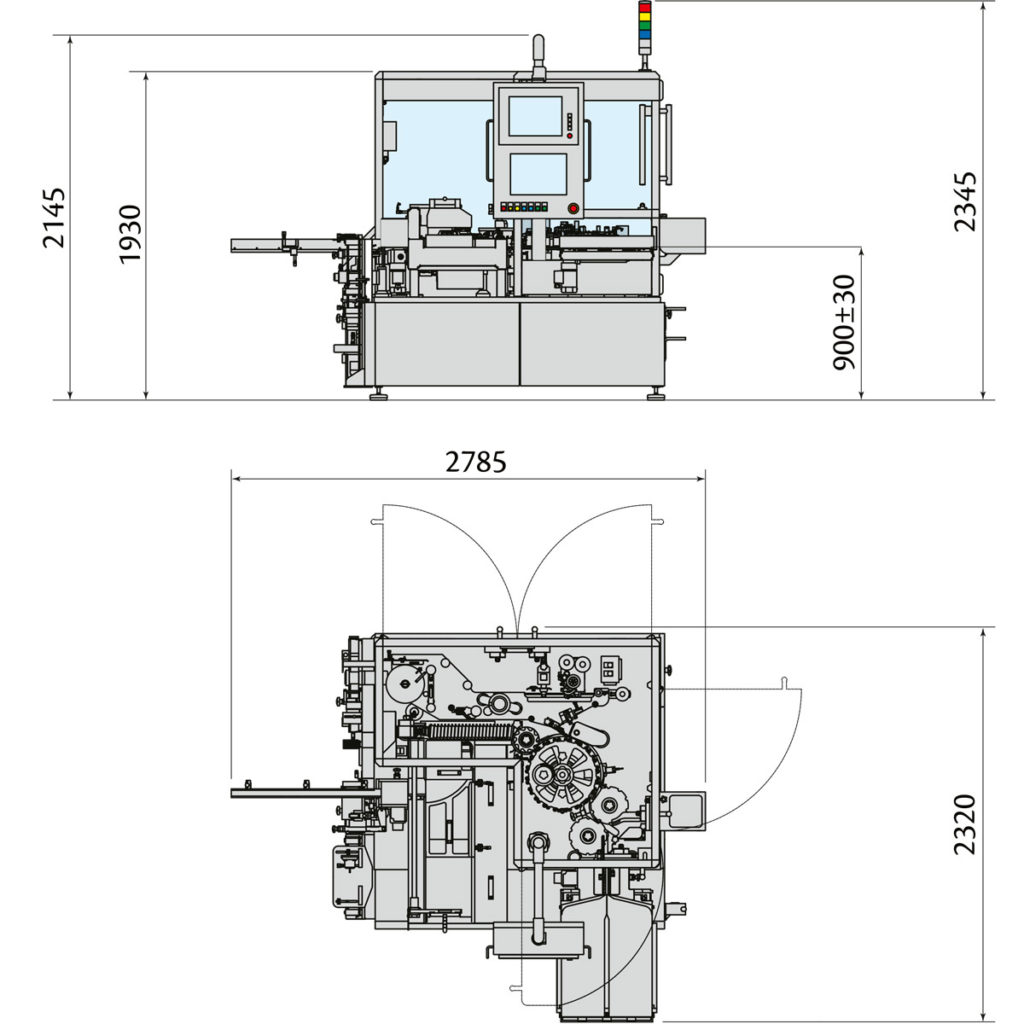

SENSITIVE AV Layout

SENSITIVE AV Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Ampoules infeed
search
Label printing unit
search
Label management
search
Labeling quality check and application
search
Labeling top view
search
Label presence check
search
Incorrect label recovery device
search
Unlabeled ampoules recovery device
search
Ampoule collection
