Sensitive AP400 BFS
Labelling machine for BFS strips

Blow Fill Seal single-dose product containers are becoming popular due to the advantages that this package offers in terms of product safety and ease of use. To keep up with the times, the new labeller for BFS is here: Sensitive AP400 BFS.

Blow Fill Seal single-dose product containers are becoming popular due to the advantages that this package offers in terms of product safety and ease of use. To keep up with the times, the new labeller for BFS is here: Sensitive AP400 BFS.

The speed you want, the accuracy you require, the care you need. All in one solution for BFS containers.

The Sensitive AP400 BFS applies self-adhesive labels on the top and bottom of Blow Fill Seal containers, combining high handling accuracy, maximum precision in label application and excellent performance in terms of speed, a key issue when dealing with this type of container.

The machine handles multiple BFS container types and can be easily installed in line with a packaging machine. Additionally, it boasts brushless motors to ensure BFS positioning accuracy, flexibility and reliability both at low and high production speeds.

The labelling head is designed for multiple or parallel labels and can integrate the Easy Splice system for continuous infeed of new label reels without machine interruption.

The neat basement allows the installation of additional units like cameras or printing devices.

IMA Life
settings_applications Production Plant
IMA Life

Sensitive AP400 BFS Highlights

1.
Compact and ergonomic design with stainless steel finish.
2.
Positive transport for accurate label application and check.
3.
Label reel holder integrated on machine’s side for easy access and manual reel change.
4.
Easy installation of overprinting devices and camera vision systems to read and check data.
5.
Straightforward access to the entire labelling process, quick clearance and cleaning.
6.
HMI for machine monitoring and supervision of data collection.
The flexible configuration of Sensitive AP400 BFS allows easy integration of Track & Trace systems to avoid product counterfeiting and to guarantee safety and product traceability along the entire supply chain.
  • Technical Data
  • Machine Layout
SENSITIVE AP400 BFS
Maximum output (pieces/minute) 400
Installed power (kW) 2
Standard voltage 400 V – 50 Hz
Weight (kg) 750
Size range (parallel BFS) 5/10
BFS label length (mm) 15-50
BFS label height (mm) 5-12
Label accuracy (mm) 0.8-1

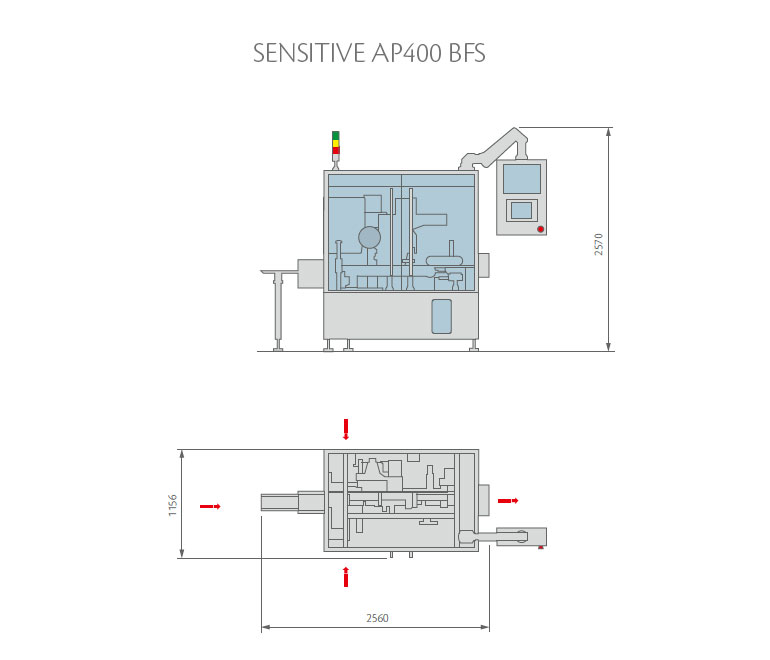

Sensitive AP400 BFS Layout

Sensitive AP400 BFS Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Work area
search
Maximum load sensor at product infeed
search
Product infeed and presence check
search
Labelling unit
search
Label application
search
BFS outfeed
search
BFS rejection
