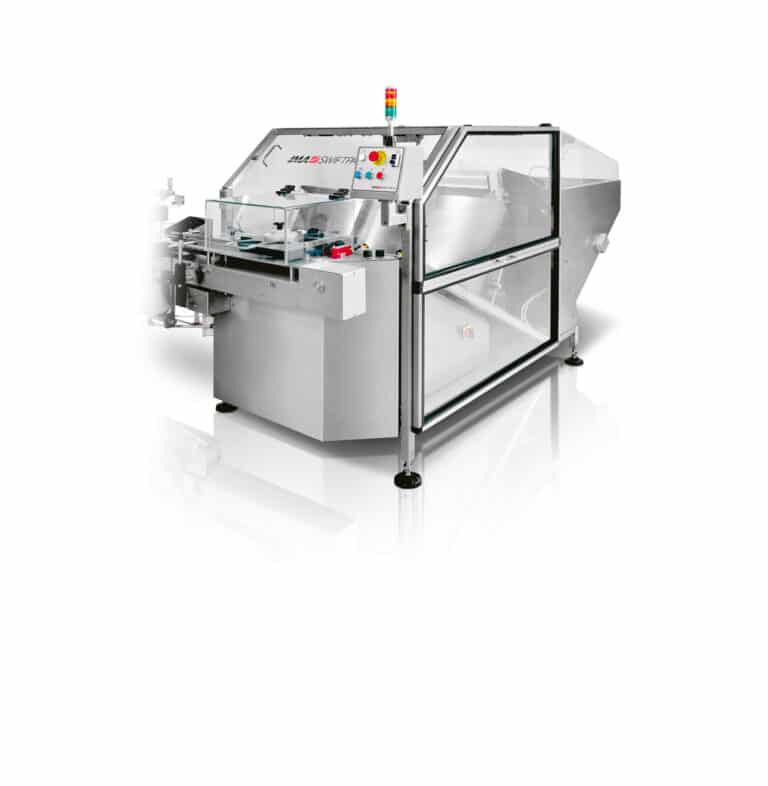

ROTARY UNSCRAMBLER
Automatic bottle unscrambler

This Series has been designed to handle a wide range of plastic bottles and is available in 3 sizes dependant upon output. This fully guarded machine is constructed to meet the latest requirements for GMP.

This Series has been designed to handle a wide range of plastic bottles and is available in 3 sizes dependant upon output. This fully guarded machine is constructed to meet the latest requirements for GMP.

Smart solution to complete your line

Bottles are loaded randomly into the large covered hopper from where they are raised into the starwheel by the flighted infeed. The starwheel separates the bottles loading them into pockets. Each container is then transported to a secondary starwheel for placement onto a conveyor, upside down bottles are ejected using compressed air. As an integrated system the rotary unscrambler can be synchronised to line outputs and container back up controls will start and stop system on demand.

With few quick release change parts the system can be easily changed over to different bottle formats in 5 minutes without the use of tools.

IMA Safe
settings_applications Production Plant
IMA Swiftpack

Rotary Unscrambler Highlights

1.
Large storage hopper.
2.
Stainless steel/acrylic construction.
3.
Safety guarding.
4.
Electronic speed control.
5.
Automatic container queue control at outfeed.
6.
Optional in-line bottle cleaning attachment.
  • Technical Data
  • Machine Layout
TECHNICAL DATA ROTARY UNSCARMBLER
Production output Up to 180 bottles/min.*
Bottle diameter  25 mm to 100 mm
Bottle height 40 mm to 200 mm

*Depending upon model, product and container size and shape

Rotary Unscrambler Layout
