MULTIFILL F500
Rotary Filling and Closing Machines

Have you ever thought about the huge variety of liquid pharmaceutical and nutraceutical products? And about their capping styles? Unquestionably, to handle them it is imperative flexibility and modularity: the proper characteristics of the MULTIFILL F500.

Have you ever thought about the huge variety of liquid pharmaceutical and nutraceutical products? And about their capping styles? Unquestionably, to handle them it is imperative flexibility and modularity: the proper characteristics of the MULTIFILL F500.

Natural talent to fill

The MULTIFILL F500 Series is ideal for a variety of products, such as syrups, solutions, suspensions, eye and ear drops, sugar or viscous intranasal products.

It is available as a stand-alone filler or completed with the closing and/or capping stations; the F500 Series comprises also the stand-alone capper that usually finds application in all production sites requiring filling on a segregated area.

IMA Life
settings_applications Production Plant
IMA Life

MULTIFILL F500 Highlights

1.
Stand-alone CIP/SIP system.
2.
Straightening system for dip-tubes.
3.
Height adjustable filling turret by means of brushless motor.
4.
GMP compliance improved.
5.
Alu capping applied force check and capping torque control.
The compact displacement of the operative groups through the entire process, allows the possibility to handle unstable containers into pucks, therefore simplifying even the more difficult packaging operations.
  • Technical Data
  • Machine Layout
TECHNICAL DATA MULTIFILL F540
Model F540
  Min. Max.
Bottle diameter (mm) 16 80
Bottle height (mm) 40 185
Max closure diameter (mm)
Filling heads (6) 12
Closing heads
Out-put (Bottles/h) Up To 24,000
Installed power 3 kW
Voltage 400 V – 50 Hz
Height 1,600 Kg



TECHNICAL DATA F570-573
Model F570 F573
  Min. Max. Min. Max.
Bottle diameter (mm) 16 80 16 80
Bottle height (mm) 40 185 40 165
Max closure diameter (mm) 40 40
Filling heads (6) 12 (6) 12
Closing heads (4) 8 (4+4) 8+8
Out-put (Bottles/h) Up to 24,000 Up to 24,000
Installed power 3.5 kW 6 kW
Voltage 400 V – 50 Hz 400 V – 50 Hz
Height 2,500 Kg 2,700 Kg

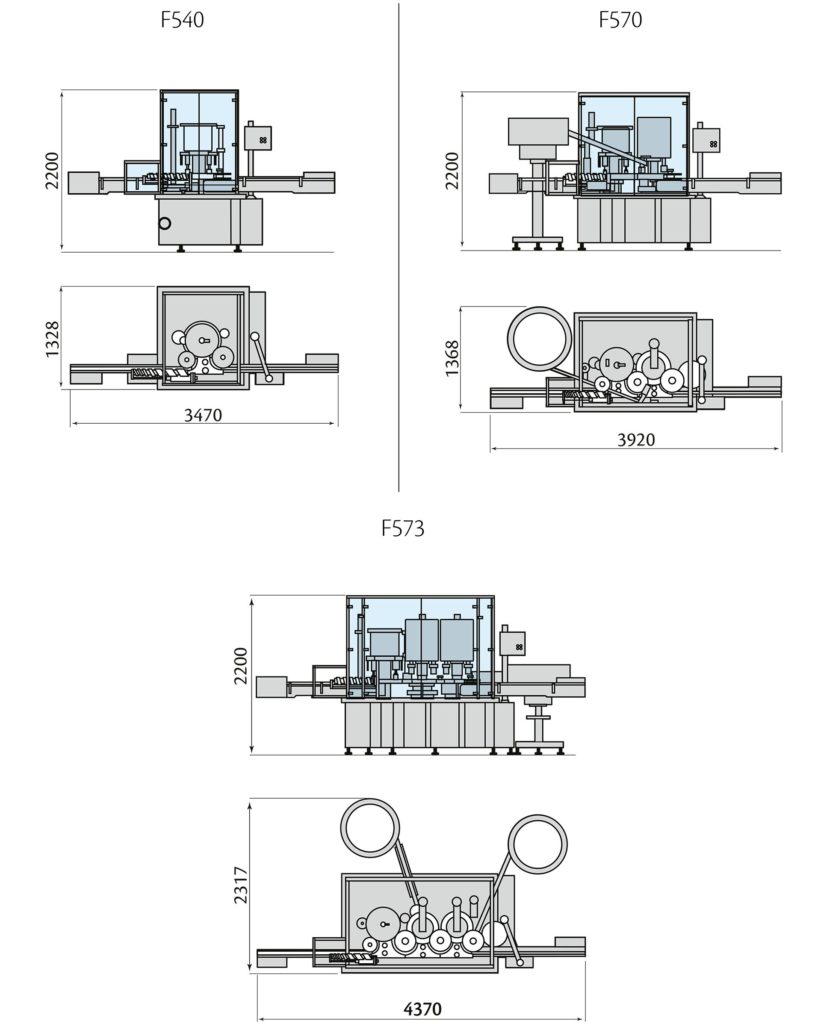

MULTIFILL F500 Layout

MULTIFILL F500 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Multifill F550 general machine overview
search
Multifill F572 front view
search
Multifill F540 filling overview
search
Multifill F550 internal overview
search
Multifill F550 screw cap pick & place
search
Multifill F550 overcup tear off
search
Multifill F550 overcup application
search
Multifill F550 nasal spray application
search
Multifill F500 overcup application
