MINIFAST
Pilot freeze dryer

The MINIFAST range of freeze dryers is the connecting factor between a typical bench-top freeze dryer used in the laboratories and the GMP production scale ones.

The MINIFAST range of freeze dryers is the connecting factor between a typical bench-top freeze dryer used in the laboratories and the GMP production scale ones.

Advanced. Mini. Fast.

The MINIFAST provides the customer with the direct ‘line of sight’ required by the FDA between the pilot type freeze dryer that is suitable for scale-up and the larger full production freeze dryers.

The product is available in MINIFAST 04 and MINIFAST 10 configurations, with shelf areas of 0.4 and 1.1 m2.

Product shelves are designed and manufactured using the IMA Life patented FUSION™ design to enhance performance, reduce operating costs and increase reliability.

IMA Life
settings_applications Production Plant
IMA Life Beijing

MINIFAST Highlights

1.
Pilot scale for R&D and small production batches.
2.
Rectangular chamber in AISI 304L.
3.
Shelf areas available from 0.4 m2 and 1.1 m2.
4.
80 mm as standard shelf interdistance.
5.
Ice condenser capacity range from 8 kg to 20 kg
MINIFAST ice condenser capacity range from 8 kg to 20 kg, with minimum condensing temperatures of -85°C as standard.
  • Technical Data
  • Machine Layout
MINIFAST TECHNICAL DATA
Model Shelf Area Range (m2) Shelf Spacing and Alternative (mm) Shelf Size (w x d) (mm) Number of Shelves and Alternative Maximum vials loading capacity (2R vial) Min. Condenser Capacity (kg @ 12.7 mm ice)
Minifast 04 0.4 80/120 315 x 455 x 18 3/2 1,701/1,134 8
Minifast 10 1.1 80/160 315 x 455 x 18 4/2 4,536/2,268 20

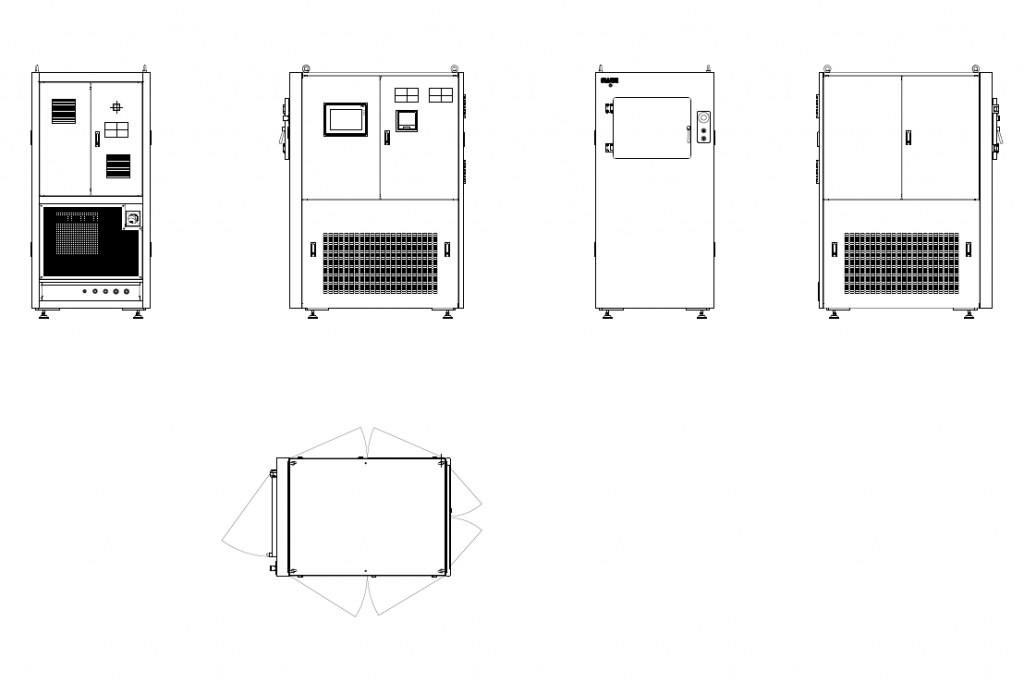

MINIFAST Layout

MINIFAST Gallery

keyboard_arrow_left
keyboard_arrow_right
search

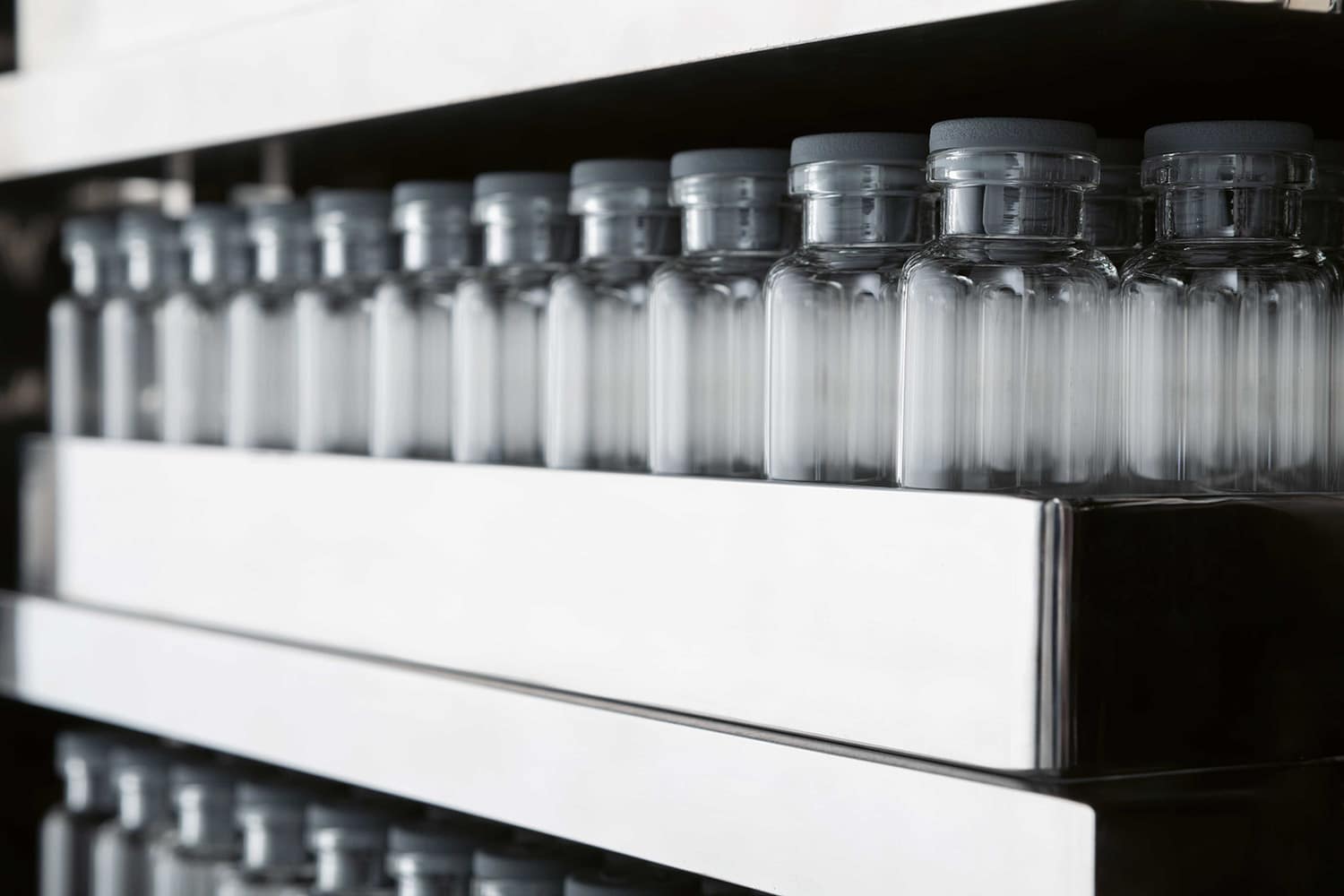

Minifast, Vial Loading
search

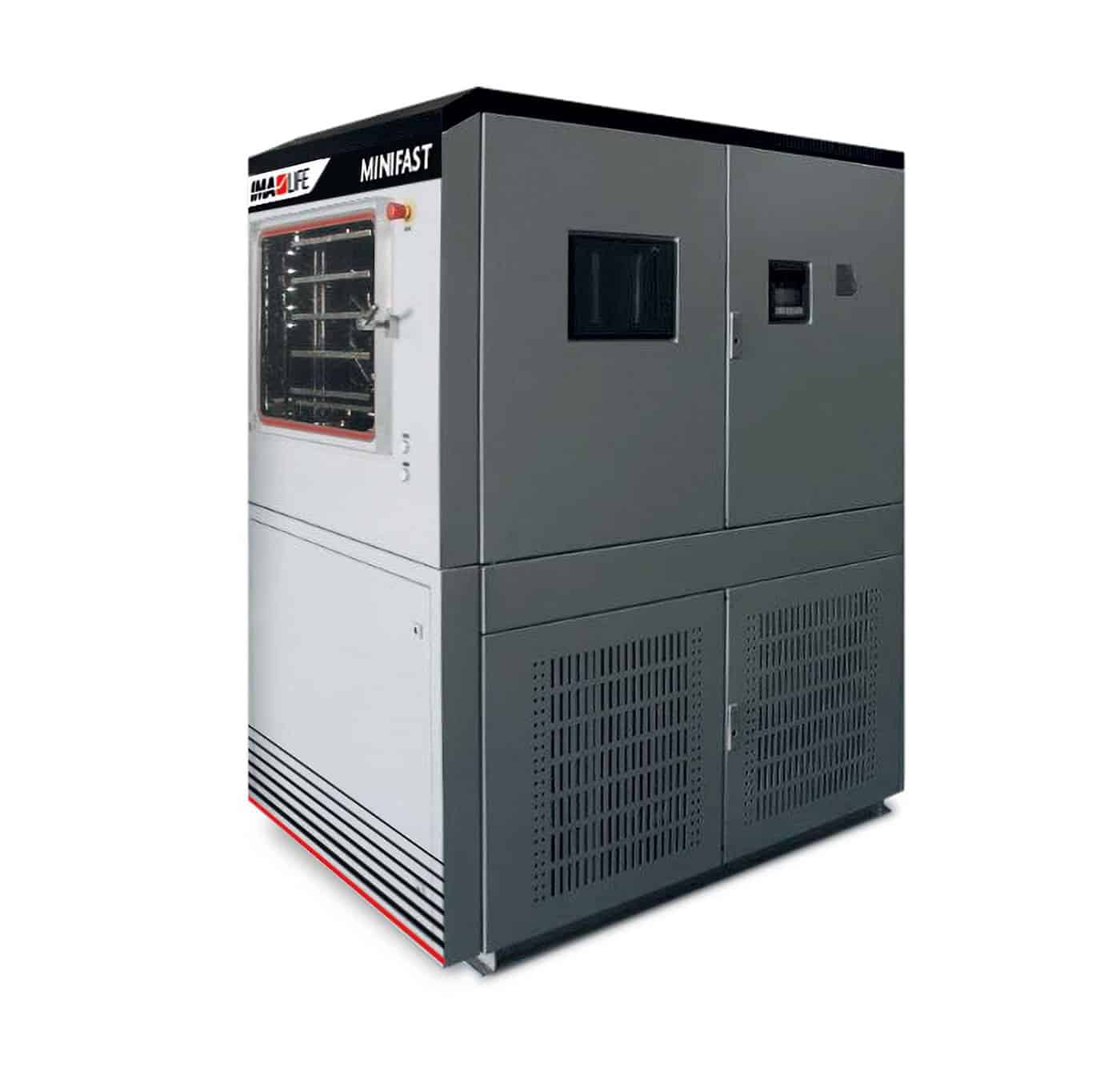

Minifast, General overview
search
Minifast, Internal view
search
Minifast, Side view
search
Minifast, Slot door
