LYOFAST MINI
Pilot Freeze Dryer

The new compact LYOFAST MINI range of freeze dryers provides the link between laboratory development, pilot and industrialized production.

The new compact LYOFAST MINI range of freeze dryers provides the link between laboratory development, pilot and industrialized production.

The new lyo generation

Because the cost of the specialized equipment required for freeze drying can be substantial, the process may appear to be an expensive undertaking. However, savings realized by stabilizing an otherwise unstable product at ambient temperatures, thus eliminating the need for refrigeration, more than compensate for the investment in freeze drying equipment.

Freeze drying of the initial scale up batches provides an opportunity to test the robustness of the process, to understand the future technology requirements for industrial production, and to optimize the process, thus reducing the energy requirement and downstream production costs, adding commercial value to your product.

To cope with market drivers, LYOFAST MINI series of freeze dryers have been developed to be suitable for the following applications: product development and process cycle optimization, up scaling of the process for later use in production plants and small-scale production especially for biotech customers.

IMA Life
settings_applications Production Plant
IMA Life Beijing

LYOFAST MINI Highlights

1.
Four different configurations available, from 1 to 2.8 m2.
2.
CIP-SIP included.
3.
Slot door suitable for RABS/isolator integration.
4.
Variable shelf interdistance.
5.
Automatic stoppering pressure control.
6.
Redundant shelf inlet temperature probes.
7.
Lyomaster compact SCADA.
LYOFAST MINI can be easily integrated with UAF, RABS, isolators, automatic and semi-automatic loading and unloading systems.
  • Technical Data
  • Machine Layout
LYOFAST MINI TECHNICAL DATA
Model Shelf Area Range (m2) Shelf Spacing and Alternative (mm) Shelf Size (w x d) (mm) Number of Shelves and Alternative Maximum vials loading capacity (2R vial) Min.Condenser Capacity (kg @ 12.7 mm ice)
Lyofast mini 1.1 1.1 130 643 x 615 x 18 3 4,536 28
Lyofast mini 1.5 1.5/1.1 110/130 643 x 615 x 18 4/3 6,048/4,536 28
Lyofast mini 2.2 2.2 130 643 x 916 x 18 4 9,216 58
Lyofast mini 2.8 2.8/2.2 110/130 643 x 916 x 18 5/4 11,520/9,216 58
LYOFAST MINI Layout LYOFAST MINI Layout LYOFAST MINI Layout LYOFAST MINI Layout

LYOFAST MINI Gallery

keyboard_arrow_left
keyboard_arrow_right
search

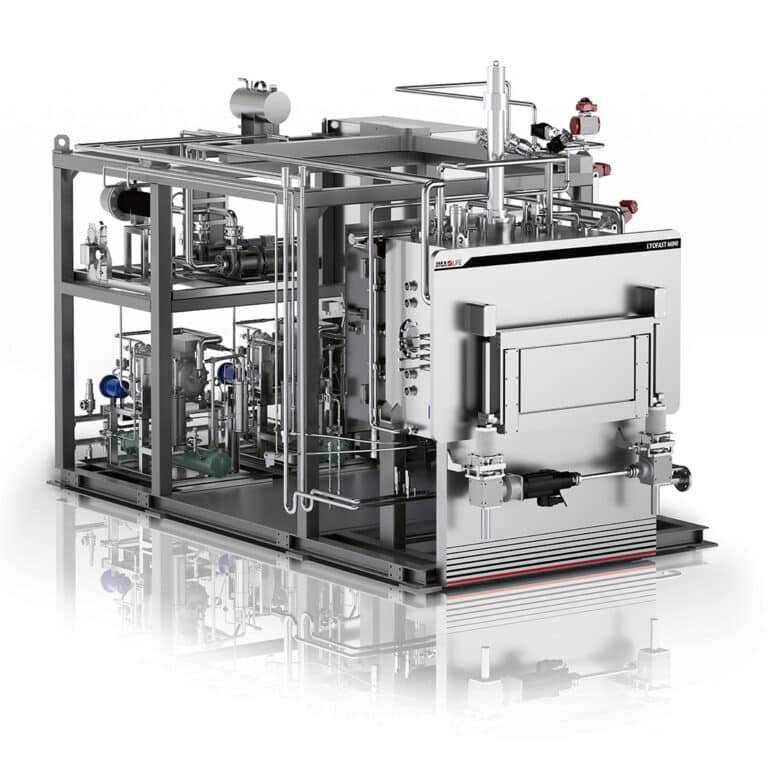

General side view
search
Internal front view
search
Shelf stack internal details
search
Shelf stack overview
search
Shelf stack detail
search
Main door front view
