LYOFAST
Industrial Freeze Dryer
Freeze-drying of biopharmaceuticals has become a routine procedure, which leads to an increase in product stability. LYOFAST is the pre-engineered cost-effective, reliable and efficient standard solution.
Freeze-drying of biopharmaceuticals has become a routine procedure, which leads to an increase in product stability. LYOFAST is the pre-engineered cost-effective, reliable and efficient standard solution.
More than a standard solution
The freeze drying process has important applications in the pharmaceutical and biotechnology industries, and pharmaceutical freeze drying is now a standard process used to stabilize, store or increase the shelf life of drug products and other biologicals.
LYOFAST is IMA Life solution to keep freeze-drying competitive as a pharmaceutical processing step.
For either bulk format or liquid in vials, ampoules or syringes, the LYOFAST units are designed for freeze drying high value products, such as: vaccines, antibiotics, cytostatics, biologicals, hormones, active ingredients, and reactives.
nature_people
Sustainability
IMA Lyofast freeze dryers embody the requirements of the pharmaceutical industry for faster, safer, cheaper and more ecologically friendly processes:
• The IMA Life patented FusionTM shelves reduce energy consumption typically in heating, cooling and steam sterilization thus achieving a reduction in energy costs and fast temperature response. The FusionTM shelves allow for a 20% reduction in weight leading to reduced energy consumption during freeze drying and sterilization.
• PAT tools reduce overall process time and energy consumption.
settings_applications
Production Plant
IMA Life Beijing

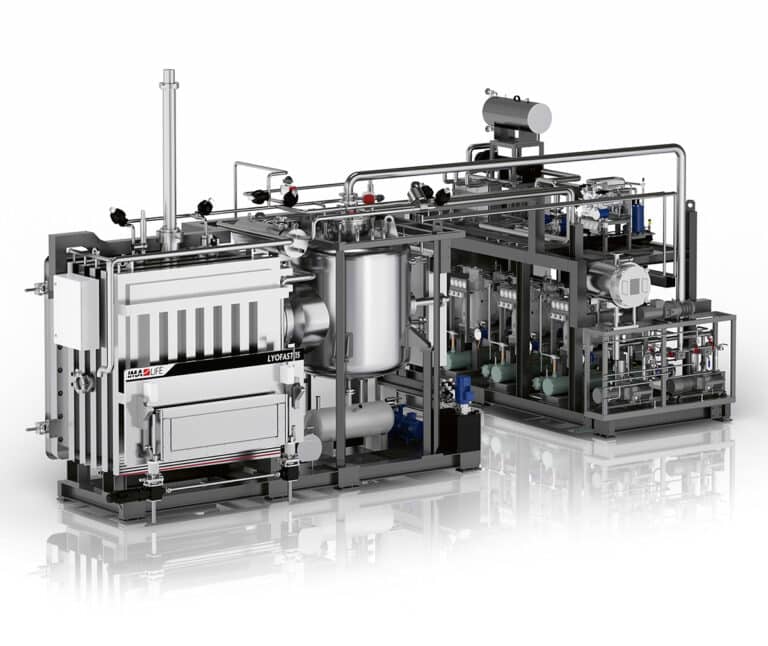

LYOFAST Highlights
1.
Freeze drying areas from 4 m2 to 50 m2.
2.
Cylindrical or rectangular chamber with separate ice condenser.
3.
Two stage reciprocating semi-hermetic, water-cooled refrigeration system.
4.
Shelf cooling to -55°C and condenser cooling to -75/120°C. HFC refrigerants with direct expansion.
5.
Variable shelf interdistance and integrated design with the loading system.
6.

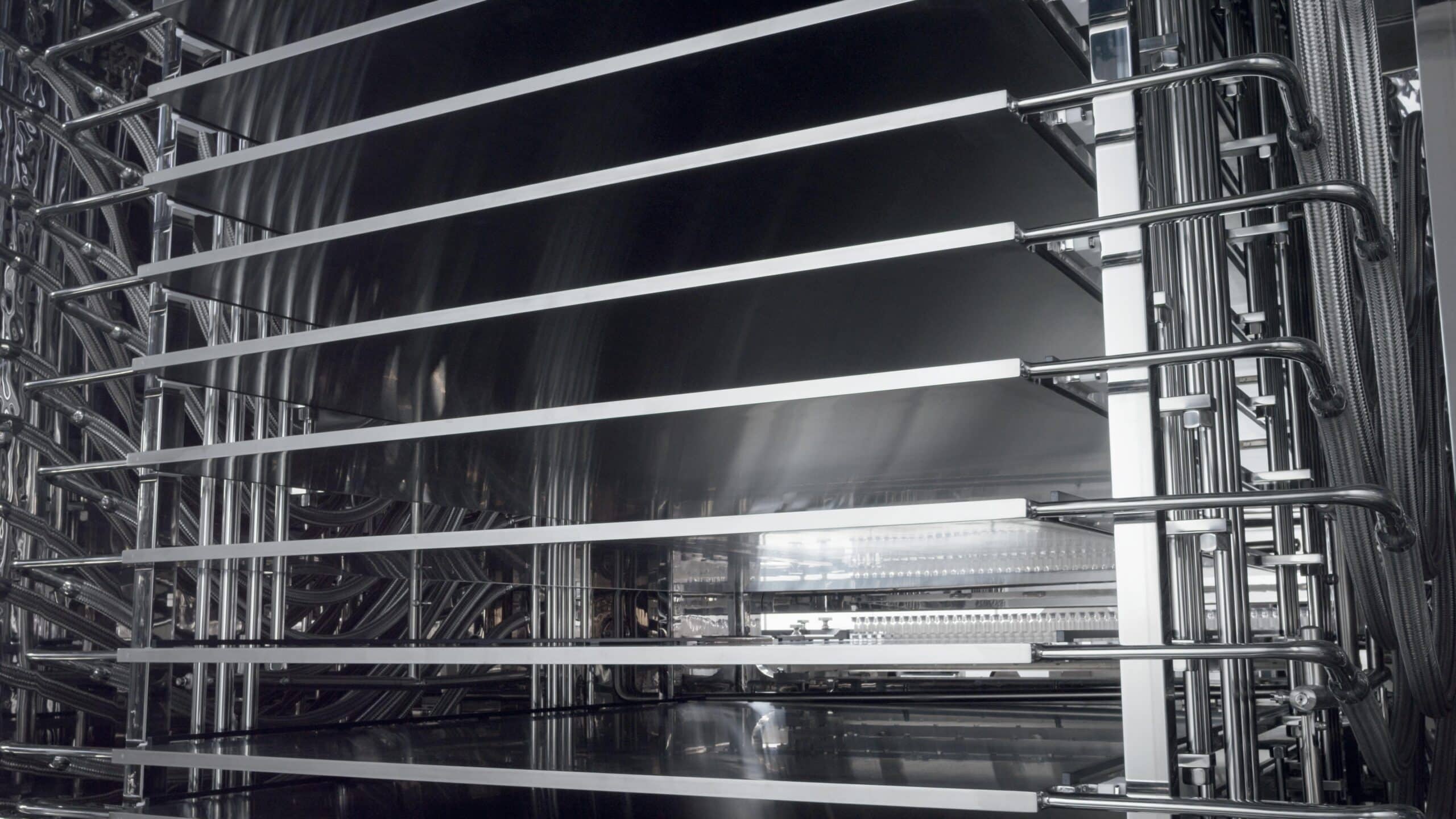

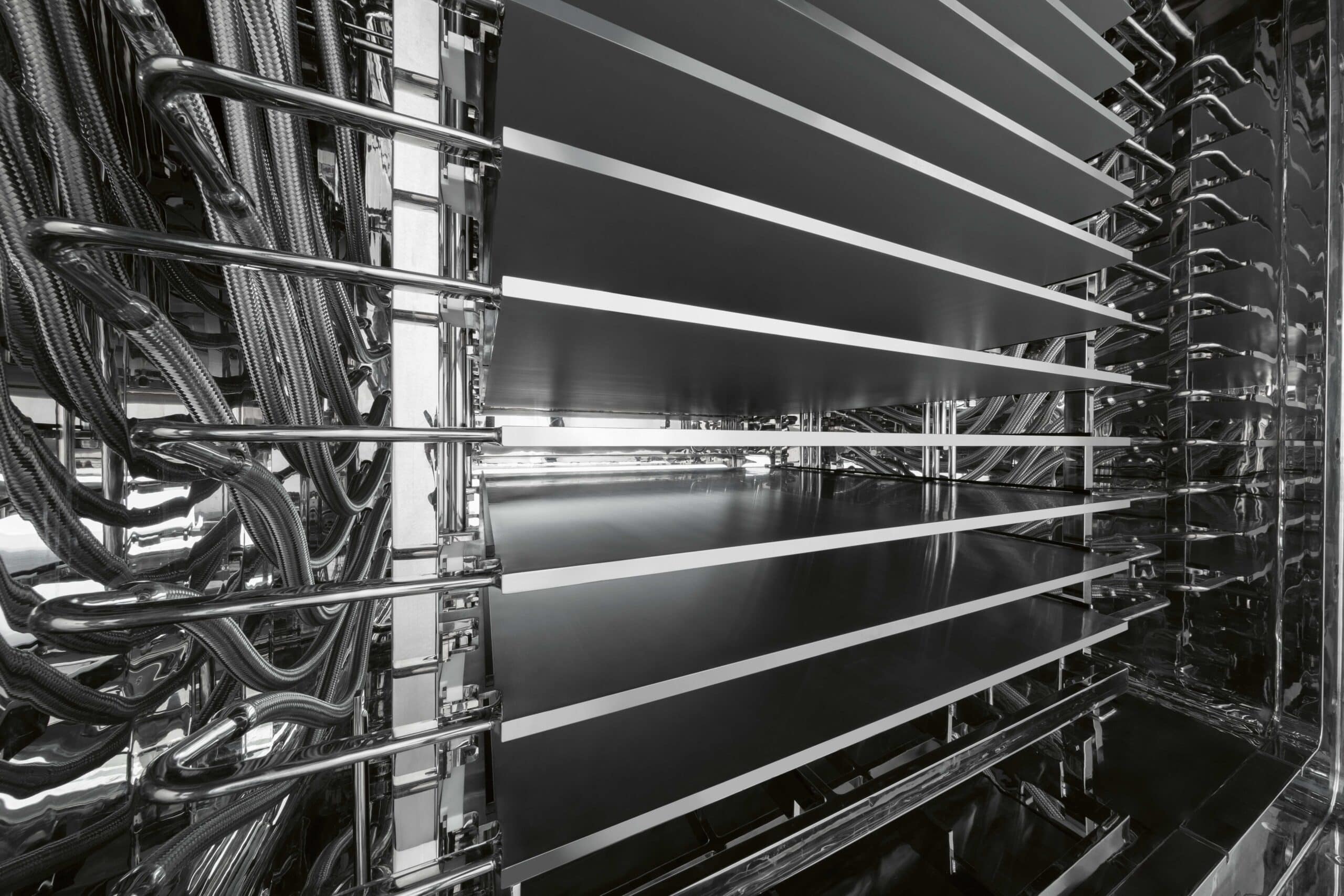

FUSION™ shelves in AISI 316L with brushed satin finish, mirror finished edges and 0.5 mm/m flatness.
7.
Vertical sliding slot door.
8.
Vacuum measurements with active Pirani type gauge.
By constructing the LYOFAST freeze dryer from a series of standard modules, IMA Life is able to compress project schedules and reduce lead-times, even with large capacity equipment, with significant cost-savings.
IMA Life's FUSION™ - FUSION PLUS™ shelves
- Technical Data

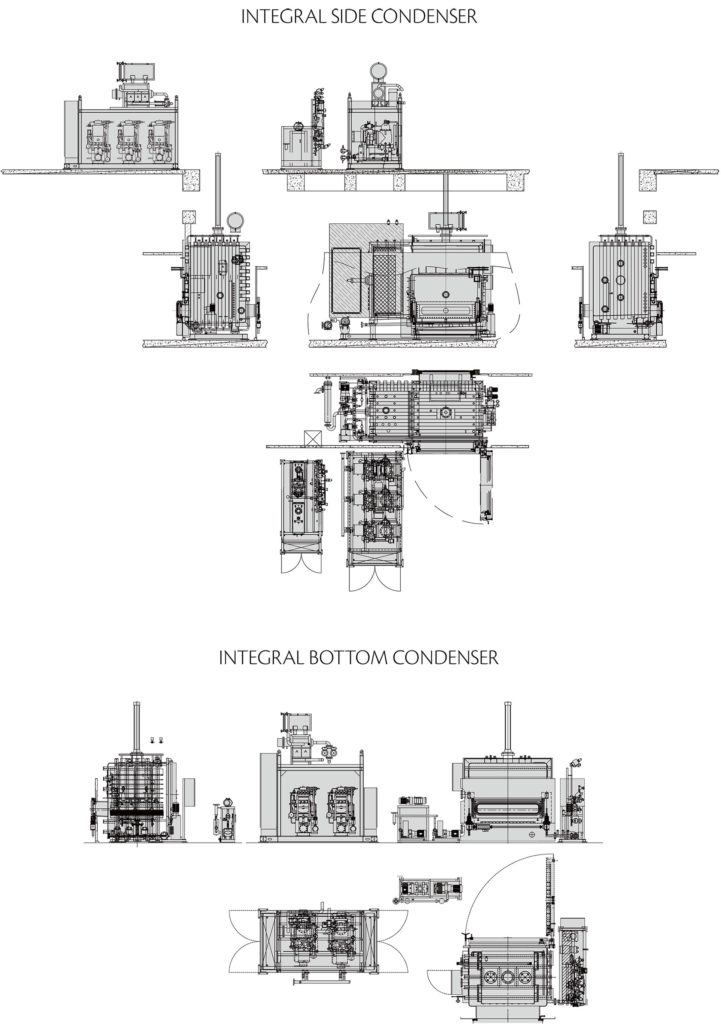

- Machine Layout
| LYOFAST TECHNICAL DATA | ||||||||
| Model | Chamber/Condenser Geometry | Min.condenser capacity (kg@12.7 mm ice) | Manual Loaded | Auto Loaded | ||||
| Shelf area up to (m2) | N. of usable shelves up to | Maxi. vials loading capacity (2R vial) | Usable Shelf area range (m2) | N. of shelves up to | Max. vials loading capacity (2R vial) | |||
| Lyofast 1 | Cylindrical Integral | 27 | 1.4 | 5 | 5,700 | – | – | – |
| Lyofast 3 | Cylindrical Integral | 67 | 2.8 | 5 | 11,500 | – | – | – |
| Lyofast 5 | Cylindrical Integral | 101 | 5.1 | 9 | 20,700 | – | – | – |
| Lyofast 7 | Cylindrical Integral | 148 | 7.8 | 7 | 46,600 | – | – | – |
| Lyofast 5 | Rectangular Integral | 92 | 5.9 | 7 | 24,100 | 5.4 | 7 | 23,700 |
| Lyofast 7 | Rectangular Integral | 136 | 7.4 | 5 | 30,200 | 7.0 | 5 | 30,900 |
| Lyofast 10 | Rectangular Integral | 186 | 10.4 | 7 | 42,300 | 9.7 | 7 | 43,300 |
| Lyofast 15 | Rectangular Integral | 252 | 16.3 | 7 | 66,100 | 15.4 | 7 | 68,700 |
| Lyofast 5 | Rectangular Integral | 97 | 5.4 | 7 | 24,100 | 5.4 | 7 | 23,700 |
| Lyofast 7 | Rectangular Integral | 143 | 7.8 | 7 | 31,700 | 7.3 | 7 | 32,400 |
| Lyofast 10 | Rectangular Integral | 194 | 12.3 | 11 | 49,800 | 11.5 | 11 | 50,900 |
| Lyofast 15 | Rectangular Integral | 273 | 17.9 | 12 | 72,500 | 16.7 | 12 | 74,200 |
| Model | Chamber/Condenser Geometry | Min.condenser capacity (kg@12.7 mm ice) | Manual Loaded | Auto Loaded | ||||
| Shelf area up to (m2) | N. of usable shelves up to | Maxi. vials loading capacity (2R vial) | Usable Shelf area range (m2) | N. of shelves up to | Max. vials loading capacity (2R vial) | |||
| Lyofast 20 | Rectangular Integral | 359 | 22.3 | 12 | 90,700 | 21.2 | 12 | 94,200 |
| Lyofast 25 | Rectangular Integral | 455 | 26 | 14 | 105,800 | 24.7 | 14 | 109,900 |
| Lyofast 30 | Rectangular Integral | 529 | 32.5 | 14 | 132,300 | 30.8 | 14 | 137,500 |
| Lyofast 35 | Rectangular Integral | 635 | 36.3 | 13 | 149,700 | 34.7 | 13 | 154,700 |
| Lyofast 40 | Rectangular Integral | 731 | 41.8 | 15 | 195,800 | 40 | 15 | 178,600 |
| Lyofast 20 | Rectangular Cylindrical | 376 | 22.3 | 12 | 90,700 | 21.2 | 12 | 94,200 |
| Lyofast 25 | Rectangular Cylindrical | 476 | 26 | 14 | 105,800 | 24.7 | 14 | 109,900 |
| Lyofast 30 | Rectangular Cylindrical | 553 | 32.5 | 14 | 132,300 | 30.8 | 14 | 137,500 |
| Lyofast 35 | Rectangular Cylindrical | 635 | 36.3 | 13 | 149,700 | 34.7 | 13 | 154,700 |
| Lyofast 40 | Rectangular Cylindrical | 731 | 41.8 | 15 | 195,800 | 40 | 15 | 178,600 |
