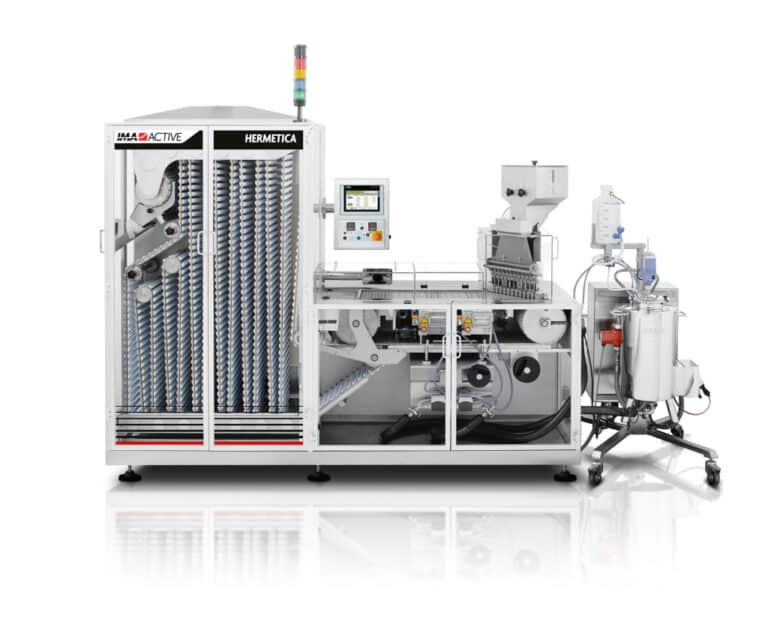

HERMETICA
Capsule banding machine

Suitable for tamper-evident capsule sealing, HERMETICA, born from experience that began in the 1970s, has an ergonomic layout guaranteeing maximum visibility and best accessibility to each phase of the process.

Suitable for tamper-evident capsule sealing, HERMETICA, born from experience that began in the 1970s, has an ergonomic layout guaranteeing maximum visibility and best accessibility to each phase of the process.

The key for perfect capsule sealing.

HERMETICA fits the purpose of sealing capsules filled with liquid, powder or other products. Banding is achieved through the application of a liquid gelatine ring on the external surface of the capsule.

IMA Active
settings_applications Production Plant
IMA Active

HERMETICA Highlights

1.
Good accessibility and easy operations: balcony structure, low positioning of capsule feeding unit and exit chute.
2.
Two rollers with independent speed regulation for double application of the gelatine band.
3.
Pre-drying unit to guarantee fast fixing of the gelatine band before transferring the capsules into the drying box.
4.
Unclogging system improving machine functioning.
5.
Fast and easy size changeover: both sealing and drying transport plates contain a double row of capsules, thus halving the pieces to change and clean.
6.
Machine can be installed in-line with IMA capsule filling machines.
Equipped with two separate gelatine bowls with independent control, HERMETICA allows the adjustment of gelatine temperature and the automatic control and hold of gelatine viscosity.
  • Technical Data
  • Machine Layout
TECHNICAL DATA HERMETICA
Model HERMETICA 50 HERMETICA 100
Maximum output (capsules/hour) 50,000 100,000
Capsule size 00 – 0 – 1 – 2 – 3 – 4 (000 as an option)
Number of capsules per row 11
Distance between rows (mm) 19.05
Number of slats for sealing 74
Number of carriers for drying 306 612
Drying time 7’ 20”
Sealing disc shaft (pieces) 2 – independent speed
Gelatine bowl (pieces) 2 – independent
Maximum installed power (kW) 6
Standard voltage 230/400 V (±10%) – 50/60 Hz
DRYING AIR UTILITY REQUIREMENTS
Depression (mm H₂O) 3,200
Capacity (m³/h) 1,400
Temperature (°C) 18-22
Humidity 25-35%
HERMETICA Layout

HERMETICA Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Capsule feeding and orientation
search
Gelatine bowls
search
Drying box
search
Capsule exit
search
Unclogging
