GS HT- HE- HP
Coating pans

GS Coating Equipment features innovative technology with an awareness of the issues related to environment, energy saving and reliability. Available in different models, GS machines allow the processing of all product sizes.

GS Coating Equipment features innovative technology with an awareness of the issues related to environment, energy saving and reliability. Available in different models, GS machines allow the processing of all product sizes.

The coating pan that made history.

GS Coating Equipment can be equipped with exhausting and/or blowing paddles to perform tablet film and sugar coating as well as to process pellets and microgranules. The solid wall pan guarantees excellent results with all product shapes.

IMA Active
settings_applications Production Plant
IMA Active

GS HT- HE- HP Highlights

1.
Perfect mixing and uniform distribution of coating material thanks to the shape of the pan and surface smoothness.
2.
Patented drying system.
3.
Different paddle sizes for higher flexibility in terms of pan working capacities.
4.
Automatic product load and discharge.
The cleaning operations are fast and simple due to the use of a solid wall pan. Different cleaning programmes, comprising washing, rinsing and discharge, can be developed according to different products and stored in the recipes.

Lab Version.

Using the same highly advanced technologies as those developed for the production range, GS laboratory equipment allows maximum flexibility and easy scale-up. A high degree of automation ensures easy operations and maintenance procedures can be applied.

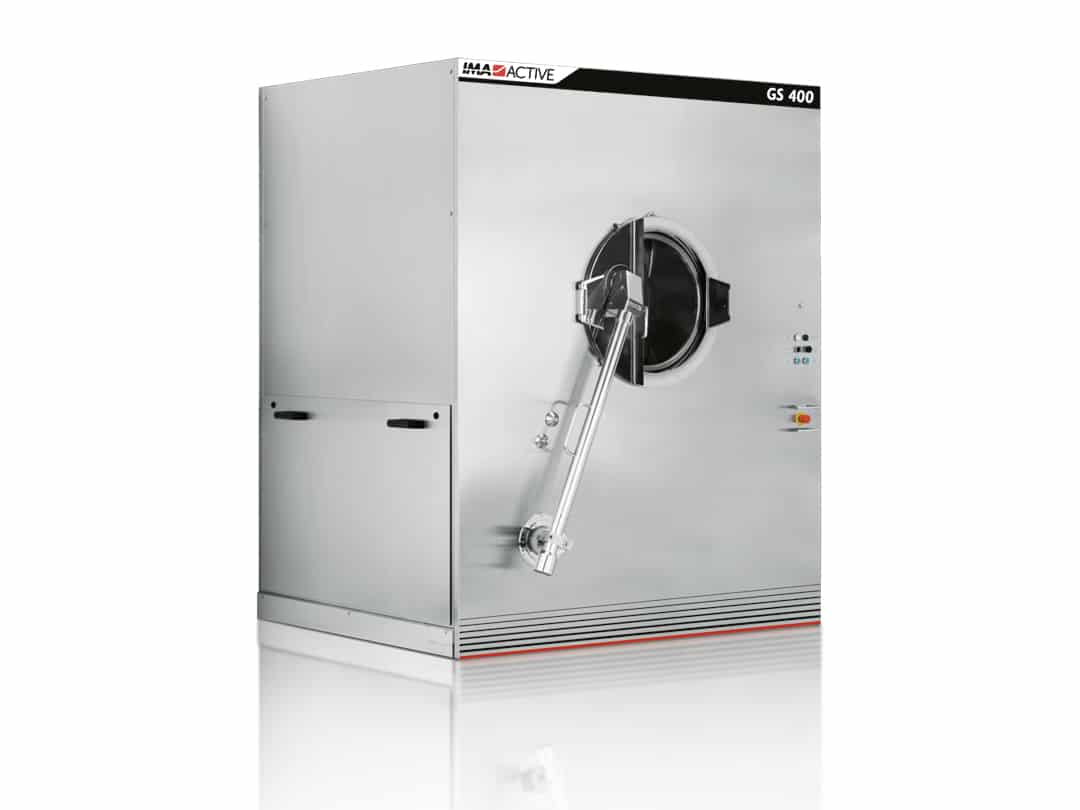

GS HT- HE- HP Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA GS HT – HE – HP
Model GS 70 GS 150 GS 300 GS 400 GS 600
Minimum/maximum working capacity (l)* 40÷70 70÷150 150÷300 200÷400 350÷600
Pan diameter (mm) 1,050 1,280  1,580 1,630  2,000
Pan mouth diameter (mm) 400 450  520   730
Pan motor power (kW) 1.1 1.5  3 4 5.5
Process air delivery (m³/h) 800 1,100 2,000 2,500 3,500
Power consumption for standard equipment (kW)** 10 12 20 25 30
* Approximate data (depending on core shape and specific weight)
** Approximate data (depending on equipment configuration)



TECHNICAL DATA GS LABORATORY EQUIPMENT
Model HT 0.5-3*** HT 3 HT 10 HT-HP 25
Minimum/maximum working capacity (l)* 0.5÷4 2÷4 5÷12 13÷25
Pan diameter (mm) 450 600 800
Pan mouth diameter (mm) 215  300
Pan motor power (kW) 0.22 0.37
Process air delivery (m³/h) 80 150 350
Power consumption for standard equipment (kW)** 6 10 14
* Approximate data (depending on core shape and specific weight)
** Approximate data (depending on equipment configuration)
***Interchangeable drum
GS HT- HE- HP Layout

GS HT- HE- HP Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Film coating
search
Pellet processing
search
Powder dosing device
search
Solid wall pan
search
Product unloading
