DYNAMICA
Continuous motion cartoner

DYNAMICA Series multipurpose continuous motion cartoner is available in three versions, according to the product specifications, carton dimension sizes and speed. It grants the maximum versatility in terms of applications, infeed systems and carton size range.

DYNAMICA Series multipurpose continuous motion cartoner is available in three versions, according to the product specifications, carton dimension sizes and speed. It grants the maximum versatility in terms of applications, infeed systems and carton size range.

Beyond the limit of the maximum flexibility

Flexibility as key feature: this Series offers the widest range of products to be packed, carton dimension range and applications. Moreover, DYNAMICA S version is able to combine both the continuous and the intermittent motion depending on the product fed.

The ergonomics, in terms of carton magazine, product flow and leaflet folding unit heights, is maximum. Last but not least, DYNAMICA is also compact but at the same time easy to manage and intuitive to set up.

nature_people

Sustainability

This system allows the use of recycled cardboards.

IMA Safe
settings_applications Production Plant
IMA Safe

DYNAMICA Highlights

1.
Multi-purpose.
2.
Feeding systems: wide range of solutions to pack different products.
3.
Very wide cartons sizes range.
4.
IMA Safe Roll-One, leaflet folding unit.
5.
Ergonomic design.
6.
Very easy to manage and intuitive.
Cost effective and flexible feeding systems are available at IMA Safe, which offer a wide range of solutions for both pharma and extra pharma fields.
  • Technical Data
  • Machine Layout
TECHNICAL DATA DYNAMICA
  Width (A) Height (B) Lenght (H) Production output
DYNAMICA L min 25 – 130 max min 12 – 90 max min 65 – 200 max Up to 250 cartons/min.
DYNAMICA E min 30 – 90 max min 15 – 65 max min 100 – 250 max Up to 300 cartons/min.
DYNAMICA S min 25 – 95 max min 12 – 90 max min 65 – 200 max Up to 350 cartons/min.
DYNAMICA V min 25 – 95 max min 12 – 90 max  min 65 – 150 max Up to 400 cartons/min.

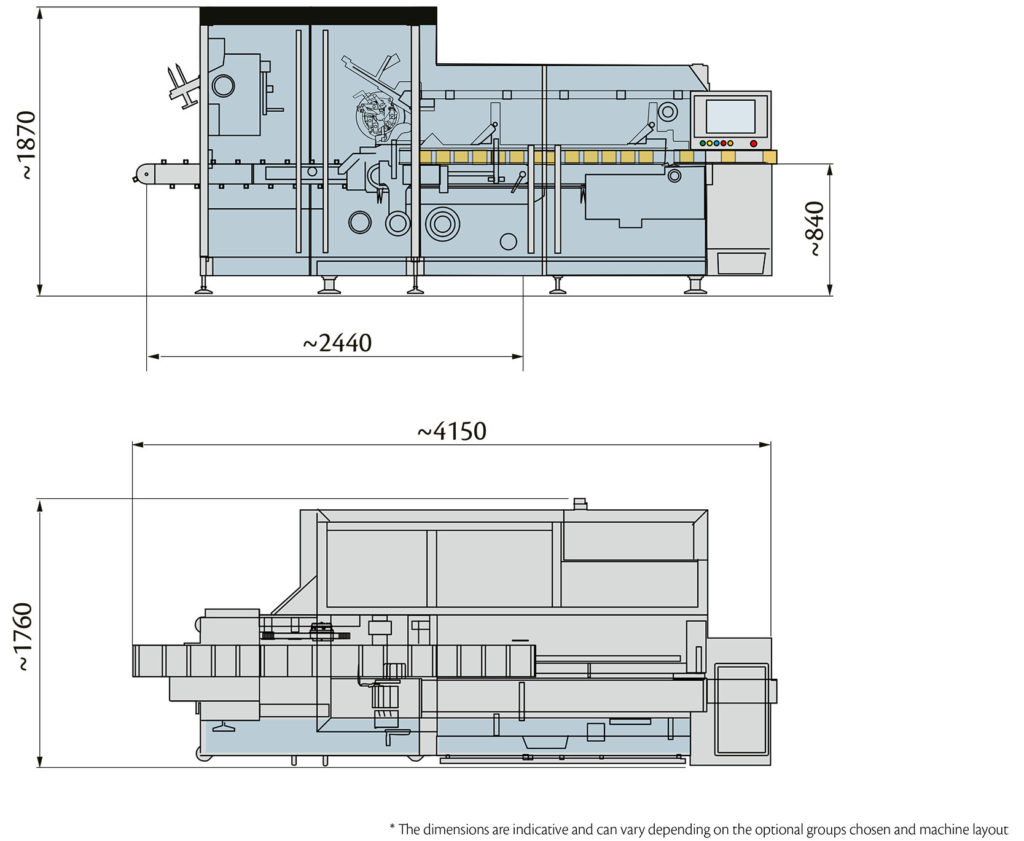

DYNAMICA Layout

DYNAMICA Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product transport
search
Carton magazine
search
Carton pick-up and opening
search
IMA Safe Roll-One
search
Product insertion into the carton
