DA VINCI
Wireless Vial Loading & Unloading System

Automated vial loading & unloading systems for industrial freeze-dryers reduce the risk of contamination from humans and the operative costs while enhancing efficiency. But if you add to this the unique design concept of the DA VINCI loader you get much more.

Automated vial loading & unloading systems for industrial freeze-dryers reduce the risk of contamination from humans and the operative costs while enhancing efficiency. But if you add to this the unique design concept of the DA VINCI loader you get much more.

All great inventions are based on simple ideas

DA VINCI is the ultimate example of IMA Life’s ability to capitalize on indepth application experience to deliver simple design concepts for improved automation, enhanced performance and lowered operating costs.

The mechanism used to move vial packs into and out of the lyo is based on the unique concept of a stand-alone battery driven transfer module.

Communication with the machine is fully wireless.

IMA Life
settings_applications Production Plant
IMA Life

DA VINCI Highlights

1.
Easy integration in aseptic environment. Suitable for open/closed RABS or for isolator containment.
2.
Fully independent, self-driven and stand-alone transfer unit for vial pack movements in and out of the freeze-dryer.
3.
All devices of the loading system are installed inside the perimeter of the loader base plate. No protruding elements such as front-or back pusher.
4.
Wireless communication with the vial transfer unit.
5.
Position verification based on laser principle.
6.
Suitable for loading and unloading time up to 8 hours, without battery recharging. Easy and simple change over of battery.
7.
Suitable for “ambient” and “cold” shelf loading.
8.
Minimum need for FIFO integration track between exit filler and infeed loader as well as between exit loader and capper infeed.
The extremely neat design of the DA VINCI loader is based on the complete absence of actuating pushing mechanism installed in front or back of the freeze dryer giving birth to an extremely compact footprint.
  • Technical Data
  • Machine Layout
TECHNICAL DATA DA VINCI
Standardized shelf dimensions for fixed systems
Gross shelf (mm) Fixed net (mm) Manual net (mm)
942 x 916 914 x 837 916 x 916 (tray: 454 x 300)
942 x 1,220 914 x 1,141 916 x 1,220 (tray: 454 x 300)
942 x 1,524 914 x 1,445 916 x 1,524 (tray: 454 x 300)
1,248 x 1,220 1,220 x 1,141 1,222 x 1,220 (tray: 404 x 300)
1,248 x 1,524 1,220 x 1,445 1,222 x 1,524 (tray: 404 x 300)
1,552 x 1,524 1,524 x 1,445 1,526 x 1,524 (tray: 506 x 300)
1,248 x 1,830 1,220 x 1,751 1,222 x 1,830 (tray: 404 x 300)
1,552 x 1,830 1,524 x 1,751 1,526 x 1,830 (tray: 506 x 300)

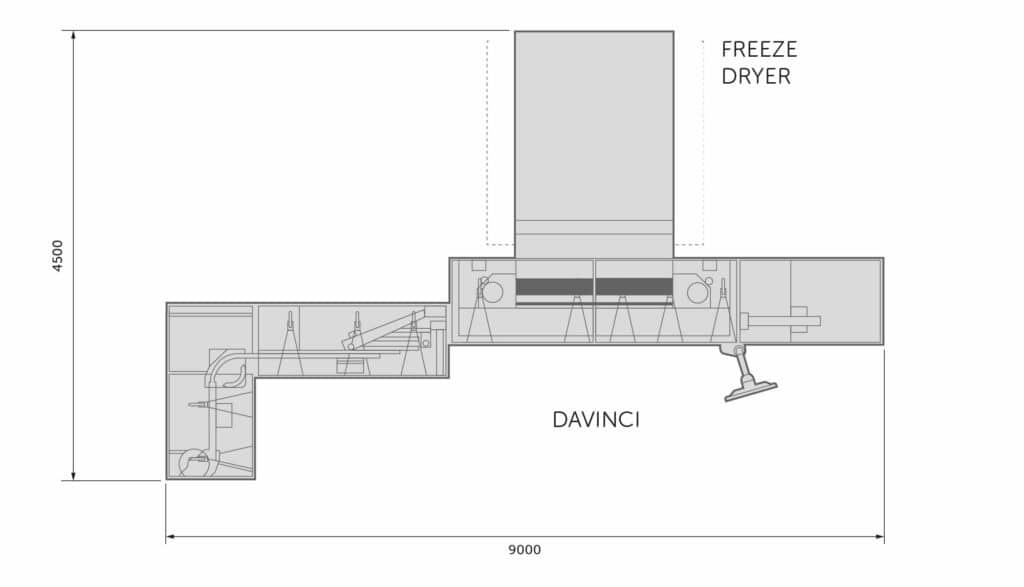

DA VINCI Layout

DA VINCI Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Vial loading
search
Partial pack loading
search
Vial unloading
search
Unloading overview
search
Battery charging
search
De-energyzing button
