CP18 / CP28
Side loading case packing machine

Side loading case packers suited to packaging individual or bundled cartons into pre-glued RS cases. They are compact, accessible and enable simple, tool-free size changeover.

Side loading case packers suited to packaging individual or bundled cartons into pre-glued RS cases. They are compact, accessible and enable simple, tool-free size changeover.

Quality case packing with palletizing option: we make it simple.

Ideal for packaging products such as pharmaceutical items, the machine is suitable for different production needs.  Equipped with a horizontal case magazine for easy loading, the machine keeps the case erect during product insertion with the aid of suction cups fitted to the pick-up and forced opening arms. All the parts of the machine can be reached from the operator’s side without having to walk to the opposite side to reach the carton stacking unit. The machine can be fitted with the following optional groups and features: case overturning, product tracking and camera detection devices, integrated labellers and markers, and can also be fully servo-driven.

The CP Series is available in 2 different versions:

  • CP18: extremely compact footprint
  • CP28: able to absorb high incoming speeds thanks to the pre-stacking unit





nature_people

Sustainability

The IMA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum,
  • the waste materials are minimized,
  • compatibility with the use of recycled materials.
IMA BFB
settings_applications Production Plant
IMA BFB

CP18 / CP28 Highlights

1.
Horizontal case magazine for easy loading.
2.
Cartons pre-stacking station to collate layers of product during the pusher strokes (on CP28 and CP38).
3.
All case flaps are positively closed and verified.
4.
Case fully closed before transportation and taping.
5.
Movable hopper to follow the cartons collation up into the case.
6.
Suitable for Track & Trace purposes.
7.
Further optional groups like liftable pusher to give total visibility of carton layer, labelling module, rejection system.
8.
Possibility to be integrated with all Flex Palletizers.

Case Packer - Palletizer integrated versions

CP18 / CP28 is available in different palletizer-integrated versions, according to the output speed required.

CP18 / CP28 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA CP SERIES

CP18 / CP28

Case dimensions A B C
Min. 220 120 120
Max. 600 400 350
Casepacker output 8 cases/min.



Palletizer output up to 10 cycles/min.

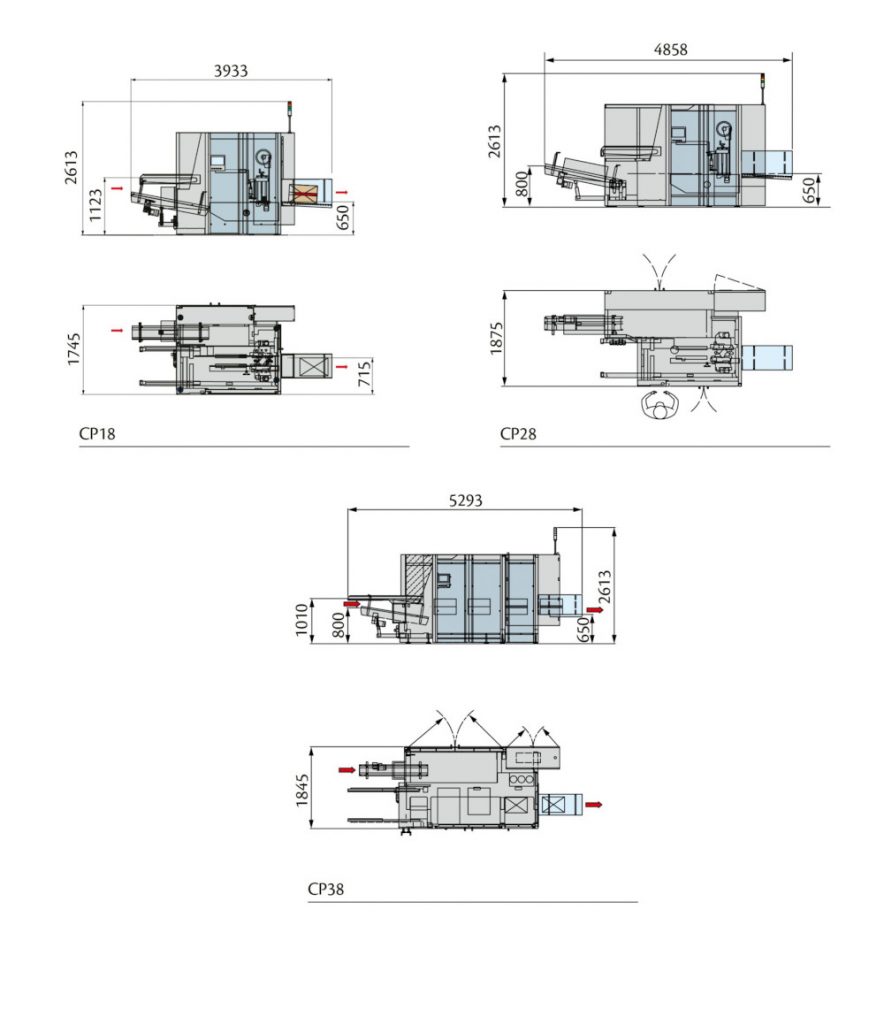

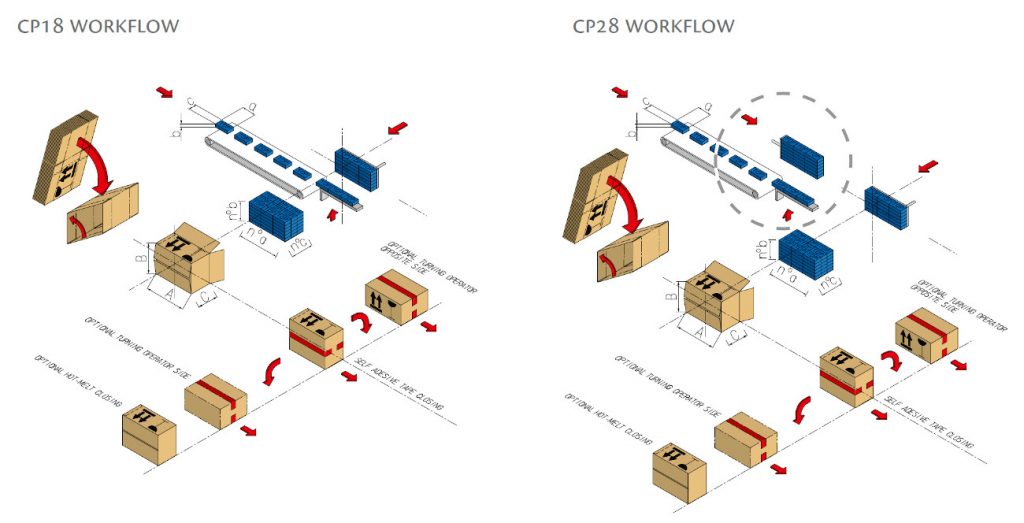

CP18 / CP28 Layout CP18 / CP28 Layout

CP18 / CP28 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Case magazine
search
Two arms positive opening of the case
search
Stacking
search
Main pusher
search
Case closing
search
Case rotation
