C96 - A96

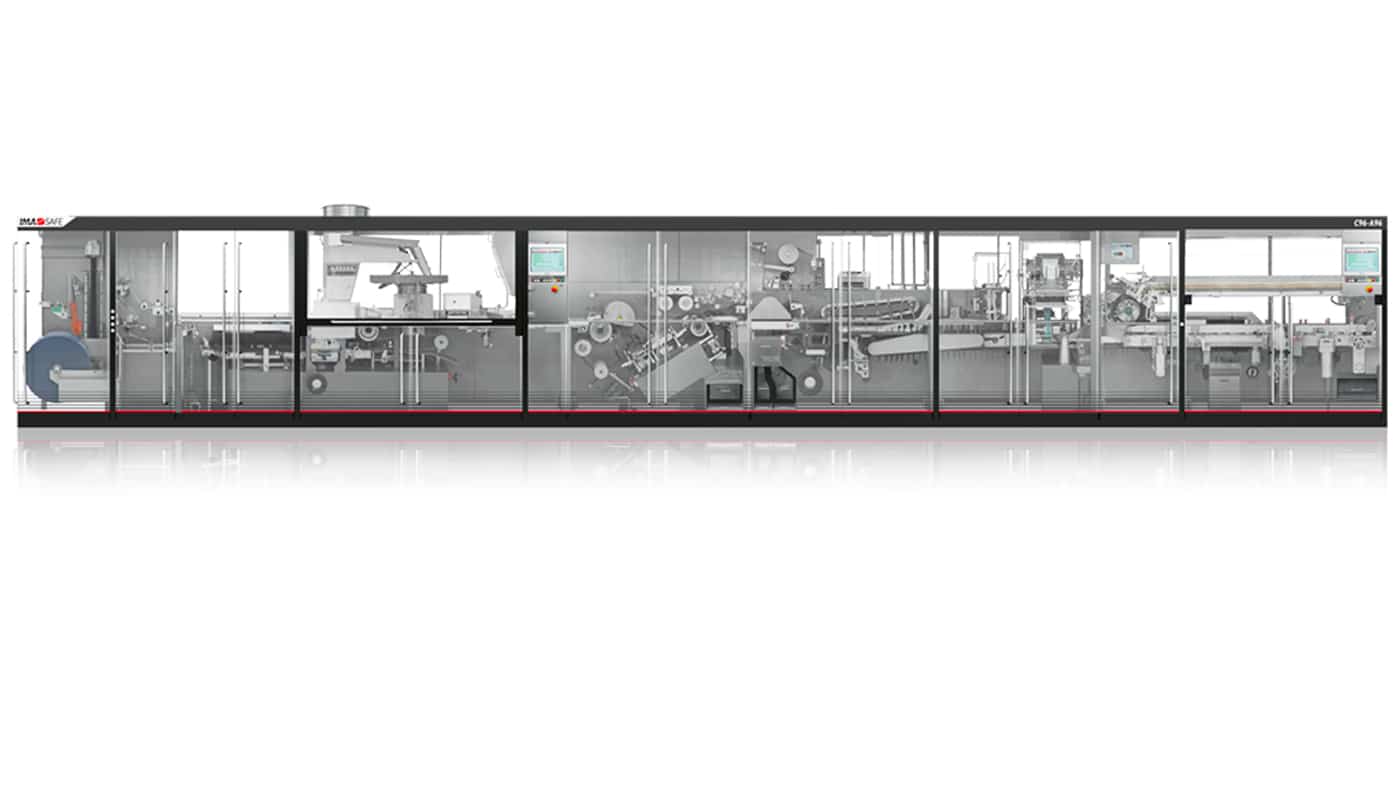

Blister packaging machine with integrated cartoner

C96-A96 is a super high speed blister line designed specifically for those customers who need to produce large batches in a small foot print.

C96-A96 is a super high speed blister line designed specifically for those customers who need to produce large batches in a small foot print.

Faster than you imagine

C96-A96 is designed with high-level technological concepts that guarantee reliability and efficiency throughout the entire packaging process. The line concept is based on continuous running, which offers big advantages in terms of product feeding efficiency and smooth running with all the packaging materials.

The high output is guaranteed also thanks to the positive blister transport which is essential for such a speed blister line.

Despite the super high performance, the C96-A96 is very easy accessible and ergonomic.

nature_people

Sustainability

The IMA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum
  • the waste materials are minimized
  • compatibility with the use of recycled materials
IMA Safe
settings_applications Production Plant
IMA Safe

C96 - A96 Highlights

1.
1,300 blisters/minute in a small foot print.
2.
Continuous running and positive blister transfer.
3.
Complete accessibility and friendly using.
4.
Light format parts: no lifter needed.
5.
Fast and computer-guided changeover.
C96-A96 has been designed for the highest outputs and efficiency that can be reached: 1,300 blister/minute and 500 cartons/minute.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C96 – A96
  Blister dimensions Carton dimensions
Width 30-90 mm 35-95 mm
Length 65-145 mm 70-150 mm
Depth/Height  3-12 mm 12-90 mm
Production output
 Blisters up to 1,300 blisters/min.
 Cartons up to 500 cartons/min.

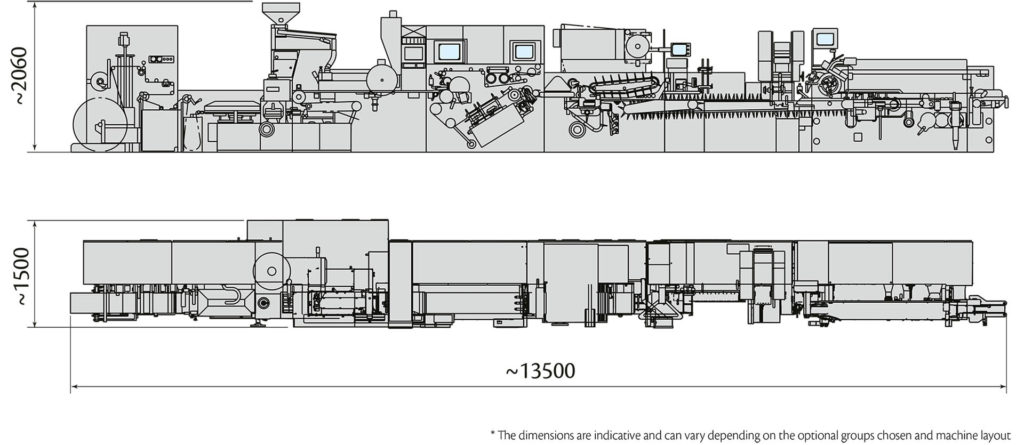

C96 - A96 Layout

C96 - A96 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Forming area
search
Feeding area
search
Sealing area
search
Cutting unit and positive transport
search
Carton magazine
search
Carton pick-up, opening and positioning
