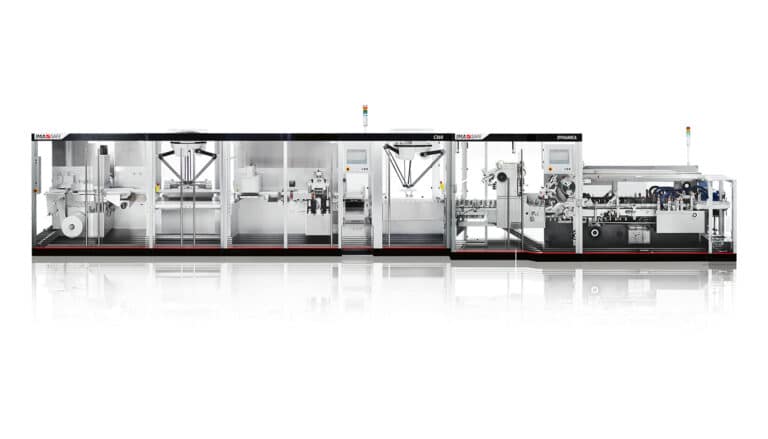

C260/C360
Deep draw thermoforming machines
C260 and C360 are the IMA Safe’s latest trends setting a thermoformer designed for deep draw packaging with a superior flexibility in terms of production applications and modularity.
C260 and C360 are the IMA Safe’s latest trends setting a thermoformer designed for deep draw packaging with a superior flexibility in terms of production applications and modularity.
With all 360° in mind
C260 and C360 are the most compact deep draw thermoforming machines in their range keeping the maximum customisation that exactly meets the customer’s production requirements.
All this is possible thanks to the use of the IMA Safe technology which has developed robotized systems applied in the most critical areas: the product feeding area & the connection to the cartoner.
These machines are not only highly productive but also extremely efficient, size changeover operations are rapid thanks to a reduced number of size parts.
nature_people
Sustainability
This system is able to handle sustainable plastic materials.
settings_applications
Production Plant
IMA Safe
C260/C360 Highlights
1.
Designed to work with the maximum variety of product and trays both having different shapes and sizes.
2.
High performance feeders.
3.
Modularity: possibility to integrate C260 and C360 with different cartoners.
4.
Quick and simple size changeover.
5.
Most compact footprint in its range.
6.
Fully GMP guidelines compliant for pharmaceutical packaging equipment.
A wide range of products, also different in the same tray, can be packed thanks to the use of robotic systems applied to the feeding area. Last but not least is the application of robots in the connection area that guarantees the maximum flexibility in layout.
- Technical Data

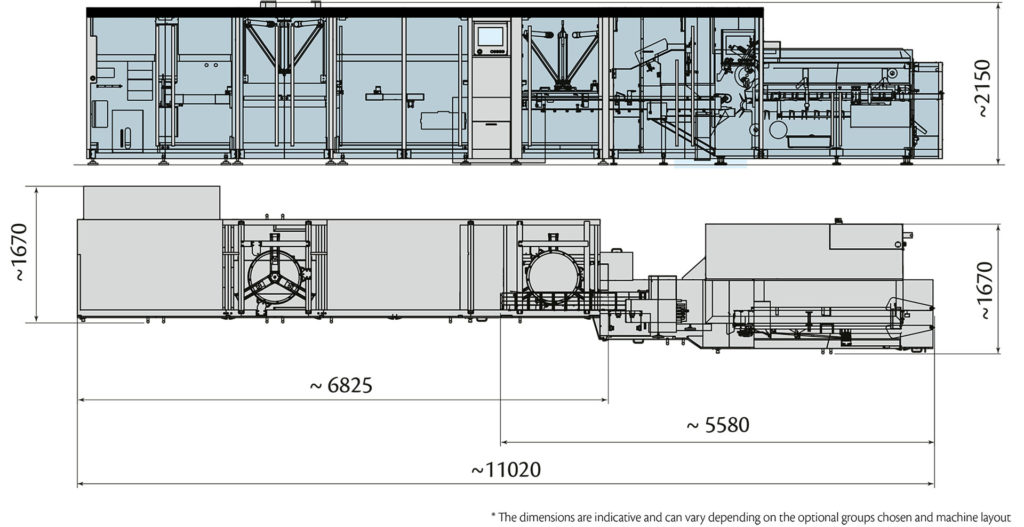

- Machine Layout
| Model | C260 | C360 |
| Production output |
up to 800 1-2 ml DIN ampoules/minute up to 400 1 ml syringes/minute |
600-1000 1-2 ml DIN ampoules/minute up to 600 1 ml DIN syringes/minute |
| Forming depth | 3 mm – 40 mm | 3 mm – 40 mm |
| CARTONERS | |
| X Series | up to 120 cartons/min.* |
| FLEXA Series | up to 150 cartons/min.* |
| DYNAMICA Series | up to 250 cartons/min.* |
*Different customizations on demand
