C1290/C12110
Automatic tubefiller

Available in different levels of automation along with the widest range of additional devices, to grant the “state of the art” of single nozzle technology. Performance is combined to simplicity in change-over sequences and quick dismantling of contact parts.

Available in different levels of automation along with the widest range of additional devices, to grant the “state of the art” of single nozzle technology. Performance is combined to simplicity in change-over sequences and quick dismantling of contact parts.

Complete, fast, easy to use: Comadis C1290 is the ultimate proposal coming from many years experience in tube filling industry

Co.Ma.Di.S. C1290 is a major update of the successful “C1090”, the benchmark model sold worldwide in many different applications, which has proved to offer enough flexibility to be used in various configurations.

Improved in a number of details, it is now performing tube cleaning by dedicated station, batch data collection via USB port and continuous monitoring – on request – of tube folding and tube crimping areas.

nature_people

Sustainability

Noise and vibration levels have been sensitively reduced.

IMA Safe
settings_applications Production Plant
Co.Ma.Di.S. S.P.A.

C1290/C12110 Highlights

1.
Choice of automatic/robotized tube feeders.
2.
Easy-to-disassemble dosing pump.
3.
Servo-controlled diving nozzle, with positive shut-off valve and cleaning by air blow.
4.
Quick interchangeability of closing heads.
5.
Simplified and easy change of size parts, without tools.
6.
Electrical cabinet integrated within machine footprint.
7.
Batch data collection – by pen drive – via USB port.
8.
Multicolour toothpaste filling by special version “C1290T” (capable of co-extrusion for up to three colours - deep stripes).
The wide range of configurations include a choice of tube feeding devices: cassette type, independent ergonomic and fully robotized. Outstanding sturdiness and considerable performance are smartly combined to intuitive operation: the dream of users comes true.
  • Technical Data
  • Machine Layout
TECHNICAL DATA C1290/C12110
Mechanical speed Up to 90 tubes/min. (C1290)
Up to 110 tubes/min. (C12110)
Filling volume 2-250 mL (on request up to 350 mL)
Tube diameter 10-50 mm (on request polythene and aluminium tubes up to 60 mm)
Tube length 60-250 mm
Working stations 12

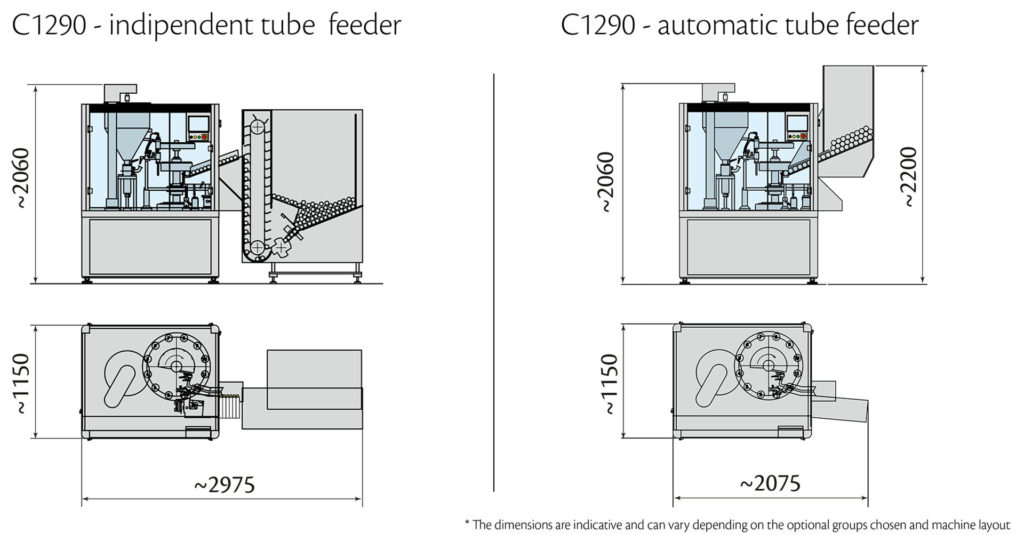

C1290/C12110 Layout

C1290/C12110 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Batch data collection via USB port
search
12” programmable touch screen
