C1060-C1075: Automatic tubefiller • IMA Group

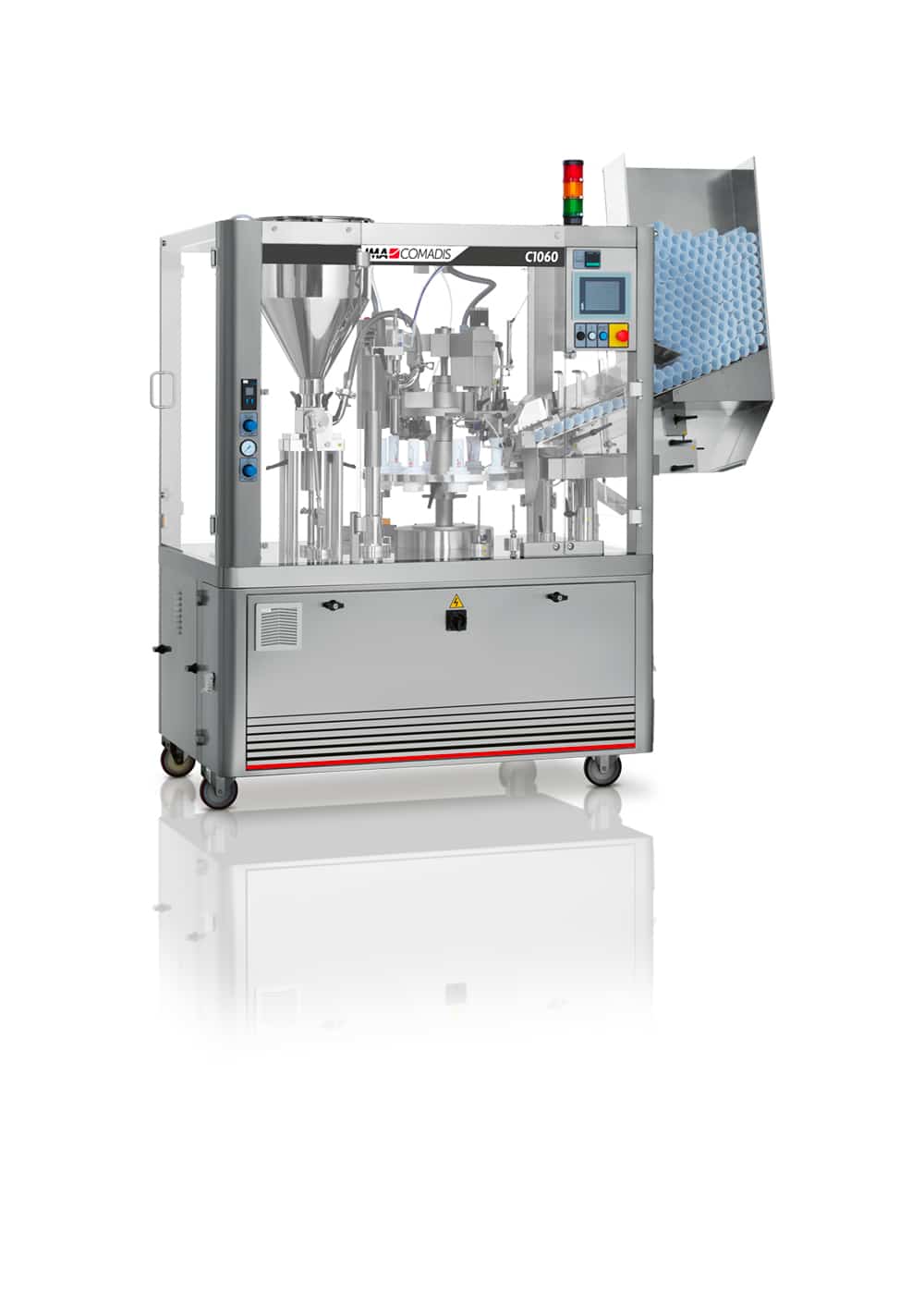

C1060/C1075

Automatic tubefiller

Born to repeat the success of the extraordinary C960/C970 Series, the new Comadis C1060/C1075 Family comes to the market with experience enough to maintain its supremacy in medium speed tubefilling segment.

Download Brochure

Compact, smart, effective. Great performance in small footprint.

“Quintessence” of reliability, ergonomy and ease of use, this model is an evidence of Co.Ma.Di.S. incomparable capability in manufacturing effective tubefillers, with accurate finishing and brilliant performances.

DOWNLOAD BROCHURE

Sustainability


Energy consumption is reduced to a minimum.	This system is able to handle sustainable plastic materials.

Production Plant

Co.Ma.Di.S. S.P.A.

C1060/C1075 Highlights

1.
Choice of automatic/robotized tube feeders.

2.
Easy-to-disassemble dosing pump.

3.
Diving nozzle with positive shut-off valve and cleaning by air blow.

4.
Customized “designer seals” on request.

5.
Quick interchangeability of closing heads.

6.
Simplified and easy change of size parts, without tools.

7.
Electrical cabinet integrated within machine footprint.

8.
Batch data collection – by pen drive – via USB port.

The compact design makes this machine suitable to meet all needs. Despite the reduced footprint, this model boasts the use of first-class components coming from larger models of our range, for long service life. The perfect balance that comes from experience.

DOWNLOAD BROCHURE

Technical Data

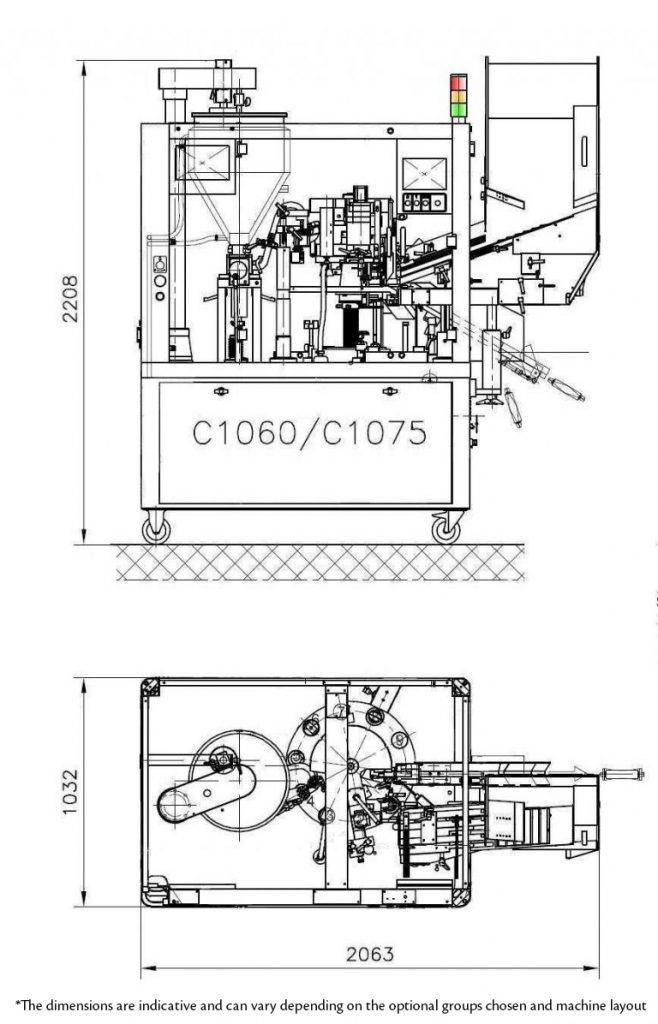

Machine Layout

TECHNICAL DATA C1060/C1075
Mechanical speed	Up to 60 tubes/min. (C1060)
Mechanical speed	Up to 75 tubes/min. (C1075)
Filling volume	2-250 mL (on request up to 350 mL)
Tube diameter	10-50 mm (on request polythene and aluminium tubes up to 60 mm)
Tube length	60-250 mm
Working stations	10

C1060/C1075 Gallery

Advanced dosing pump

Batch data collection via USB port

Programmable “touch screen” colour panel
