Vertical intermittent motion sachet machine

BETA Series ensures high performances thanks to the advanced technology developed. Benefit from the maximum flexibility in terms of configurations and production outputs to find the best solution for your goals.

BETA Series ensures high performances thanks to the advanced technology developed. Benefit from the maximum flexibility in terms of configurations and production outputs to find the best solution for your goals.

The sachet machine you can rely on

BETA Series vertical sachet packaging machines for 4-seal sachets can handle all types of product from paste products to fluid products, powders, free and non free flowing products, objects and accessories such as wipes. Multiple dosing systems can be installed for alternative productions and, in case of powder packaging, it is also possible to have a double auger to dose different powders into the same sachet.

High quality and aesthetically first-class sachets are produced as the seals are made during the stationary phase.

BETA machines guarantee extremely easy size changeovers in terms of both sachet width and length.



nature_people

Sustainability

BETA machines are designed so that the production process involves minimal environmental impact:

  • energy consumption is reduced to a minimum,
  • the waste materials are minimized,
  • compatibility with the use of recycled materials.
Perfect Pack
settings_applications Production Plant
Perfect Pack

BETA Highlights

1.
Maximum flexibility in terms of configurations
2.
High efficiency guaranteed
3.
Extremely easy and quick size changeovers in terms of both sachet width and length
4.
Easy cleaning operations thanks to a compete accessibility
5.
Easy synchronization with downstream machines and complete flexibility in line layout

VERSIONS

BETA machines are available in different versions and configurations according to the output requested and the product characteristics.

Machine versions:

  • BETA 200: up to 280 sachets/min.
  • BETA 360: up to 450 sachets/min.
  • BETA 500: up to 700 sachets/min

Machine configurations:

  • Configuration for dense and semi-dense products
  • Configuration for powders, free and not free flowing products
  • Configuration for fluid products and wet wipes
  • Configuration for tablets and capsules

Multiple dosing systems can be installed in the same machine, enabling alternative productions.



BETA Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA BETA 200
Width (mm) Length (mm) N. Lanes Production output
min 100 – 200 max min 50 – 170 max 1 Up to 280 sachets/min.
min 40 – 100 max 2
min 40 – 50 max 4



TECHNICAL DATA BETA 360
Width (mm) Length (mm) N. Lanes Production output
min 40 – 90 max min 50 – 170 max 4 Up to 450 sachets/min.
min 40 – 60 max 6



TECHNICAL DATA BETA 500
Width (mm) Length (mm) N. Lanes Production output
min 40 – 80 max min 50 – 170 max 6 Up to 700 sachets/min.
min 40 – 60 max 8
min 40 – 50 max 10

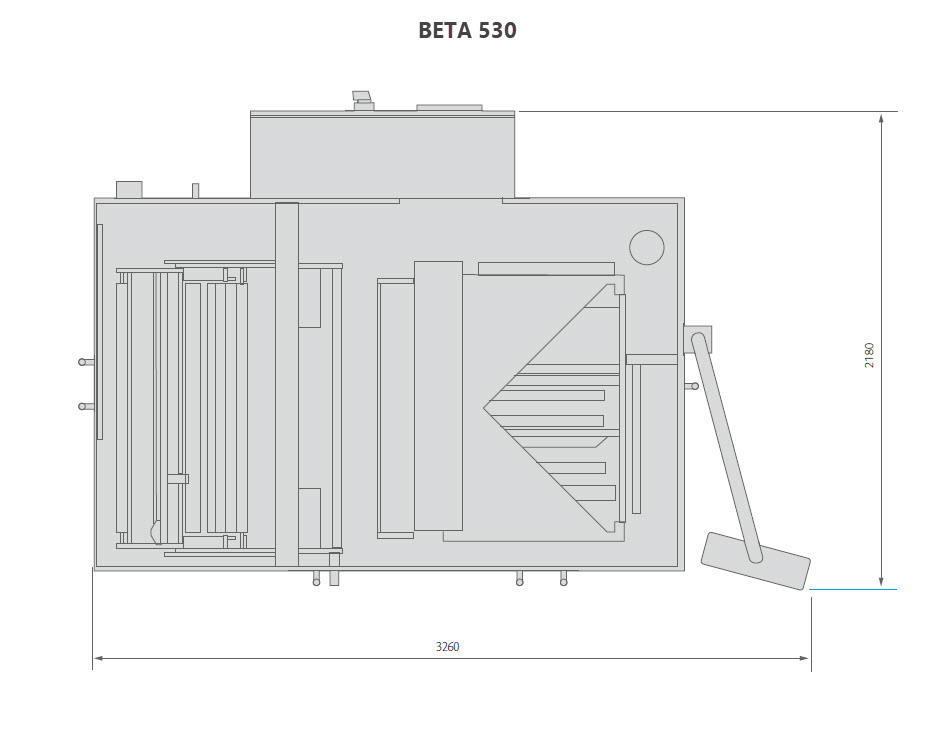

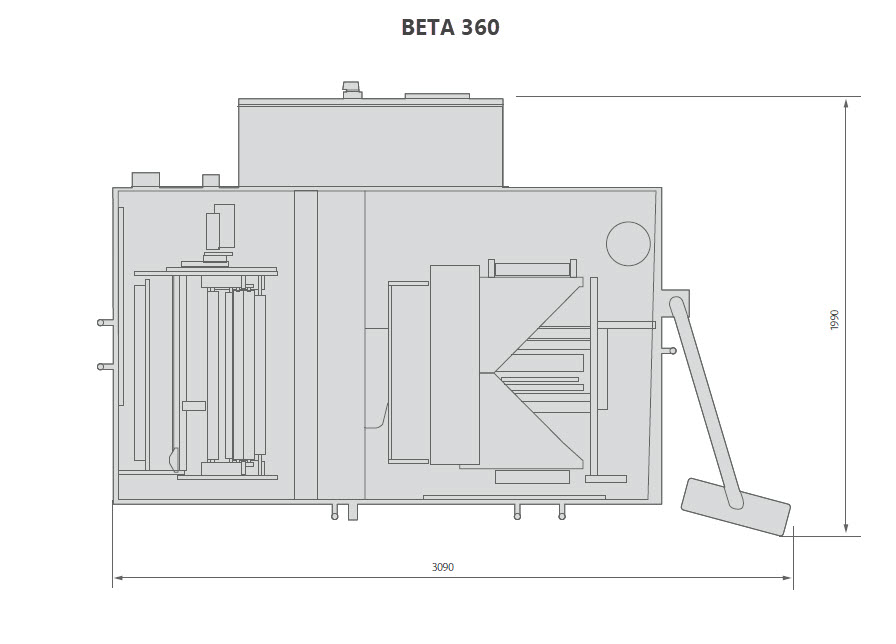

BETA Layout

BETA Gallery

keyboard_arrow_left
keyboard_arrow_right
search
BETA 360 - Configuration for dense and semi-dense products
search
BETA 360 - Configuration for free and not free flowing products
search
BETA 360 - Configuration for fluid products and wet wipes
search
Doser with pistons for dense and semi-dense products
search
Gravimetric doser for fluid products
search
Auger doser for powders, free and non free flowing products
search
Feeder for tablets and capsules
search
Wet wipe folding group
