Fluid bed processor
Prime technology, intelligent design, enduring reliability. ARIA’s compact GMP design makes processing smooth and highly efficient, achieves outstanding results and requires little maintenance.
Prime technology, intelligent design, enduring reliability. ARIA’s compact GMP design makes processing smooth and highly efficient, achieves outstanding results and requires little maintenance.
The prime element in fluid bed processing.
ARIA allows drying, granulation, pellet coating with maximum reliability and ample flexibility. Designed for through-the-wall installation, ARIA is easy to integrate with other granulation equipment into fully contained processing lines.
nature_people
Sustainability
A large number of pharma companies are looking into energy consumption optimisation by using reduction and recovery strategies.
The innovations in washing technology can improve water consumption throughout the various steps of the cleaning cycle.
ARIA water recirculation system allows consumption saving and reduces the disposal of dirty water at the end of the washing cycle, while granting optimal equipment performance.
While The AHU allows energy efficiency thanks to the recovery of treated air which is used to cool/heat the incoming air thus maintaining optimal system performance.
settings_applications
Production Plant
IMA Active
ARIA Highlights
1.
Through-the-wall installation and easy integration with other granulation equipment.
2.
Suitable to work in high containment.
3.
Different type of filters: bag filters, star-pleated or stainless steel cartridges.
4.
Complete accessibility to product filters for easy inspection and maintenance.
5.
ATEX compliant for safe use of solvents.
6.
Control of emissions: powder dedusting, absolute filtration, 12 bar Pressure Shock Resistance.
Product bowls can fit different air distributors designed to achieve maximum product yield and optimal fluidisation. Air distributors can be easily washed in place and removed for inspection.

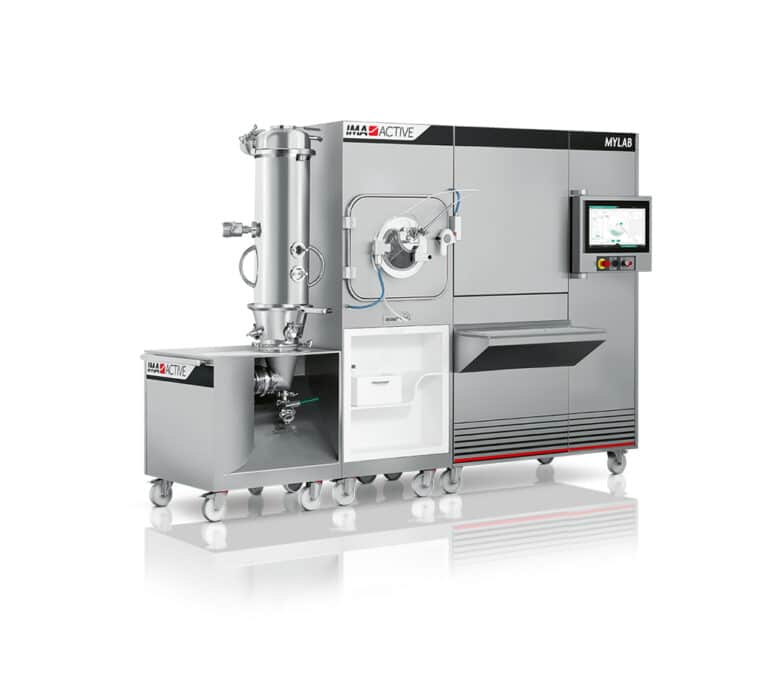

Lab Version.
MYLAB is a laboratory-scale fluid bed processor for R&D purposes, suitable for drying, granulation and pellet coating. The product containers can work batch sizes from 2 to 6 litres.
- Technical Data
- Machine Layout
| TECHNICAL DATA ARIA | ||||||||
| Model | 60 | 120 | 300 | 600 | 900 | 1200 | 1500 | 2000 |
| Recommended batch size (kg) | 25 | 50 | 120 | 250 | 400 | 500 | 600 | 800 |
| ROTO MIX inline (l) | 60 | 120 | 300 | 600 | 900 | 1,200 | 1,500 | 2,500 |
| A (mm) | 590 | 700 | 960 | 1,190 | 1,410 | 1,740 | 1,800 | |
| B (mm) | 1,150 | 1,260 | 1,520 | 1,750 | 2,040 | 2,300 | 2,800 | |
| C (mm) | 2,500 | 2,790 | 3,235 | 3,615 | 4,100 | 5,670 | 6,300 | |
| D (mm) | 1,775 | 1,775 | 1,840 | 2,220 | 2,675 | 3,785 | 3,800 | |
| E (mm) | 1,010 | 1,010 | 1,050 | 1,360 | 1,530 | 1,900 | 2,150 | |
| F (mm) | 1,420 | 1,420 | 1,560 | 1,610 | 1,830 | 2,160 | 2,600 | |
