ALU
Capping machine

The longstanding experience in the development and production of capping machines for vials has been channelled into ALU. Unique in style and built to deliver top-level performance, this machine will drive your productivity to a higher degree of efficiency.

The longstanding experience in the development and production of capping machines for vials has been channelled into ALU. Unique in style and built to deliver top-level performance, this machine will drive your productivity to a higher degree of efficiency.

Caps the best, caps the rest!

ALU is a rotary capping machine reaching medium-high speeds and is particularly suited to sealing aseptic products. Its design criteria, such as limited dimensions, ergonomics, reduced particle generation and the geometry facilitating unidirectional laminar flow all allow the machine to be installed in classified areas, in conventional sterile rooms or under isolation technology.

Depending on customer requirements, the machine is available in two different models and features a broad range of application capabilities: from traditional aluminium caps, with or without flip-off, to the most sophisticated caps such as add-vantage, bio-set and monovial closures.

IMA Life
settings_applications Production Plant
IMA Life

ALU Highlights

1.
Very low particle generation system to avoid product contamination.
2.
Pneumatic circuit to keep constant applied vertical force.
3.
100% measurement and control of vertical compression force.
4.
Various types of controls available to check crimp quality and flip-off cap colour.
5.
Coding unit and camera vision system for data reading and check.
6.
Low size changeover and set-up time.
7.
Little maintenance required.
8.
Equipped with Siemens PLC and with a user-friendly control panel.
Crimping is performed by rotating the vial against an idle roller. The advantage of this system over traditional methods is to guarantee maximum sealing precision and minimise particle generation on the vial mouth.
  • Technical Data
  • Machine Layout
TECHNICAL DATA ALU SERIES
Machine model

ALU 400

ALU 600

Capping heads 8 12
Output (vials/minute) 400 600
Standard voltage 400 V – 50 Hz
Installed power (kW) 12
Weight (kg) 1800 1900
Vial diameter (mm)* 14-52
Vial height (mm) 35-110
* 85 mm in case of large volume configuration

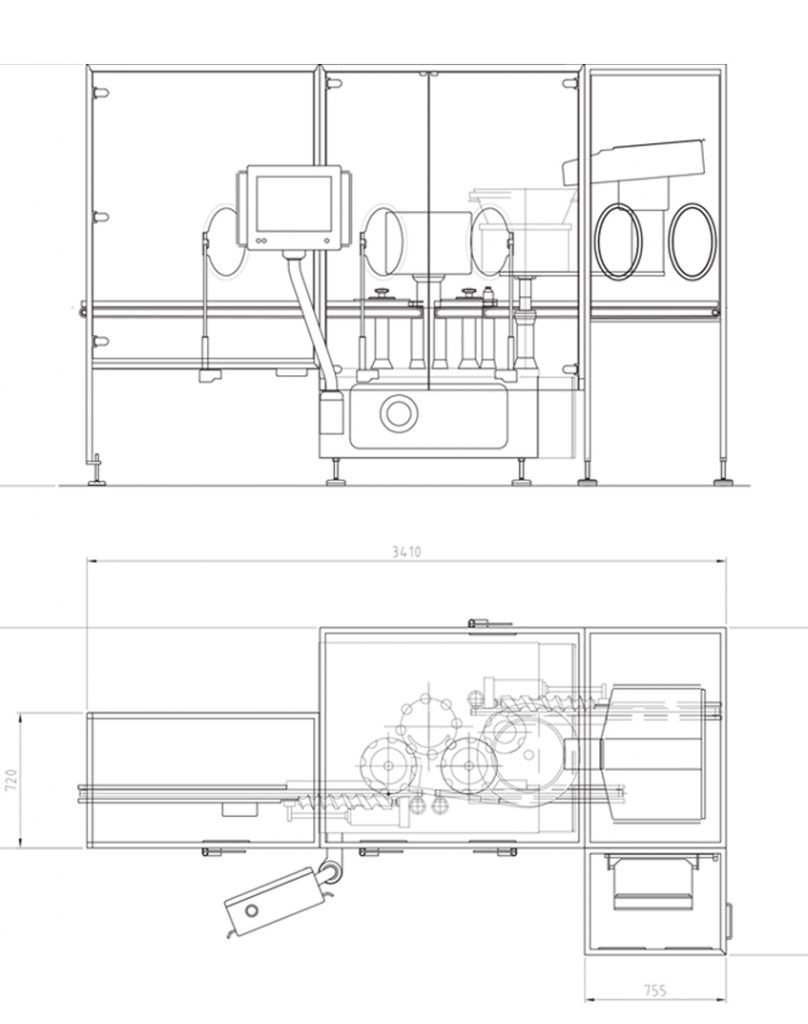

ALU Layout

ALU Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Alu cap feeding
search
Vibrating bowl
search
Coding unit and camera vision system for data reading and check
search
Vial transport
search
Machine installation under cRABS
