Wet Wipe Converting Line
Modern shopfloors need to quickly change products, even every week, in order to satisfy the various market requests. Speed and minimum machine stops are crucial: NEXT answers these needs, introducing reproducible settings and shorter cleaning duration.
Modern shopfloors need to quickly change products, even every week, in order to satisfy the various market requests. Speed and minimum machine stops are crucial: NEXT answers these needs, introducing reproducible settings and shorter cleaning duration.
No compromise on speed.
NEXT by IMA TEKNOWEB is the ultimate high-speed platform for length fold wipes, delivering top efficiency and minimal downtime.
Featuring advanced LAP “zero speed” splicing and premium tension control, it handles any roll type with ease.
Proprietary cutting technology achieves up to 1000 cuts/min, while up to 3 flow wrappers maximize output. With stainless steel rotating blades and over 95% production efficiency, NEXT sets the standard for reliability and safety in wipes converting.
nature_people
Sustainability
Next can process raw materials with low (or even zero) environmental impact, compared to the standard wipes composed of PP, PE or viscose. The sustainable material handled by Next is composed of cellulosic fibers derived from wood pulp.
settings_applications
Production Plant
Teknoweb Converting
NEXT Highlights
1.
Proprietary cutting unit up to 1000 cuts/min.
2.
Extreme sanitary design.
3.
Perfect tension adjustment applicable to each roll, single, double or jumbo.
4.
Low TCO (Total Cost of Ownership).
5.
Quick lotion flow ramps to reduce number of stacks rejected at start.
6.
Short CIP duration.
This wet wipes converting line can handle every kind of roll: single, double or jumbo, ensuring free choice of pre-fold wetting, post- fold wetting or both together.
Product output options preview
- Technical Data

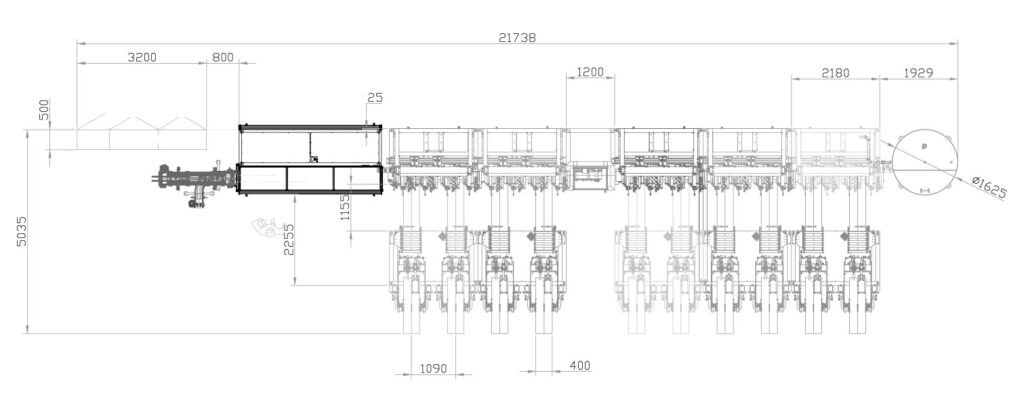

- Machine Layout
| NEXT | |
| Design speed (wipes/min) | up to 24.000 |
| Operating speed (wipes/min) | up to 21.600 |
| Cutting speed (clips/min) | up to 1000 |
| Stacking speed (stacks/min) | up to 300 |
| Linear speed (m/min) | up to 200 |
| Number of lines | up to 25 |
| Drive system | Full servo |
| Roll diameter (mm) std | opt | 1200 | 1500 |
| Pre-cut reels width (mm) min | max | opt | 130 | 210 | 400 |
| Semi-jumbo roll (mm) min | max | 800 | 1200 |
| Cutting technology | Pinch die cut |
| Stack length (mm) min | max | opt | 100 | 230 | 400 |
| Web centering device | Yes |
| Folded wipe width (mm) min | max | opt | 80 | 140 | 160 |
| Reels splice | Automatic, zero speed |
| Interfolded | Yes NO |
| Fold type | Z, C, W, modified V |
| Clip height (mm) min | max | 5 | 25 |
| Stack height (mm) min | max | 5 | 80 |
| Count min | max | 12 | 120 |
| Quantity of lotion(%) min | max | 200 | 400 |
| Efficiency (%) pre-cut rolls | semi-jumbo | > 90 | > 95 |
| Waste (%) | < 3 |
