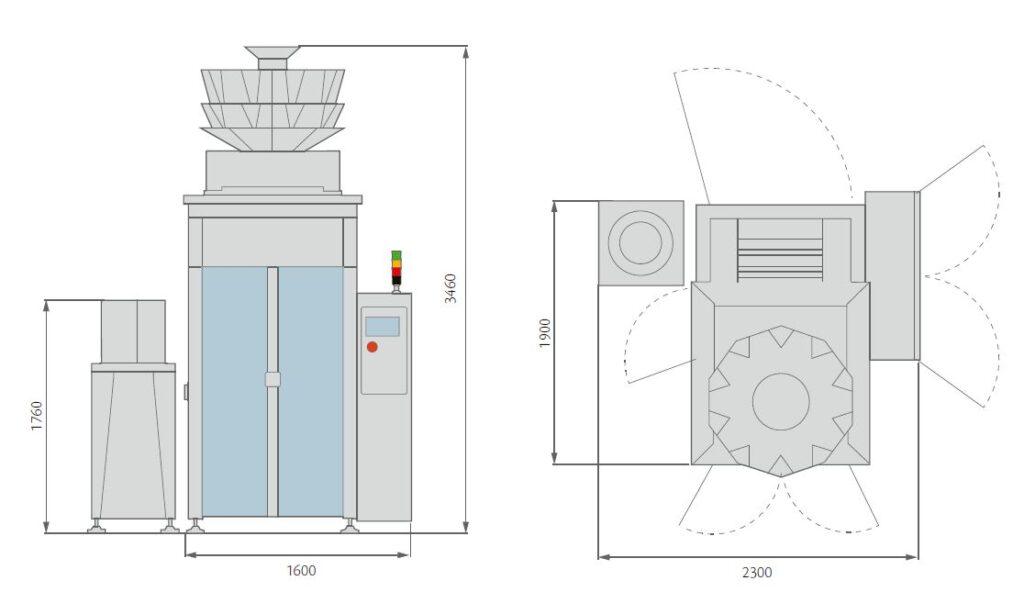

The 3C Series vertical baggers produce high quality pouches providing reliability with the best cost-benefit ratio.
The 3C Series vertical baggers produce high quality pouches providing reliability with the best cost-benefit ratio.
The 3SS bagger models guarantee a high performance output in the packaging of ground coffee and beans.
The design of the machines is based on an Open Frame architecture that provides easy cleaning and accessibility for maintenance and operational adjustments. The machines are controlled by a PLC and equipped with a user friendly HMI, a motorized film unwinding unit, a pneumatic film tension controller and a motorized film alignment system. The baggers, intermittent or continuous motion, including degassing valve applicator and N2 flushing system, are capable of producing and filling 3 side seal bags from 50 cc up to 5000 cc.
3C Series machines can handle compostable and recyclable materials (bag).
Width | Length | Numb. Of lines | Reel | Speed Strokes/min | |
INTERMITTENT MOTION | |||||
3C-130/OF | 65-235 mm | 100-410 mm | 1 | 505 mm | 100 |
3C-200/OF | 135-360 mm | 200-500 mm | 1 | 750 mm | 60 |
3C-360 | 250-500 mm | 500-800 mm | 1 | 1200 mm | 10 |
3C-80 DUAL | 65-125 mm | 100-225 mm | 2 | 540 mm | 70 |
3C-130 TWIN | 65-235 mm | 100-410 mm | 2 | (2x) 505 mm | 100 |
PRYSMA (flat top) | 65-220 mm | 100-250 mm | 1 | 505 | 50 |
CONTINUOUS MOTION | |||||
3C-130 C | 65-205 mm | 100-350 mm | 1 | 445 | 150 |
Array ( [rel_market] => Array ( ) [clone_list] => Array ( ) [body_class] => [no_index] => [no_follow] => [seo_image] => [seo_title] => [seo_description] => [embed_iframe] => [form_price] => [contact] => sales.coffee@ima.it [thread_tag] => coffee [tile_description] => [tile_speed] => Up to 70 strokes/min [cover_macro] => 963 [cover_name_type] => txt [cover_name] => STICK Series [cover_descriptor] => Multilane vertical machines for sticks [cover_focus_on] => 1 [cover_focus_content] =>The Stick Line machines produce high quality stick type packages providing reliability, increasing production and optimizing the use of packaging material.
[buttons_on] => 1 [view_default] => 1 [buttons_items] => Array ( [0] => Array ( [acf_fc_layout] => private [button_id] => [button_class] => [text] => Contact us [icon] => mail [form_email] => sale.coffee@ima.it [type] => contact [private_product] => [private_exhibition] => [form_type] => contact [form_id] => ) ) [cover_focus_buttons] => Array ( [buttons_on] => 1 [view_default] => 1 [buttons_items] => Array ( [0] => Array ( [acf_fc_layout] => private [button_id] => [button_class] => [text] => Contact us [icon] => mail [form_email] => sale.coffee@ima.it [type] => contact [private_product] => [private_exhibition] => [form_type] => contact [form_id] => ) ) ) [news] => [thumbnail] => 4533 [tag_line] => STICK Series [overview] =>The Stick Line machines guarantee a high performance output in the packaging of ground coffee and soluble products.
The design of the machines is based on an Open Frame architecture that provides easy cleaning and accessibility for maintenance and operational adjustments.
The machines are controlled by a PLC and equipped with a user friendly HMI.With fully servo-driven movement, the machines are capable of producing and filling sticks type sachets from 0.5 cc 50 cc at a speed up to 1120 sachets per minute.
[overview_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [sustainability] => [highlights_on] => [focus_on] => [versions_on] => [addon_on] => [output_on] => [technical_data] =>
Sachets Width | Sachets Length | Numb. Of lines | Reel | Speed Strokes/min | |
STICK-200 | 15 – 60 mm | Up to 240 mm | Up to 12 | Diameter 450 mm | Core 3” | Up to 70 |
STICK-400 | 15 – 60 mm | Up to 240 mm | Up to 16 | Diameter 450 mm | Core 3” | Up to 70 |
The Stick Line machines produce high quality stick type packages providing reliability, increasing production and optimizing the use of packaging material.
Array ( [embed_iframe] => [form_price] => [contact] => [no_index] => [thread_tag] => [tile_description] => WRAP AROUNG CASE PACKING MACHINE. Electronically driven, high-performance wrap around case packer, the MMP400 benefits from astute ergonomic design features enabling user-friendly operation and optimum productivity, with a flat blanks magazine positioned to allow easy case loading. [tile_speed] => 30 cycles/min. [cover_macro] => 3661 [cover_name_type] => txt [cover_name] => MMP400 [cover_descriptor] => Wrap around case packing machine [cover_focus_on] => 1 [news] => [thumbnail] => 3624 [tag_line] => Smart solutions catering for all Coffee packagings [overview] =>Built to pack individual or bundled products into cases, display boxes or trays starting from flat blanks or pre-glued cases, the MMP400 wrap around case packer has been engineered to protect and preserve the highest integrity of the content. This system is so effective, it allows to handle all kinds of coffee containers: from single serve capsules to bags.
The MMP400 features servo technology enabling speeds of up to 30 cases/minute and extremely smooth handling.
Ergonomically positioned components help to significantly improve operator intervention and thanks to a newly designed case erection mechanism, the horizontal case magazine is as low as possible to achieve increased autonomy. Cases are erected and held in position on two sides during loading.
[overview_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [sustainability] => [highlights_on] => 1 [focus_on] => [versions_on] => 1 [addon_on] => 1 [output_on] => [technical_data] =>
TECHNICAL DATA MMP400 |
MMP400 | A | B | C |
Case dimensions (MIN) | 80 | 80 | 140 |
Case dimensions (MAX) | 420 | 325 | 420 |
MMP600 | A | B | C |
Case dimensions (MIN) | 80 | 80 | 250 |
Case dimensions (MAX) | 420 | 325 | 600 |
Speed: up to 30 cases/min |
Electronically driven, high-performance wrap around case packer, the MMP400 benefits from astute ergonomic design features enabling user-friendly operation and optimum productivity, with a flat blanks magazine positioned to allow easy case loading.
[buttons_on] => [cover_focus_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [highlights] => Array ( [0] => Array ( [highlight] => Independent modules on infeed to allow for the efficient handling of all kinds of coffee containers: pillow bags, sticks, envelopes, block bottom bags, flowpacks, dispensing boxes, pre-glued boxes, filp top boxes, jars, capsules. ) [1] => Array ( [highlight] => Flexible machine offering the widest range of packaging solutions: wrap-around cases, RSC cases, trays, trays with internal or external hood and display boxes. ) [2] => Array ( [highlight] => Machine fully servo equipped. ) [3] => Array ( [highlight] => New 830 mm height case magazine for easy loading of cases, equipped with two driven belts to store display boxes with irregualr shapes. ) [4] => Array ( [highlight] => Can be equipped either with a 6 axes robot or with a 2 axes loading system (pusher or pick&place), allowing for efficient handling of any products even if they are unstable or critical to run at high speed. ) [5] => Array ( [highlight] => Cantilever design for optimum accessibility and easy cleaning. ) [6] => Array ( [highlight] => Internal or external lid unit available. ) [7] => Array ( [highlight] => MMP600 version available for bigger case sizes (C/width dimension up to 600mm) ) ) [body_class] => [no_follow] => [seo_image] => [seo_title] => [seo_description] => [versions_thumbnail] => 3634 [versions_tag_line] => Wrap around case packer - palletizer integrated versions [versions_overview] =>MMP400 is available in different palletizer-integrated versions, according to the output speed required.
[versions_overview_buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) [focus] => Array ( [image] => [content] => At IMA BFB we have combined our knowledge and experience in handling a wide variety of shapes and developed different infeed systems to allow for the efficient handling of all kinds of products even if they are unstable or critical to run at high speed. [buttons] => Array ( [buttons_on] => [view_default] => [buttons_items] => ) ) [related] => no [technologies] => Array ( [0] => 105 [1] => 108 ) [addon_title] => Good To Know [addon_items] => Array ( [0] => Array ( [image] => 3652 [description] => Thanks to its modular design the MMP400 can be easily equipped with different modules on infeed. A host of solutions are available to handle any kind of coffee container. Whatever the shape or the size of the bags, cartons and capsules may be, the integrity of the content is always preserved, the quality of the final packaging is guaranteed. ) ) [versions_title] => [versions] => )
