MS260 SERIES
Stretch banding and shrink wrapping
Designed to offer high-speed production and simple operation, the MS260 with its compact footprint, comes in different versions according to specific needs.
Designed to offer high-speed production and simple operation, the MS260 with its compact footprint, comes in different versions according to specific needs.
Top speed, totally easy, extremely compact.
High-speed stacking, carton tilting and a shrink tunnel can be integrated into this high-performance unit. Very clean balcony-type construction with maximum accessibility to all main parts facilitates maintenance and cleaning operations.

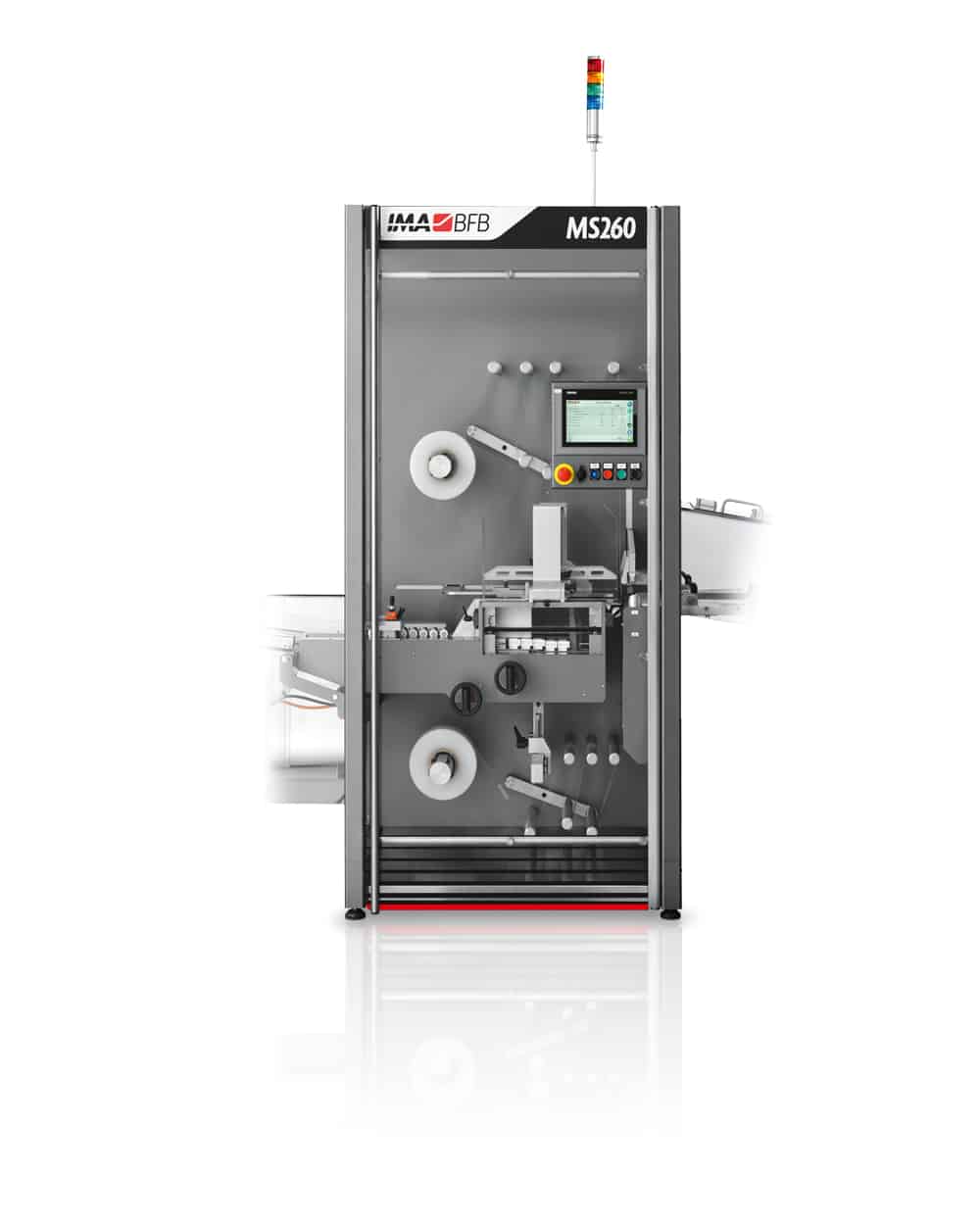

The MS260 stretch-banding and shrink-wrapping machine has been specifically designed to meet the requirements of a market where demand is increasing for extremely compact, easy-to-operate, high-speed machines.
The machine can be equipped with a high-speed stacking unit (MS260A) or with a carton-tilting unit (MS260AM) capable of standing on edge as many as 400 cartons per minute.
settings_applications
Production Plant
IMA BFB
MS260 SERIES Highlights
1.
Balcony-type design to enable maximum accessibility to machine parts for easy cleaning and maintenance.
2.
Stacker driven by servomotor able to achieve a speed of 200 stacks/min. and 60 bundles/min.
3.
Improved tensioning and precise stretching of the film ensured by a servo driven shaft and new film brake system.
4.

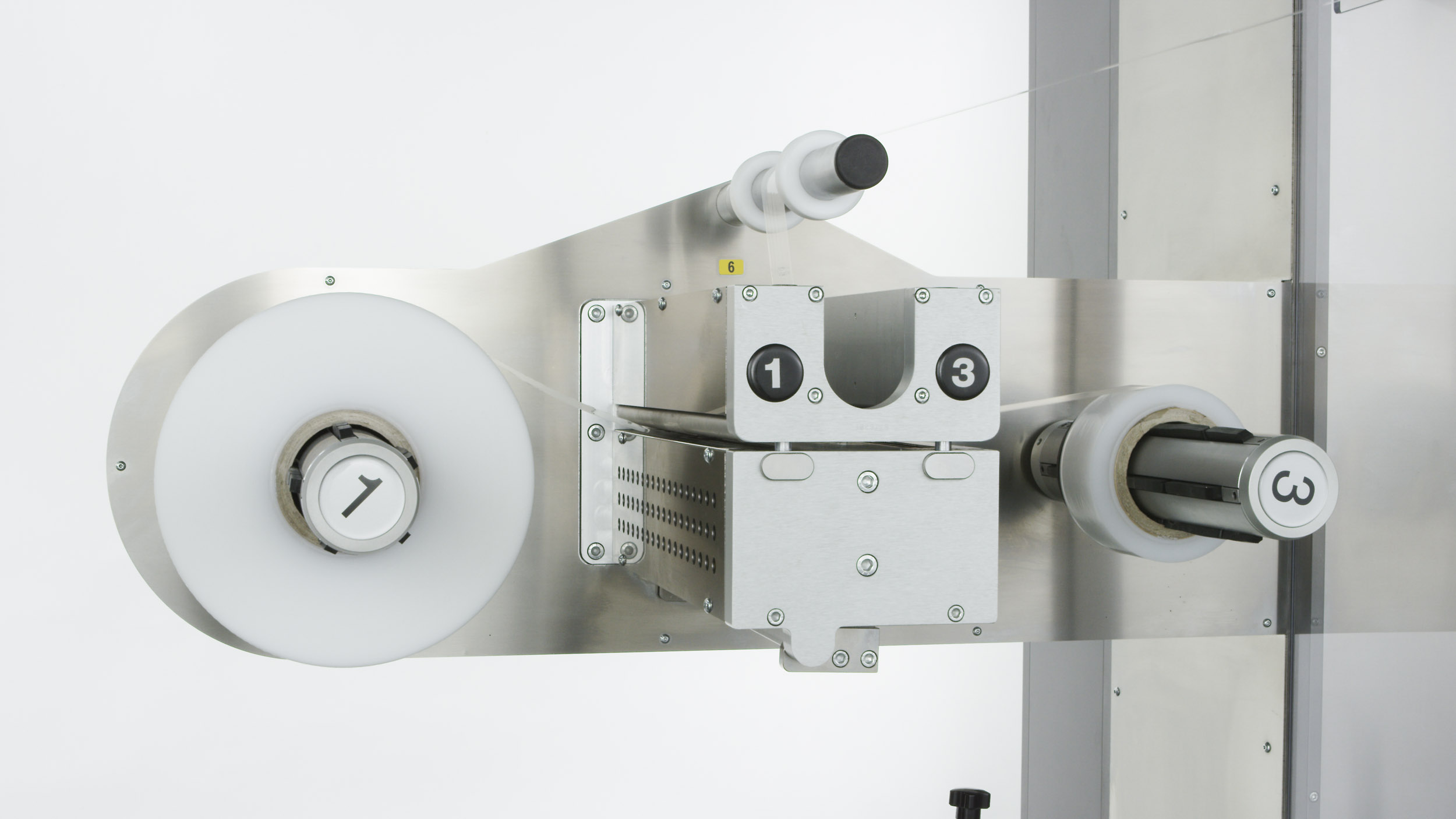

Automatic splicing unit can be installed to reduce downtime for reel change.
5.
Film unwinding carried out through a system with dancing rollers enabling smooth film transport.
6.
Smart and efficient size changeover carried out without tools in 5 minutes.
The optional automatic splicing unit allows the operator to replace the finished film reel without stopping production.
- Technical Data

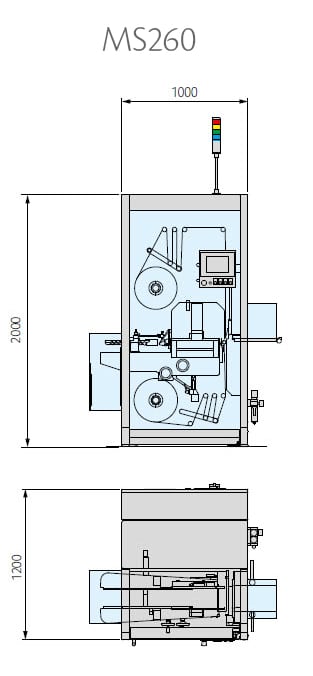

- Machine Layout
| TECHNICAL DATA MS260 SERIES | |||||||
| Production dimensions | A | B | C | D | E | F | H |
| Min. | 20 | 12 | 60 | 60 | 30 | 60 | 40 |
| Max. | 150/360 | 90 | 200 | 210/360 | 210 | 200 | 250 |
| Rial diameter | Std.Ø 400 mm | ||||||
