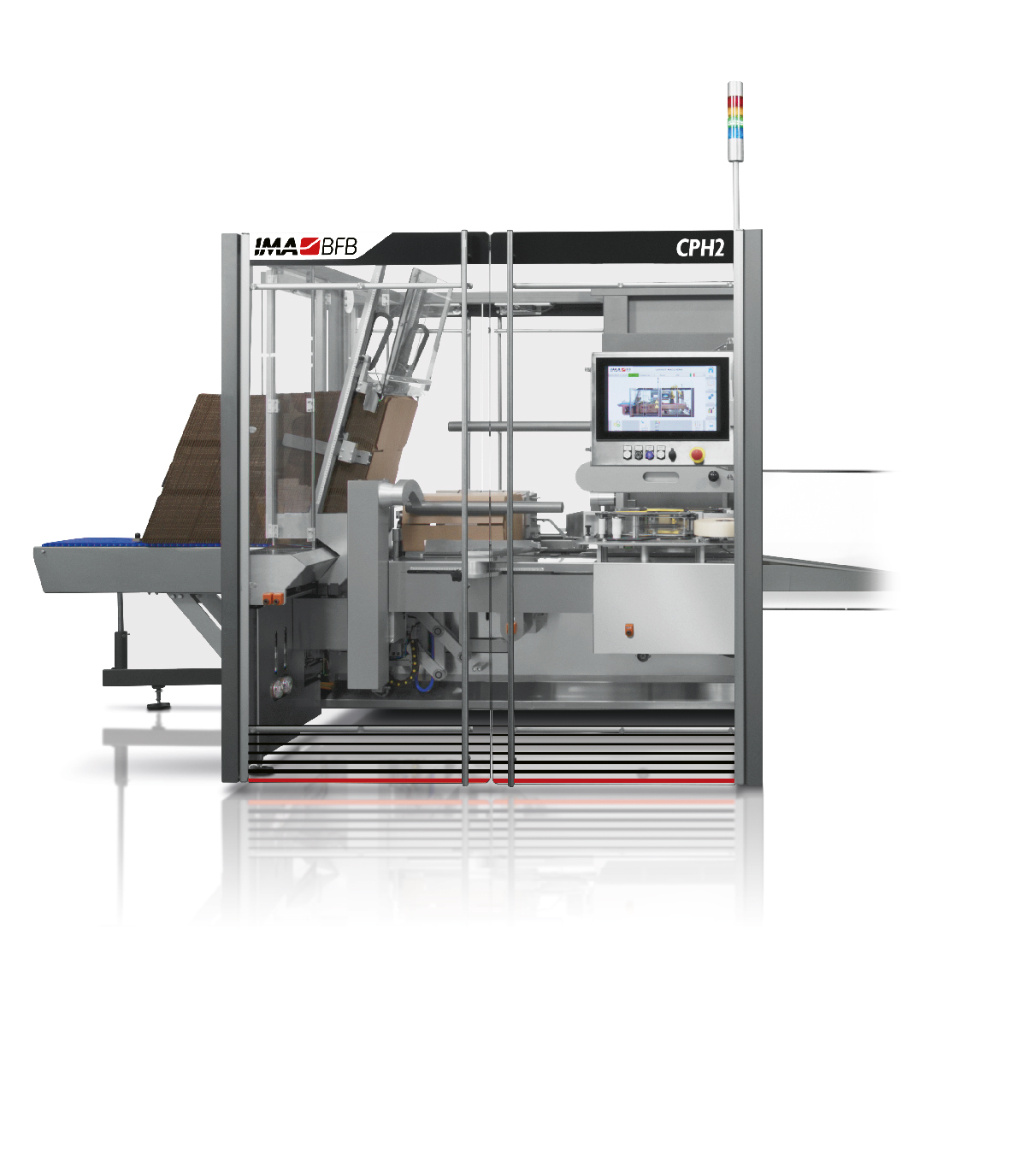

CPH2
Horizontal Casepacker
Medium speed case packer designed to handle the widest range of products and materials used in pharmaceutical, with maximum ease of use and total control of the packaging process
Fit for the future.
This fully automatic side-loading case packer runs at medium speeds and is designed to handle the widest range of products and materials used in the pharmaceutical industry, satisfying current and future requirements.
The machine has been built to maximize efficiency and ease of use in an increasingly demanding work place, to guarantee complete line clearance and to ensure total access to all modules.
The CPH2 also ensures total control throughout all stages of the serialization process. Flexibility, maximum efficiency, total access and total control make CPH2 a new-generation case packer.
settings_applications
Production Plant
IMA BFB
CPH2 Highlights
1.

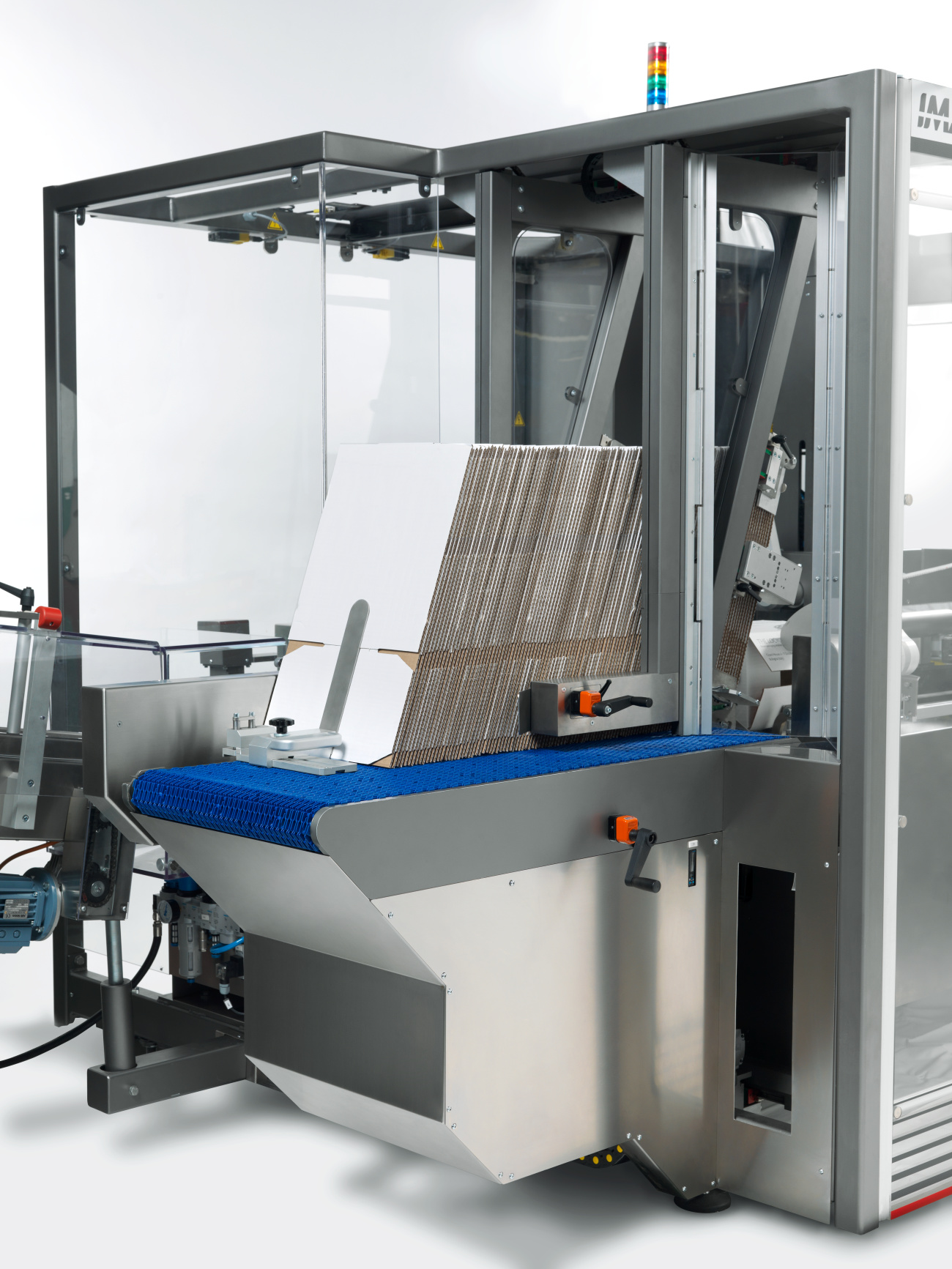

The new 830 mm high case magazine ensures easy loading of cases. Correct case feeding to the picking area is guaranteed by a bottom driven belt.
2.
Designed to ensure total access to all machine modules, all machine parts can be reached from the operator’s side.
3.

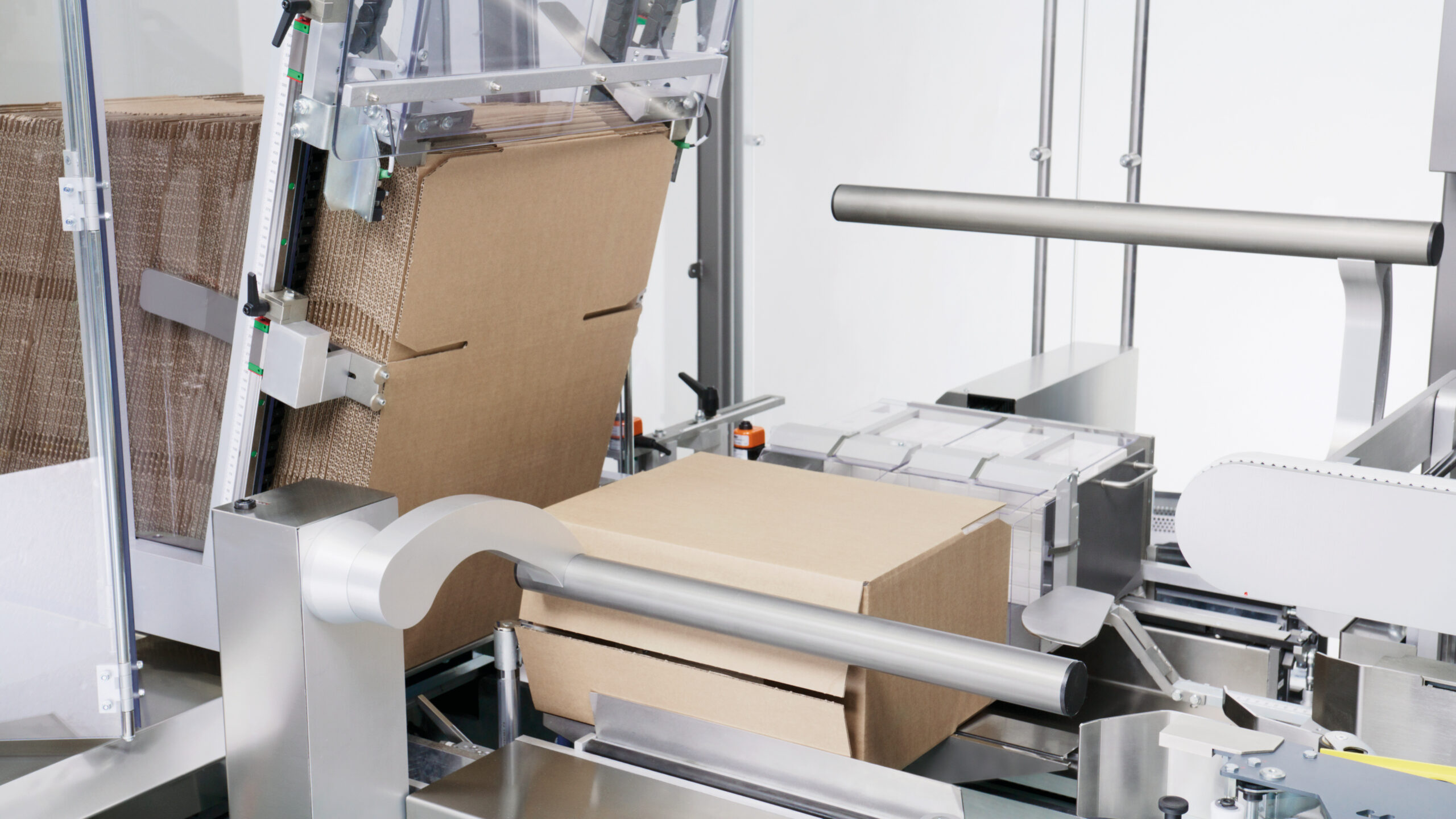

Forced case opening performed by two arms allows reliable operations, even in the case of square shippers or low quality material.
4.

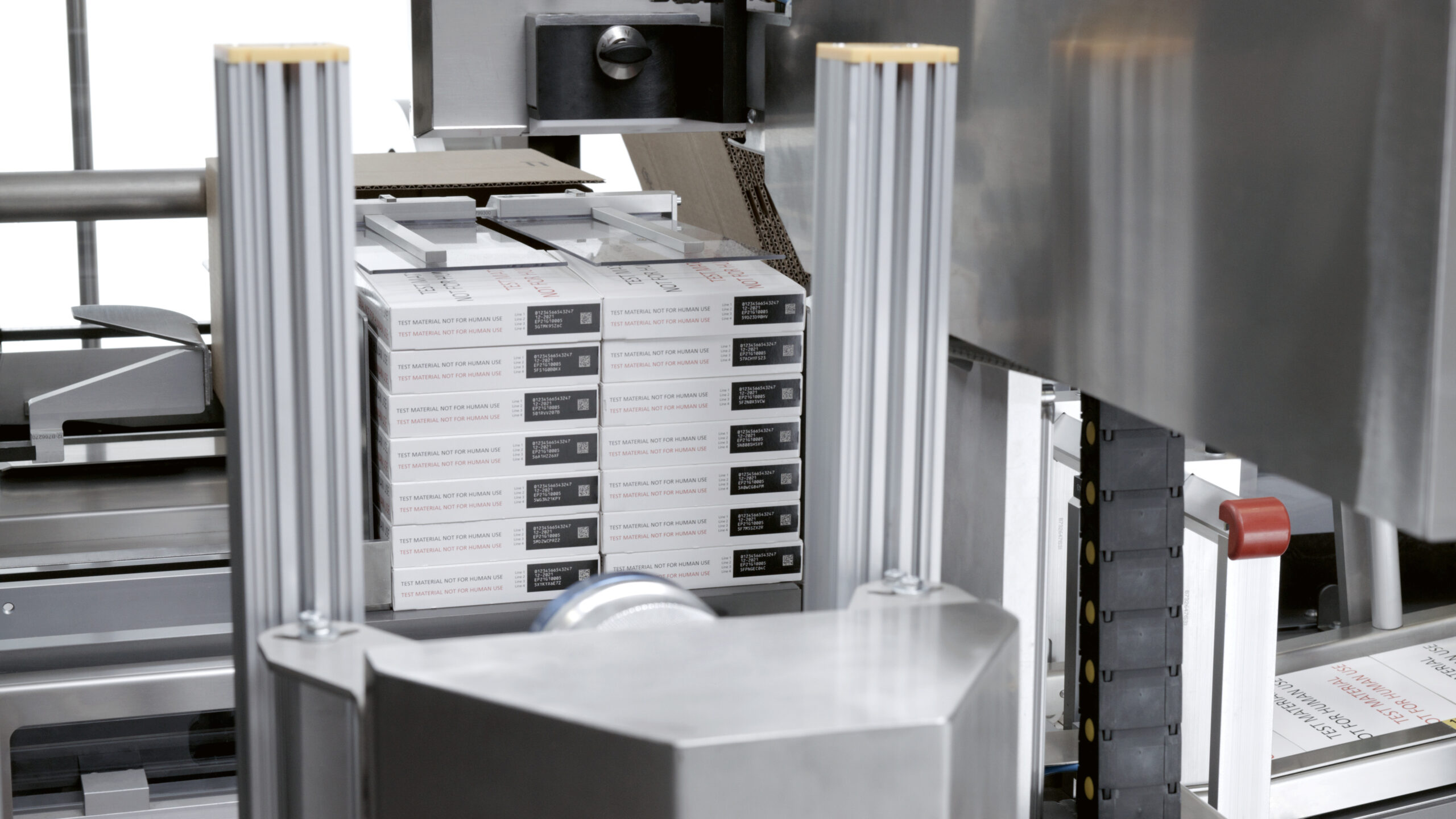

A servo-driven movable hopper follows carton collation up into the case and guarantees security of case content.
5.
Quick tool-free size changeover with limited adjustments. Fast release system by means of clip switches (on/off): no parts need to be unscrewed with keys.

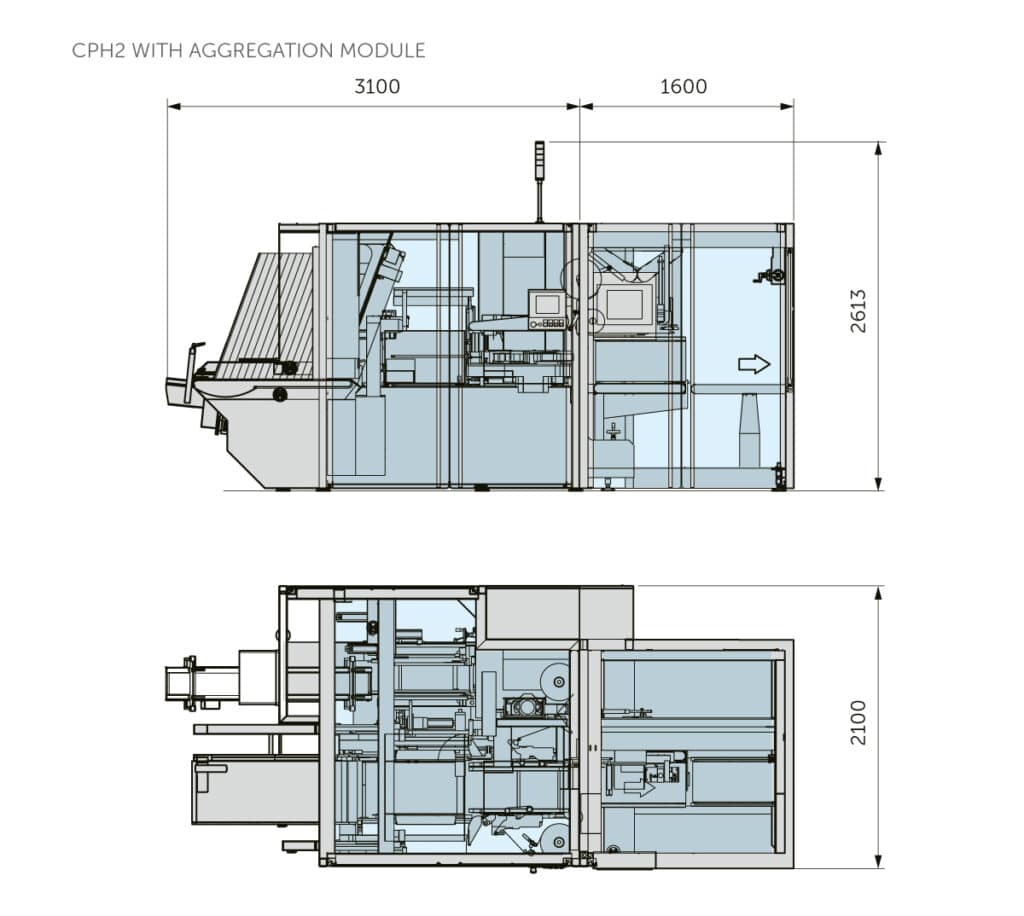

AGGREGATION MODULE. The overall minimal footprint and the cantilever design for improved accessibility ensure total control throughout all stages of the serialization process. The machine can be equipped with a compact module housing labelling units and cameras for aggregation purposes.

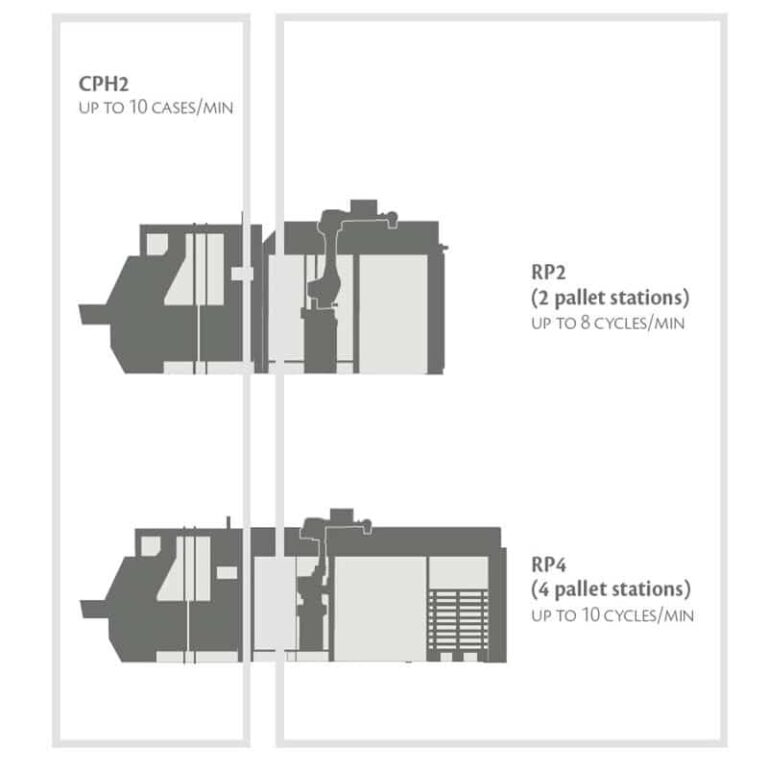

Case Packer - Palletizer integrated versions
CPH2 is available in different palletizer-integrated versions, according to the output required:
CPH2-RP2: With automatic replacement of the full pallet and case buffering during pallet replacement or with two pallet stations; once one pallet is complete, the robot starts loading the second pallet
CPH2-RP4: With 4 pallet stations for greater autonomy. When the pallet is complete, the automatic transport moves the pallet to the exit area and replaces it with an empty one.
- Technical Data
- Machine Layout
| CPH2 TECHNICAL DATA | |||
| Case dimensions | A | B | C |
| Min. (mm) | 220 | 100 | 90 |
| Max. (mm) | 600 | 400 | 400 |
| Product dimensions | a | b | c |
| Min. (mm) | 25 | 22 | 60 |
| Max. (mm) | 590 | 70/150 | 220 |
| Speed | 10 cases/min. | ||
