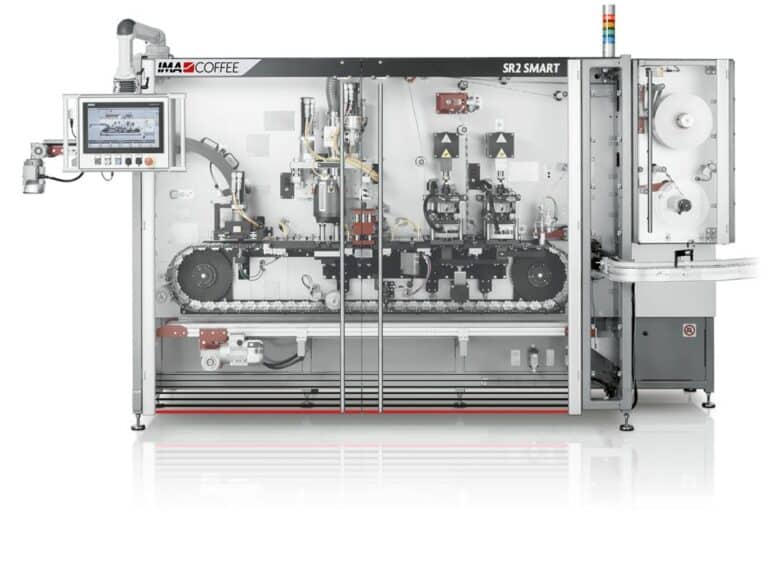

SR SMART SERIES
Capsule filling and sealing

Latest-generation machines, the SR SMART Series is a range of versatile and flexible machines equipped for the filling and sealing of capsules on 1 and 2 lanes.

Latest-generation machines, the SR SMART Series is a range of versatile and flexible machines equipped for the filling and sealing of capsules on 1 and 2 lanes.

The unique ergonomic cantilever design assures great accessibility for maintenance, service and easy cleaning; further more the pullout operating system significantly reduces line downtimes resulting in a great efficiency increase. Lid and waste reels are placed outside the machine, reducing downtime.

Thanks to a very fast size changeover and to an integrated double feeding system, for bulk and stacked capsules, the SR SMART Series can handle any type of capsule in plastic, aluminum and compostable material. Capsules can be closed at the top with aluminum film, micro perforated, filter paper, triplex coupled, PP and compostable lid. Filters and diaphragms can be inserted into capsules and on their bottom.

According to the machine configuration, speed can vary from 60 to 120 capsules per minute.

IMA Coffee
settings_applications Production Plant
Spreafico Automation

SR SMART Series Highlights

1.
Ergonomic cantilever design for a great accessibility
2.
Fast changeover
3.
Double integrated feeding system
4.
Aroma doser
5.
Extremely precise dosing system
6.
Production in modified atmosphere
7.
Special sealing technologies for inner components and lid
8.
Single capsule rejection
  • Technical Data
  • Machine Layout
  SR1 SMART SR2 SMART
Production speed (capsules/min) up to 60 up to 120
Power consumption (kW) 27 27
Machine weight (kg) 3280 3335
Nitrogen consumption (Nm3/h) 28 28
Compressed air consumption (Nm3/h) 28 38
Compressed air pressure (bar) 6 6
SR SMART Series Layout

SR SMART Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Feeding system
search
Destacker
search
Dosing unit
search
Pressing and cleaning
search
Cutting and sealing
search
Nitrogen flushing unit
search
Additional sealing
search
Exit pick & place
