PREXIMA
Tablet press
PREXIMA can be installed as stand-alone equipment, or be integrated in-line with packaging equipment. In the double exit version, all tablets are directed to a single chute for an extremely compact footprint.
PREXIMA can be installed as stand-alone equipment, or be integrated in-line with packaging equipment. In the double exit version, all tablets are directed to a single chute for an extremely compact footprint.
All our skills. Compressed.
PREXIMA can process a wide range of tablet shapes and sizes on the same machine, making it ideal for the coffee industry. Simply replace compression tooling to change to a different size of the same product or to a different design to enhance marketing differentiation. Dedicated solutions are available for efficient and successful coffee tablets production.
settings_applications
Production Plant
IMA Active
PREXIMA Highlights
1.
Isolation of the processing area, thanks to the use of specially designed seals and protections.
2.
Robust structure guarantees both pre-compression and main compression forces up to 100 kN.
3.
High yield motorization minimises heating in the lower compartment, allowing low temperature tableting without specific external devices.
4.
Excellent accessibility, ensuring straightforward operations, easy inspection and cleaning.
5.
Optimised lubrication: less machine maintenance and no product contamination.
6.
Low noise level: sound-proof panels and anti-vibration feet keep the noise level below 75 dB.
7.
MAX new corporate HMI plays a strategic role in improving operator efficiency, while ensuring prompt responsiveness, enhanced predictability and easy learning.
- Technical Data

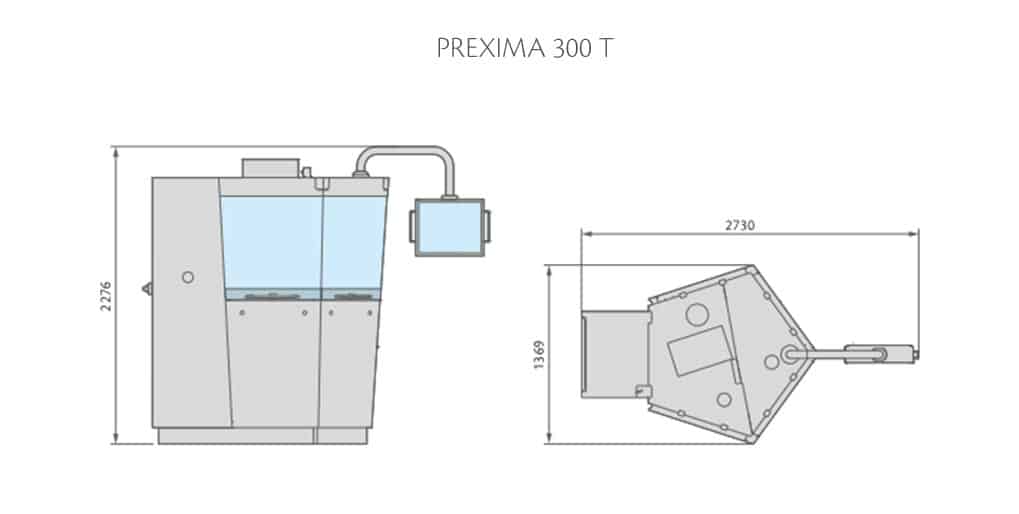

- Machine Layout
| PREXIMA 300 T TECHNICAL DATA | ||
| IMA 32 T | ||
| IMA 32 T | ||
| Die type | 39 | 49 |
| Tool type (EU and TSM) | 20 | 18 |
| Maximum tablet diameter (mm) | 1,800 | 1,620 |
| Maximum speed (rpm) | 90 | |
| Maximum die filling (mm) | 40 | |
| Maximum tablet thickness | 20 | |
| PREXIMA 800 T TECHNICAL DATA | |||
| IMA 32 T | |||
| IMA 32 T | |||
| Maximum tablet diameter (mm) | 39 | ||
| Number of press stations | 39 | ||
| Maximum output (tbl/min) monolayer | 3,900 | ||
| Maximum output (tbl/min) bilayer | 1,950 | ||
| Maximum speed (rpm) | 50 | ||
| Maximum die filling | 40 | ||
| Maximum tablet tickness | 20 | ||
