FTB584-C
capsule cartoning

Built to run in line with filling and sealing equipment, the FTB584-C is a space-efficient, flexible cartoning machine for American and espresso coffee capsules. Proves to be an excellent turnkey solution placed in line with the 590.

Built to run in line with filling and sealing equipment, the FTB584-C is a space-efficient, flexible cartoning machine for American and espresso coffee capsules. Proves to be an excellent turnkey solution placed in line with the 590.

Compact, efficient, flexible.

The FTB584-C is a flexible solution for coffee capsules, tea and soluble beverages. With fully servo-driven movement, the machine ensures excellent production efficiency and extreme flexibility regarding the product layer configuration.

Thanks to a compact footprint and minimal use of void spaces, it represents one of the best options to save space on the production floor and cut costs accordingly.

nature_people

Sustainability



The machine motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules. The FTB584-C can handle capsules made of compostable or recyclable material. Carton material can be recyclable or recycled.
IMA Coffee
settings_applications Production Plant
IMA Coffee

FTB584-C Highlights

1.
High blanks capacity and quick size changeover for excellent productivity.
2.
User-friendly operator interface.
3.
Minimal maintenance requirements for reduced downtime.
  • Technical Data
  • Machine Layout
TECHNICAL DATA FTB584-C
Production range:                    Min.  Max
L 90 200
W 60 110
H 30 90
Production Over 25 ppm
Average power concumption 10 kW
Operating pressure 6 bar
Maximum air consumption 200 Nl/min.
Weight 3,000 Kg

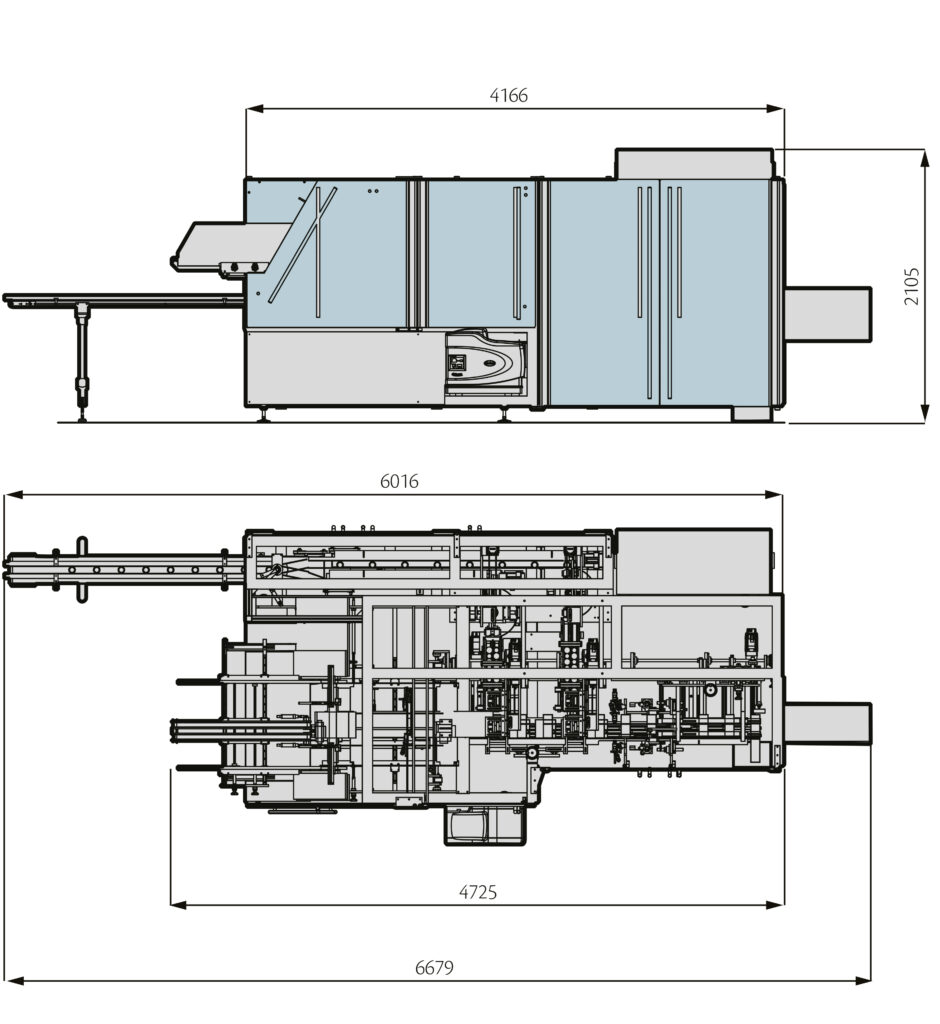

FTB584-C Layout

FTB584-C Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Capsule feeding system
search
Capsule overturning system
search
Carton flat blank feeding system
search
Carton forming system
search
Pick and place for capsule insertion in box
search
Frontal flap closing system
