CA1
Soft pod packaging

The CA1 all-in-one, single-dose coffee packaging machine takes efficiency to new heights, guarantees maximum flexibility and quick changeover procedures, user-friendly operation and saves on packaging material.

The CA1 all-in-one, single-dose coffee packaging machine takes efficiency to new heights, guarantees maximum flexibility and quick changeover procedures, user-friendly operation and saves on packaging material.

A soft pod packaging line in one single machine

The CA1 is a unique, high-speed machine able to produce soft pods in one single lane, counted, stacked and packed into a heat-sealed stand-up bag.

Auxiliary units for pod counting, stacking, pack forming, filling, closing and weight-checking all fit into little more than a 4.3 metre length layout, making the CA1 an efficient, comprehensive and extremely compact machine processing up to 800 soft pods/minute.

nature_people

Sustainability

The CA1 can handle compostable and recyclable materials (filter paper, envelope).

IMA Coffee
settings_applications Production Plant
IMA Coffee

CA 1 Highlights

1.
Gas flushing unit to avoid coffee oxidation and maintain flavour - low oxygen residue (<1%).
2.
Automatic filter paper splicing system: smooth and without need to reduce speed for maximum efficiency.
3.
Programmable electronic counting system: ensures correct number of pods in stacking unit at all times. Can switch from 1 to 2 pod stacks.
4.
CA1 is a lubrication-free machine for cleaner processing.
5.
Numerous optional groups available for maximum packaging versatility.

Integrated coffee grinder

Simple installation of an integrated coffee grinder onto the machine’s product hopper is a way of completing the production cycle of the CA1 without extending the footprint beyond the space-efficient 4.3 metre length layout.

CA 1 Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA CA 1
Machine speed (coffee pod/minute) Up to 800
Capacity coffee pod Up to 14 grams of coffee
Heatsaled pack capacity Min. 8 – Max. 18 pods per pack
Power required Total installed power 23 kW
Power consumption 18 kW
N.b. Consumption dipends on the thermics group fitted on the machine
Compressed air Duty pressure: 6 bar – Consumption: 200 Nl/min.
Machine net weight Max. 4,500 Kg
Data subject to possible technical modification and not necessarily definitive

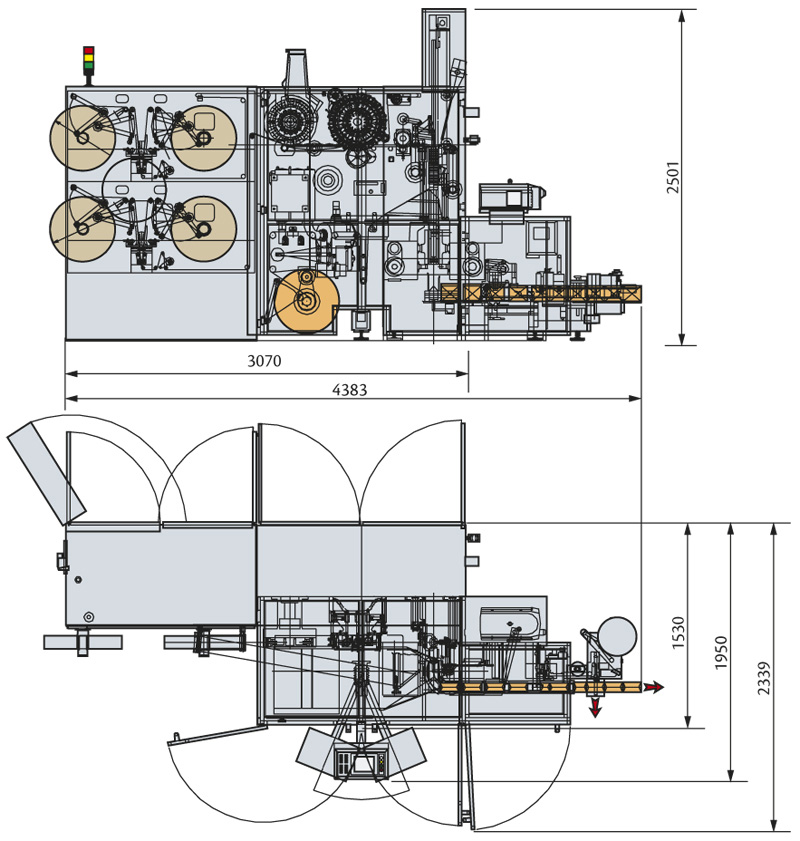

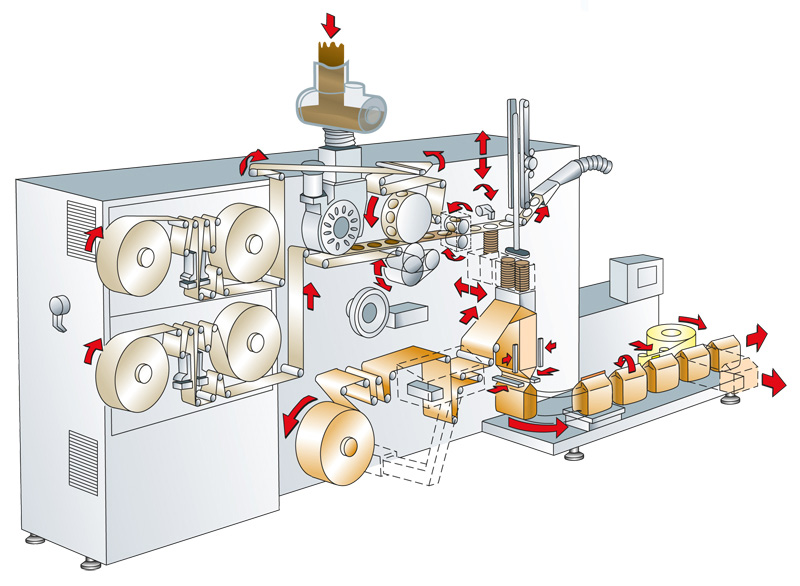

CA 1 Layout CA 1 Layout

CA 1 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Dosing unit
search
Filter forming unit
search
Filter sealing unit
search
Cutting unit
search
Pods stacking
search
Bags forming
