SWM2500-3000
Twin lane wrapping

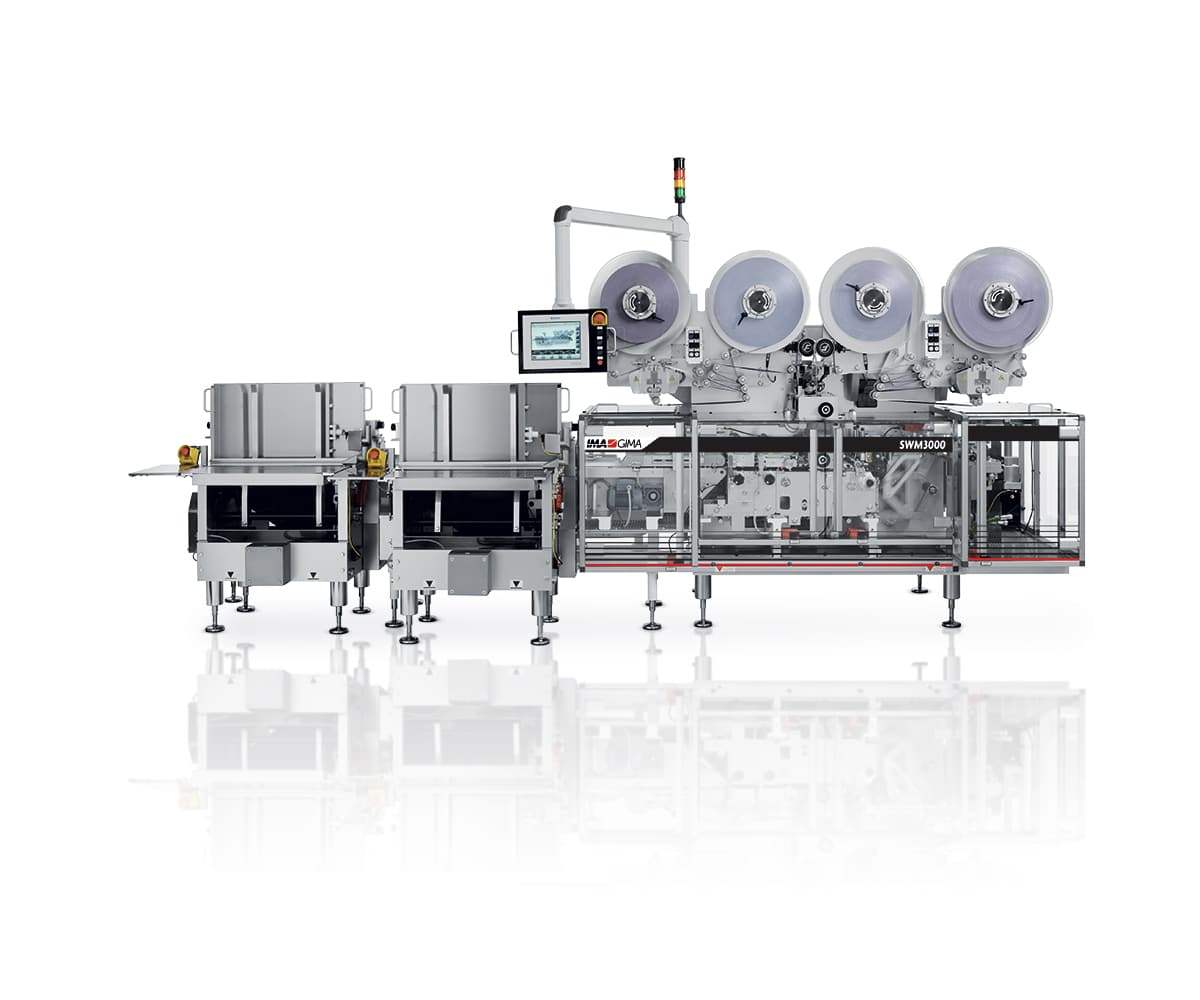

A high-speed, fold wrapping machine for gum slabs, the SWM2500-SWM3000 implements the innovative twin lane configuration combining accuracy, top performance and gentle product handling, as well as the expected reliability of consolidated technology.

A high-speed, fold wrapping machine for gum slabs, the SWM2500-SWM3000 implements the innovative twin lane configuration combining accuracy, top performance and gentle product handling, as well as the expected reliability of consolidated technology.

Zero-tolerance, efficient wrapping

Wrapping up to 3000 slabs/min in single fold wrap style, the SWM2500-SWM3000 is a compact solution for limited production areas with a servomotor configuration enabling excellent flexibility.

A grouping system for single slabs at machine outfeed is capable of collating up to 8 slabs per group before transfer to further packaging stages.

IMA Gima
settings_applications Production Plant
IMA Gima

SWM2500-3000 Highlights

1.
Optimised product handling on twin lane with minimised mechanism wearing given by a linear speed reduction.
2.
Format part design engineered to reduce machine sensibility to product thickness variation.
3.
Rotating cutting device unit for product pre-cut on gum sheet.
4.
Integrated merging unit for single lane wrapped slabs outfeed to downstream equipment.
5.
Automatic film-splicing device and automatic film-tracking device for high quality wrapping.
6.
Plug-in design on main groups for quick size change and maintenance procedures.
  • Technical Data
  • Machine Layout
TECHNICAL DATA SWM2500-3000
SWM2500-3000 Min. Max.
Slab range A 9 15
B 3 6
C 25 45
Gum sheet range A 25 45
B 3 6
C 420 490
SWM2500 Production Up to 2,500 ppm
SWM3000 Prodcution Up to 3,000 ppm
Installed power 9 kW
Operating pressure 6 bar
Maximum air consumption 30 Nl/min.
Weight 2,500 kg

SWM2500-3000 Layout

SWM2500-3000 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Gum sheet magazine
search
Gum pre-cut and transfer unit
search
Single gum separation and transfer unit
search
Gum folding unit
search
Automatic film splicing device
search
Wrapped gum outfeed

Related products

keyboard_arrow_left keyboard_arrow_right
FCW300
FCW300

A horizontal, intermittent motion cartoner for flat blanks, the FCW300 offers superb flexibility in terms of packaging shapes and product sizes. With a large capacity fat blanks magazine, the FCW300 can also be connected to a multiple slabs wrapper.

The many flavours of flexibility.

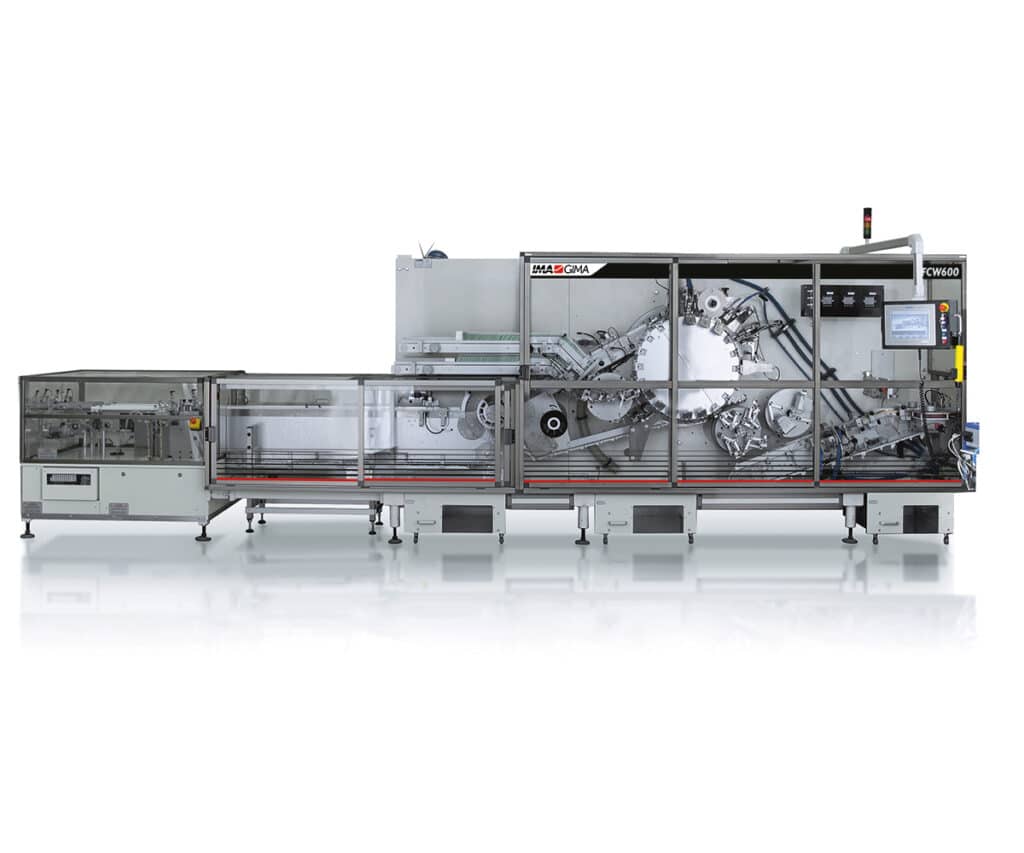

FCW600
