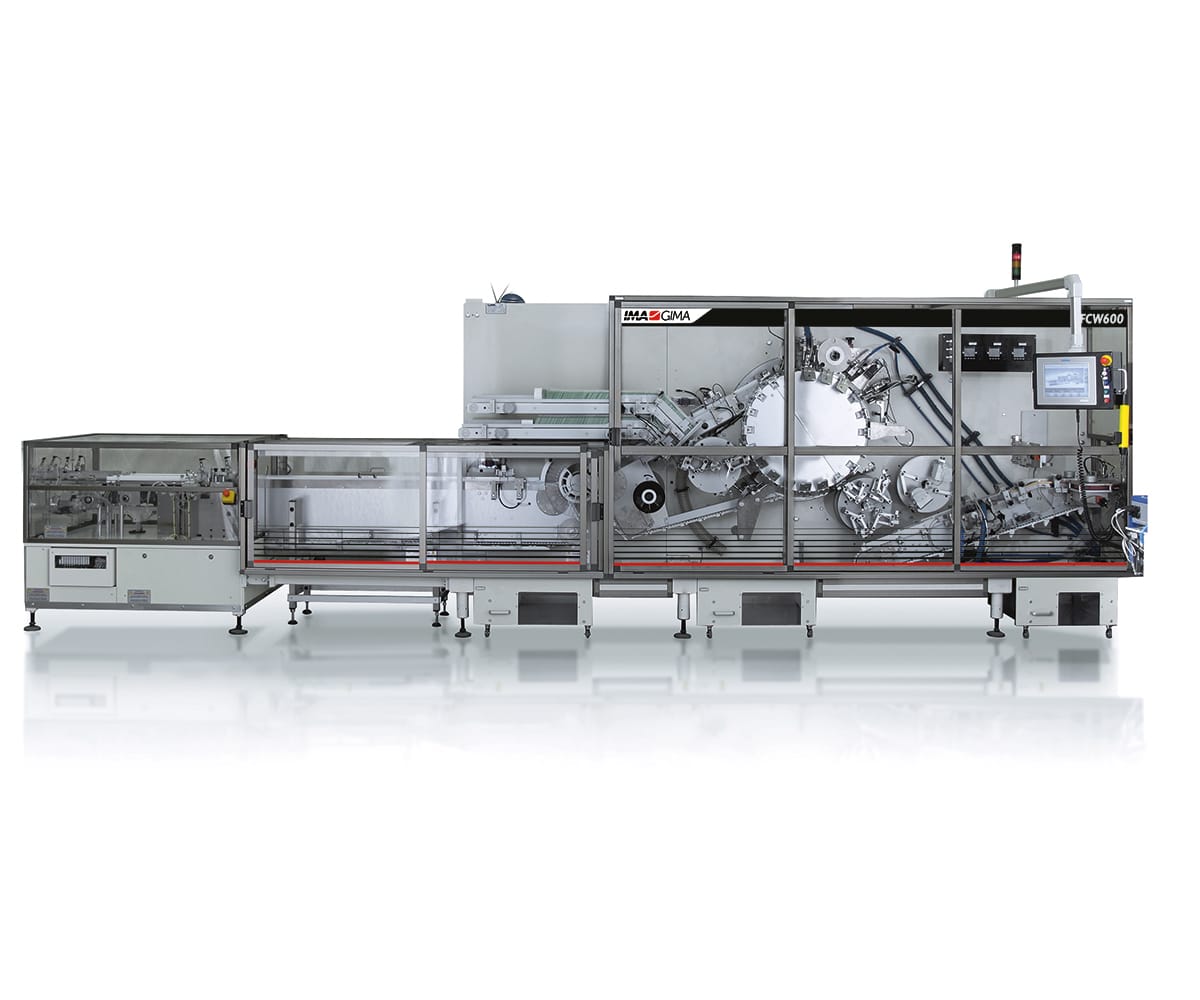

FCW600
Horizontal Cartoning

A horizontal, continuous motion, high-speed rotary cartoner for flat blanks, the FCW600 is the ideal choice for processing new packaging shapes. Ideal for gum slabs, small chocolates and chocolate bars, a wide range of carton box styles is possible.

A horizontal, continuous motion, high-speed rotary cartoner for flat blanks, the FCW600 is the ideal choice for processing new packaging shapes. Ideal for gum slabs, small chocolates and chocolate bars, a wide range of carton box styles is possible.

The ultra-flexible cartoning

Together with lower procurement costs deriving from flat blanks compared to pre-glued cartons, the FCW600 also supports efficient production thanks to a carton magazine ensuring 3 times greater capacity compared to a standard pre-glued type carton magazine.

Processing at speeds of up to 300 ppm, the FCW600 can be equipped with an automatic carton feeding system and is suited to processing new packaging shapes as well as traditional single, double glued and multilayer envelopes.

IMA Gima
settings_applications Production Plant
IMA Gima

FCW600 Highlights

1.
Production speed up to 300 ppm.
2.
Suitable to manage different types of confectionery and chocolate products.
3.
Different styles of carton boxes: single, double glued or multilayer envelope.
4.
Oversize or undersize can be evaluated by our technical staff.
  • Technical Data
  • Machine Layout
TECHNICAL DATA FCW 600
Production Up to 300 cartons/min.
Operating pressure 6 bar
Maximum air consumption 80 Nl/min.
Weight 6,000 Kg

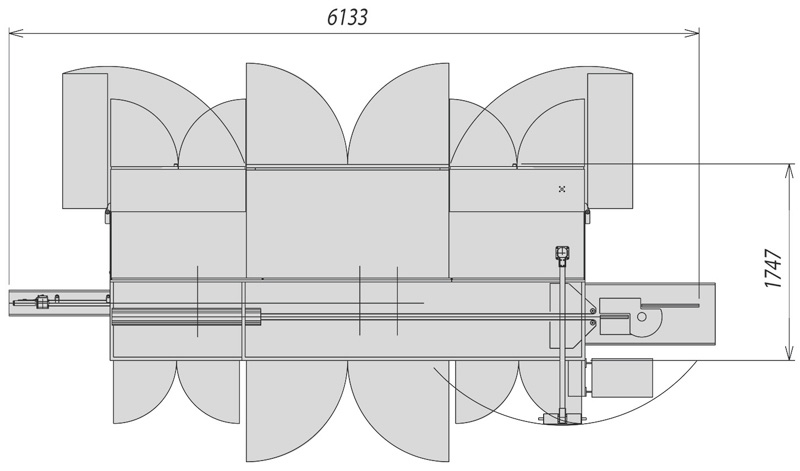

FCW600 Layout FCW600 Layout

FCW600 Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product infeed section
search
Infeed section detail
search
Blanks feeding
search
Blanks transfer
search
Slabs transfer
search
Carton folding
search
Product outfeed
