IC 150C - IC 175C
Intermittent motion cartoner

High flexibility in feeding, thanks to the compatibility with many different feeding systems.

High flexibility in feeding, thanks to the compatibility with many different feeding systems.

Choose your product, choose your speed

The IC Family consists of IC 150C and IC 175C, with different speeds.
This range of machines is multi-purpose and easily customizable.
The machines’ capability is a very important factor because it allows to connect different feeding systems.

IMA Safe
settings_applications Production Plant
IMA-PACKAGING TECHNOLOGY INDIA PVT LTD

IC 150C - IC 175C Highlights

1.
Easy operator access.
2.
Suitable of installation in restricted areas.
3.
Can be fitted with a wide range of feeding units.
4.
Highly compatible with ancillary equipment.
  • Technical Data
  • Machine Layout
TECHNICAL DATA IC 150C
Carton dimensions Optional
Width Min. 28 mm – Max. 92 mm
Height Min. 12 mm – Max. 60 mm 85 mm
Lenght Min. 55 mm – Max. 190 m 150 mm
Width + Height Max. 140 mm 160 mm



IC 175C – TECHNICAL DATA
Carton dimensions
Width Min. 32 mm – Max. 85 mm
Height Min. 12 mm – Max. 60 mm
Lenght Min. 60 mm – Max. 120 mm
Width + Height Min. 52 mm – Max. 140 mm
Production output Up to 150 cartons/min.

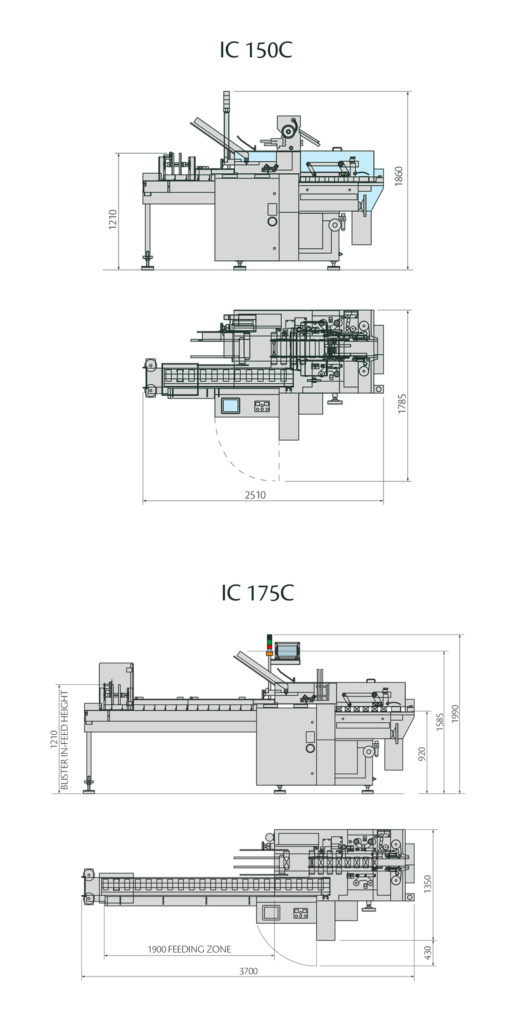

IC 150C - IC 175C Layout

IC 150C - IC 175C Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Feeding area with blister magazine
search
Cartons closing
search
IC 150C - IC 175C general view
search
Leaflet folding unit
