FTB WA Series
Wraparound Traypacker

The FTB WA Series is a range of wraparound forming and filling machines for display boxes. Ensuring total content wraparound with zero tolerance, these compact machines handles a wide range of products, even those with extremely small dimensions.

The FTB WA Series is a range of wraparound forming and filling machines for display boxes. Ensuring total content wraparound with zero tolerance, these compact machines handles a wide range of products, even those with extremely small dimensions.

Space-saving design for diverse tray packing needs

Wraparound display packaging machine from flat blanks, IMA FTB WA Series is a range of fully automatic, wrap-around tray packers, for a wide range of products (cartons, sleeves, tins, stock cubes, etc.) highly appreciated across several market sectors for its key features.

Wraparound technology enables the tray to be formed directly around the bundle with zero tolerance between product and tray. This means a reduction in material consumption, while achieving significant annual savings in logistic and shipping costs. Last but not least, the quality: a tray that fits perfectly around the product looks better on the shelf and facilitates its wrapping, when needed.



nature_people

Sustainability

Shared bus with power exchange for consumption optimization. The motorization is handled with the aim to avoid power waste. Kinetic energy generated during braking is shared and absorbed by other modules of the machine, reducing the overall power consumption. It allows the use of sustainable packaging materials for an eco-friendly package.
IMA Gima
settings_applications Production Plant
IMA Gima

FTB WA Series Highlights

1.
Compact design for a small footprint
2.
Possible to handle products with very small dimensions.
3.
Gentle handling: extremely smooth product handling performed with maximum care and safety.
4.
Flexibility and high efficiency

Two models are available in our FTB WA Series portfolio, FTB569 and FTB514, allowing coverage of the widest box size range and styles.

FTB WA Series Thumbnail
  • Technical Data
  • Machine Layout
FTB WA SERIES TECHNICAL DATA
SERIES MODEL LENGTH (L) WIDTH (W) HEIGHT (H) PRODUCTION SPEED
FTB569 80-200 mm 55-200 mm 12-100 mm Up to 60 ppm
FTB514

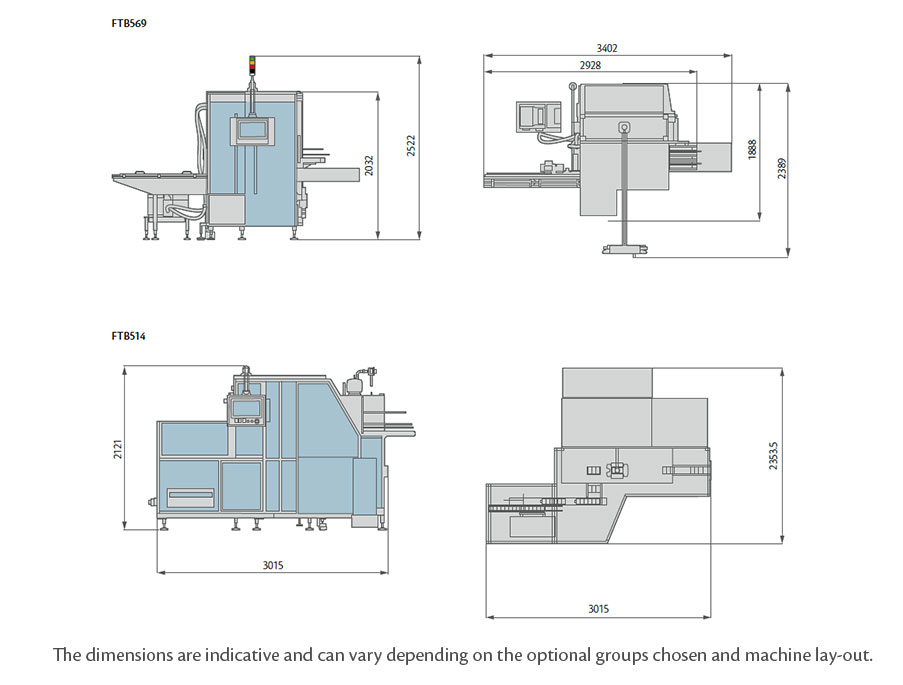

FTB WA Series Layout

FTB WA Series Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Product transfer and tray forming units
search
Machine general overview
search
Side pushing and collating
search
Blanks magazine
search
Blanks picking
search
Forming unit
search
Forming unit
search
Product outfeed
