FTB TL Series
Top Loading Cartoners

Compact monobloc top-loading cartoner series that features the widest box size range and product arrangement. With fully servo-driven movement, the FTB TL Series ensures excellent production efficiency and minimal maintenances requirement.

Compact monobloc top-loading cartoner series that features the widest box size range and product arrangement. With fully servo-driven movement, the FTB TL Series ensures excellent production efficiency and minimal maintenances requirement.

A compact cartoner for countless configurations

Modular design allows maximum flexibility, enabling the processing of many different product types and packaging solutions. Products handled by robotic units are packed into minimally sized boxes in order to significantly reduce material consumption and void-fill techniques.

According to the required machine speed and blanks capacity, the FTB TL Series can be equipped with a single, double or twin double flat blank carton magazine reaching output speeds of up to 160 cartons/minute. The related forming heads and transport system make use of positive display management, granting carton squareness for the complete process.

All the common closure styles can be handled on the FTB TL Series, including tuck-in and glued flaps, performed on standard cartons and corrugated cardboard. Customized solutions are available on demand.



IMA Gima
settings_applications Production Plant
IMA Gima

FTB TL Series Highlights

1.
Compact design which ensures a small footprint
2.
Features to handle standard cartons and corrugated cardboard
3.
According to the required speed, it can be equipped with multiple flat blank magazines
4.
Positive box forming and handling
5.
Modular design to allow multiple feeding system integration
6.
Easy access to the operating areas
  • Technical Data
  • Machine Layout
FTB TL SERIES
SERIES MODEL LENGTH (L) WIDTH (W) HEIGHT (H) PRODUCTION SPEED
FTB608 75-220 mm 50-200 mm 30-150 mm Up to 50 cartons/min – single forming head
FTB577
75-200 mm 50-200 mm 30-150 mm Up to 100 cartons/min – double forming head
FTB575
75-180 mm 50-200 mm 30-150 mm Up to 200 cartons/min  – twin double forming head
SIZE OUT OF RANGE CAN BE HANDLED AFTER BEEN EVALUATED FROM TECHNICAL OFFICE

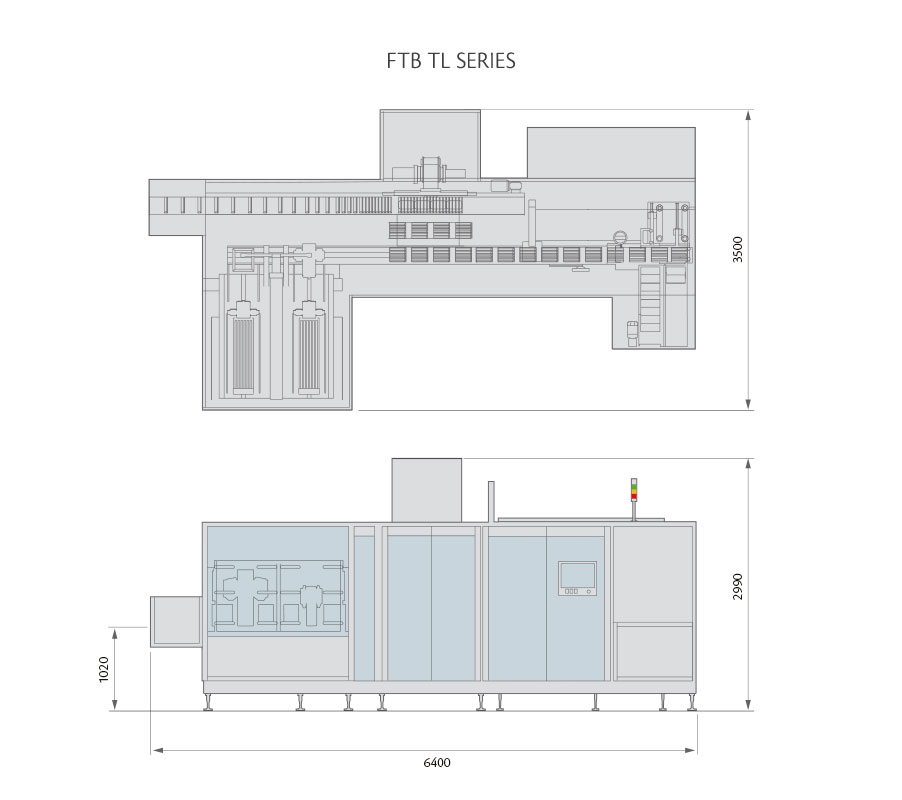

FTB TL Series Layout
