CYCLOPS
Bin tumbler

Versatility and high performance are the hallmarks of IMA Active’s bin tumblers. CYCLOPS ensures efficient mixing thanks to its 15° rotation axis while reducing processing time.

Versatility and high performance are the hallmarks of IMA Active’s bin tumblers. CYCLOPS ensures efficient mixing thanks to its 15° rotation axis while reducing processing time.

Blending at its best.

CYCLOPS is a bin tumbler designed for blending and homogenizing powders and granules for the pharmaceutical, food and chemical industries.

The machine can be installed through-the-wall for top-level GMP configuration and space saving in the processing area.

IMA Active
settings_applications Production Plant
IMA Active

CYCLOPS Highlights

1.
High productivity ensured by hermetically closed IBCs: different products can be blended without the need for cleaning the tumbler.
2.
“Trigon System” to completely block and blend a large series of bins without additional devices.
3.
Dual blending inclination, with the rotation axis inclined also on the vertical plane, for difficult-to-blend products.
4.
Designed for through-the-wall installation to save space in the processing area.
The innovative Trigon System is a universal bin-blocking system with a unique GMP design. This system completely blocks and blends a large series of bins without the need for any additional devices.

Lab Version.

CYCLOPS Lab is a bin tumbler for small batches and laboratory applications. The machine ensures minimum encumbrance and easy moving inside the processing area.

The Bin Lab geometry is proportional to the industrial bin, ensuring good scaling-up.

CYCLOPS Thumbnail
  • Technical Data
  • Machine Layout
TECHNICAL DATA CYCLOPS
Model CYCLOPS LAB CYCLOPS MINI CYCLOPS MIDI CYCLOPS MAXI
A (mm) 1,650 1,800 2,500 3,500
A1 (mm) 2,050 2,800 3,850
A2 (mm)  –  2,250 2,450
B (mm) 850 950 1,100 1,550
C (mm) 1,400 1,000 1,500 2,150
D (mm) 1,300 1,700 2,200
D1 (mm) 1,650 2,100 2,600
Capacity of standard containers (l) 5÷20 30÷250 300÷600 700÷2,000
Recommended filling coefficient 30÷75%
Maximum working load: bin+product (kg) 25 250 600 1,500
Rotation speed (rpm) 4÷20
Power supply 230 V 50 Hz – 1 phase AC 400 V 50 Hz – 3 phase AC
Maximum electric power absorbed (kW) 0.25 8 14 17
Empty machine weight (kg) 300 1,150 3,800 4,300
Full-load machine weight (kg) 325 1,400 4,400 5,800

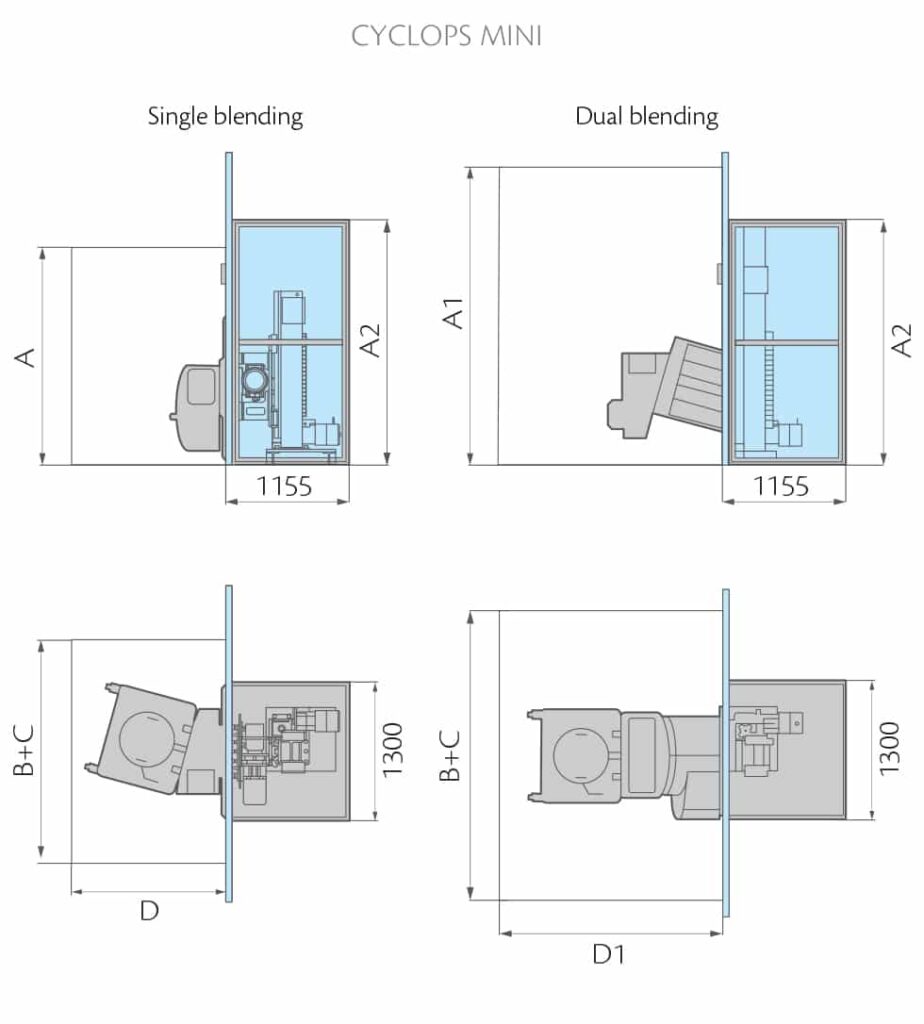

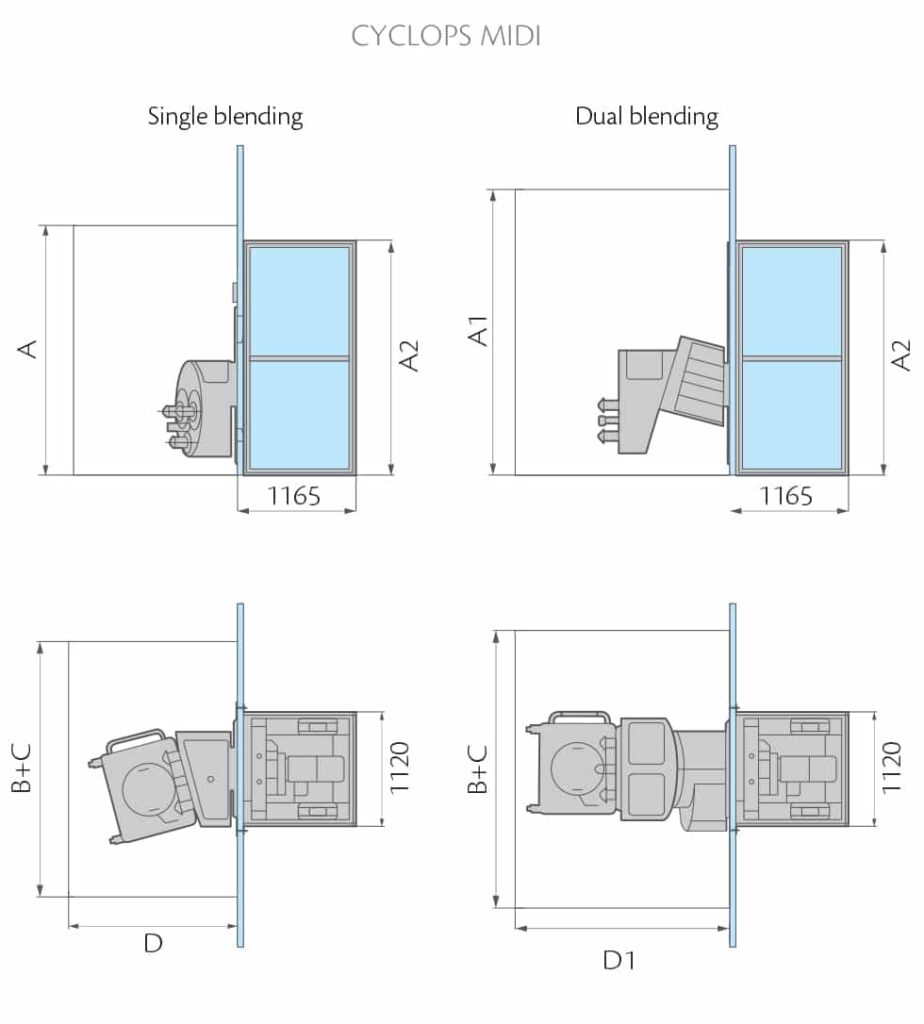

CYCLOPS Layout

CYCLOPS Gallery

keyboard_arrow_left
keyboard_arrow_right
search
Bin blocking
search
Bin connection and blocking
search
Bin presence sensor
search
Dual blending inclination
search
Trigon System
